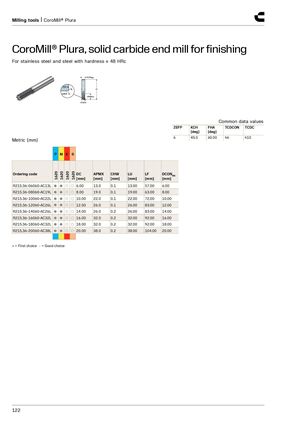

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твердого сплава для чистовой обработки
Для нержавеющей стали и стали твердостью ≤ 48 HRc
Общие значения данных: ZEFP 6, KCH [град] 45.0, FHA [град] 60.00, TCDCON h6, TCDC h10
Метрическая система (мм)
Марки сплава: P M K S — 1620 / 1620 / 1620 / 1620
| Код заказа | P | M | K | S | DC [мм] | APMX [мм] | CHW [мм] | LU [мм] | LF [мм] | DCONMS [мм] |
|---|---|---|---|---|---|---|---|---|---|---|
| R215.36-06060-AC13L | ● | ● | ○ | ○ | 6.00 | 13.0 | 0.1 | 13.00 | 57.00 | 6.00 |
| R215.36-08060-AC19L | ● | ● | ○ | ○ | 8.00 | 19.0 | 0.1 | 19.00 | 63.00 | 8.00 |
| R215.36-10060-AC22L | ● | ● | ○ | ○ | 10.00 | 22.0 | 0.1 | 22.00 | 72.00 | 10.00 |
| R215.36-12060-AC26L | ● | ● | ○ | ○ | 12.00 | 26.0 | 0.1 | 26.00 | 83.00 | 12.00 |
| R215.36-14060-AC26L | ● | ● | ○ | ○ | 14.00 | 26.0 | 0.2 | 26.00 | 83.00 | 14.00 |
| R215.36-16060-AC32L | ● | ● | ○ | ○ | 16.00 | 32.0 | 0.2 | 32.00 | 92.00 | 16.00 |
| R215.36-18060-AC32L | ● | ● | ○ | ○ | 18.00 | 32.0 | 0.2 | 32.00 | 92.00 | 18.00 |
| R215.36-20060-AC38L | ● | ● | ○ | ○ | 20.00 | 38.0 | 0.2 | 38.00 | 104.00 | 20.00 |
● = Первый выбор ○ = Хороший выбор
