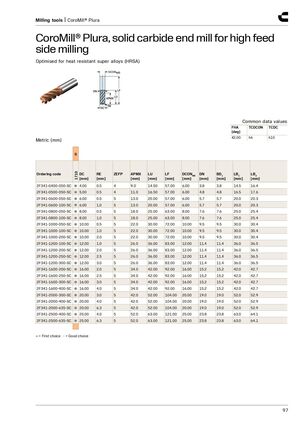

Фрезерный инструмент | CoroMill® Plura
CoroMill® Plura, концевая фреза из твёрдого сплава для торцевого фрезерования с высокой подачей
Оптимизирована для жаропрочных суперсплавов (HRSA).
Общие значения параметров
| FHA [град] | TCDCON | TCDC |
|---|---|---|
| 42.00 | h6 | h10 |
Метрическая система (мм)
S 1710
| Код заказа | DC [мм] | RE [мм] | ZEFP | APMX [мм] | LU [мм] | LF [мм] | DCONMS [мм] | DN [мм] | BD1_ [мм] | LB1_ [мм] | LB2_ [мм] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2F341-0400-050-SC ● | 4.00 | 0.5 | 4 | 9.0 | 14.50 | 57.00 | 6.00 | 3.8 | 3.8 | 14.5 | 16.4 |
| 2F341-0500-050-SC ● | 5.00 | 0.5 | 4 | 11.0 | 16.50 | 57.00 | 6.00 | 4.8 | 4.8 | 16.5 | 17.6 |
| 2F341-0600-050-SC ● | 6.00 | 0.5 | 5 | 13.0 | 20.00 | 57.00 | 6.00 | 5.7 | 5.7 | 20.0 | 20.3 |
| 2F341-0600-100-SC ● | 6.00 | 1.0 | 5 | 13.0 | 20.00 | 57.00 | 6.00 | 5.7 | 5.7 | 20.0 | 20.3 |
| 2F341-0800-050-SC ● | 8.00 | 0.5 | 5 | 18.0 | 25.00 | 63.00 | 8.00 | 7.6 | 7.6 | 25.0 | 25.4 |
| 2F341-0800-100-SC ● | 8.00 | 1.0 | 5 | 18.0 | 25.00 | 63.00 | 8.00 | 7.6 | 7.6 | 25.0 | 25.4 |
| 2F341-1000-050-SC ● | 10.00 | 0.5 | 5 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 | 9.5 | 30.0 | 30.4 |
| 2F341-1000-100-SC ● | 10.00 | 1.0 | 5 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 | 9.5 | 30.0 | 30.4 |
| 2F341-1000-200-SC ● | 10.00 | 2.0 | 5 | 22.0 | 30.00 | 72.00 | 10.00 | 9.5 | 9.5 | 30.0 | 30.4 |
| 2F341-1200-100-SC ● | 12.00 | 1.0 | 5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 11.4 | 36.0 | 36.5 |
| 2F341-1200-200-SC ● | 12.00 | 2.0 | 5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 11.4 | 36.0 | 36.5 |
| 2F341-1200-250-SC ● | 12.00 | 2.5 | 5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 11.4 | 36.0 | 36.5 |
| 2F341-1200-300-SC ● | 12.00 | 3.0 | 5 | 26.0 | 36.00 | 83.00 | 12.00 | 11.4 | 11.4 | 36.0 | 36.5 |
| 2F341-1600-200-SC ● | 16.00 | 2.0 | 5 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 | 15.2 | 42.0 | 42.7 |
| 2F341-1600-250-SC ● | 16.00 | 2.5 | 5 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 | 15.2 | 42.0 | 42.7 |
| 2F341-1600-300-SC ● | 16.00 | 3.0 | 5 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 | 15.2 | 42.0 | 42.7 |
| 2F341-1600-400-SC ● | 16.00 | 4.0 | 5 | 34.0 | 42.00 | 92.00 | 16.00 | 15.2 | 15.2 | 42.0 | 42.7 |
| 2F341-2000-300-SC ● | 20.00 | 3.0 | 5 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 | 19.0 | 52.0 | 52.9 |
| 2F341-2000-400-SC ● | 20.00 | 4.0 | 5 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 | 19.0 | 52.0 | 52.9 |
| 2F341-2000-635-SC ● | 20.00 | 6.3 | 5 | 42.0 | 52.00 | 104.00 | 20.00 | 19.0 | 19.0 | 52.0 | 52.9 |
| 2F341-2500-400-SC ● | 25.00 | 4.0 | 5 | 52.0 | 63.00 | 121.00 | 25.00 | 23.8 | 23.8 | 63.0 | 64.1 |
| 2F341-2500-635-SC ● | 25.00 | 6.3 | 5 | 52.0 | 63.00 | 121.00 | 25.00 | 23.8 | 23.8 | 63.0 | 64.1 |
● = Первый выбор ○ = Хороший выбор
