НАРЕЗАНИЕ РЕЗЬБЫ

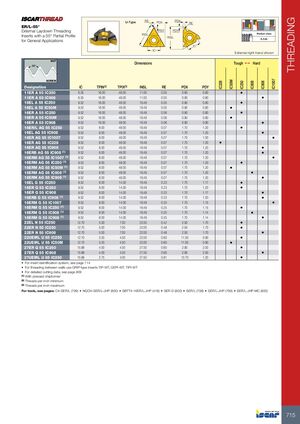

ER/L-55° Пластины наружной нарезки резьбы с частичным профилем 55° для общего применения
U-Type
| Обозначение | IC | TPIN(2) | TPIX(3) | INSL | RE | PDX | PDY | Жесткая 1 | Твердая |
|---|---|---|---|---|---|---|---|---|---|
| 11ER A 55 IC250 | 6,35 | 16,00 | 48,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 11ER A 55 IC908 | 6,35 | 16,00 | 48,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 16EL A 55 IC250 | 9,52 | 16,00 | 48,00 | 16,49 | 0,05 | 0,90 | 0,80 | • | |
| 16EL A 55 IC50M | 9,52 | 16,00 | 48,00 | 16,49 | 0,05 | 0,90 | 0,80 | • | |
| 16ER A 55 IC250 | 9,52 | 16,00 | 48,00 | 16,49 | 0,06 | 0,90 | 0,80 | • | |
| 16ER A 55 IC50M | 9,52 | 16,00 | 48,00 | 16,49 | 0,06 | 0,90 | 0,80 | • | |
| 16ER A 55 IC908 | 9,52 | 16,00 | 48,00 | 16,49 | 0,06 | 0,90 | 0,80 | • | |
| 16ER/L AG 55 IC250 | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16EL AG 55 IC908 | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ER AG 55 IC1007 | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,00 | • | |
| 16ER AG 55 IC228 | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ER AG 55 IC908 | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ERB AG 55 IC908 (1) | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ERM AG 55 IC1007 (1) | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ERM AG 55 IC250 (1) | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ERM AG 55 IC50M (1) | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ERM AG 55 IC808 (1) | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16ERM AG 55 IC908 (1) | 9,52 | 8,00 | 48,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16EL G 55 IC250 | 9,52 | 8,00 | 14,00 | 16,49 | 0,23 | 1,70 | 1,17 | • | |
| 16ER G 55 IC250 | 9,52 | 8,00 | 14,00 | 16,49 | 0,23 | 1,70 | 1,20 | • | |
| 16ER G 55 IC908 | 9,52 | 8,00 | 14,00 | 16,49 | 0,23 | 1,70 | 1,17 | • | |
| 16ERB G 55 IC908 (1) | 9,52 | 8,00 | 14,00 | 16,49 | 0,23 | 1,70 | 1,20 | • | |
| 16ERM G 55 IC1007 | 9,52 | 8,00 | 14,00 | 16,49 | 0,25 | 1,70 | 1,15 | • | |
| 16ERM G 55 IC250 (1) | 9,52 | 8,00 | 14,00 | 16,49 | 0,25 | 1,70 | 1,15 | • | |
| 16ERM G 55 IC808 (1) | 9,52 | 8,00 | 14,00 | 16,49 | 0,25 | 1,70 | 1,14 | • | |
| 16ERM G 55 IC908 (1) | 9,52 | 8,00 | 14,00 | 16,49 | 0,25 | 1,70 | 1,14 | • | |
| 22EL N 55 IC250 | 12,70 | 5,00 | 7,00 | 22,00 | 0,42 | 2,50 | 1,70 | • | |
| 22ER N 55 IC250 | 12,70 | 5,00 | 7,00 | 22,00 | 0,48 | 2,50 | 1,70 | • | |
| 22ER N 55 IC908 | 12,70 | 5,00 | 7,00 | 22,00 | 0,48 | 2,50 | 1,70 | • | |
| 22UEIRL U 55 IC250 | 12,70 | 3,25 | 4,50 | 22,00 | 0,60 | 11,00 | 0,90 | • | |
| 22UEIRL U 55 IC50M | 12,70 | 3,25 | 4,50 | 22,00 | 0,60 | 11,00 | 0,90 | • | |
| 27ER Q 55 IC250 | 15,88 | 4,00 | 4,50 | 27,50 | 0,60 | 2,90 | 2,00 | • | |
| 27ER Q 55 IC908 | 15,88 | 4,00 | 4,50 | 27,50 | 0,60 | 2,90 | 2,00 | • | |
| 27UEIRL U 55 IC250 | 15,88 | 2,75 | 4,00 | 27,50 | 0,81 | 13,70 | 1,20 | • |
• Сведения о системе идентификации пластин см. стр. 714
• Для нарезки резьбы между стенками используйте пластины типа GRIP: TIP-WT, GEPI-WT, TIPI-WT
• Детальные данные резания см. стр. 809
(1) С прессованным формовщиком стружки
(2) Витки на дюйм минимум
(3) Витки на дюйм максимум
Инструменты см. на стр.: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
