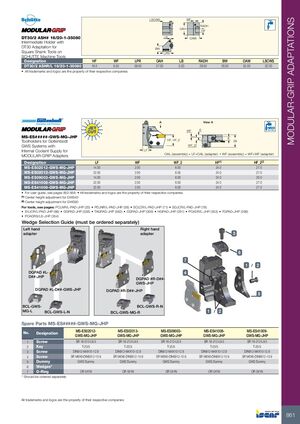

Токарные инструменты Iscar (часть 2) 2026 - страница 155
Навигация
Каталог Iscar полирующие фрезы
Руководство Iscar режущий инструмент в производстве штампов и пресс-форм
Каталог Iscar монолитные сверла 2022
Каталог Iscar расточные системы 2022
Каталог Iscar державки и пластины для нарезания резьбы 2022- nON-ROTATING TOOL HOLDERS
- MATERIALS AND GRADES
- INDEX
- MODULAR-GRIP ADAPTATIONS
- Toolholder Systems for Multi-Spindle Machines
- Features and Benefits
- INDEX CNC Multi-Spindle Machines
- Schütte SCX CNC Multi-Spindle Machines
- Göltenbodt GWS System
- Modular-Grip Adapters with Internal Coolant
- Tool Selection
- INDEX CNC Multi-Spindle Machines
- Schütte SCX CNC Multi-Spindle Machines
- Göltenbodt GWS System
- Technical Information
- INDEX CNC Multi-Spindle Machines
- Schütte SCX CNC Multi-Spindle Machines
- Göltenbodt GWS System
- Toolholder Systems for Turning Lathes
- User Guide
- ISCAR Modular System / Overview
- VDI Tools for STAR Turret
- VDI Tools for Disc-Type Turret
- BMT Tools for DOOSAN / HAAS Machines
- Tools for DMG MORI Machines
- Tools for MAZAK Machines
- Tools with CAMFIX Adaptation
- Tools with HSK Shank
- Tools for MIYANO Machines
- Tools for BIGLIA / EUROTECH Machines
- Tools for NAKAMURA-TOME Machines
- Tools for INDEX ABC Machines
- Tools for TRAUB Machines
- MODULAR-GRIP-XL Adaptation
- Tool Design - Overview
- Tool Selection
- Technical Information
- VDI Tools for Disc-Type Turret
- BMT tools for DOOSAN / HAAS Machines
- VDI Tools for STAR Turret
- Tools for DMG MORI Machines
- Tools for MAZAK Machines
- Tools with CAMFIX Adaptation
- Tools with HSK-T Shank
- Tools for BIGLIA / EUROTECH Machines
- Tools for MIYANO Machines
- Tools for NAKAMURA-TOME Machines
- Tools for OKUMA Machines
- Tools for TSUGAMI Machines
- ISCAR Modular System Intermediate Holders
- Intermediate Holders for Square Type Adapters
- Tools for TRAUB Machines
- Tools for INDEX ABC Machines
- Tool Holders for Square and Round Shank Tools
- CAMFIX Shanks
- HSK Shanks
- Cylindrical Shanks
- MODULAR-GRIP ADAPTATIONS
- Toolholder Systems for Multi-Spindle Machines
- Toolholder Systems for Turning Lathes
- Intermediate Holders for Square Type Adapters (TGAQ/DGAQ)
- ABC MAHDR-#-XL-JHP
- AV-BUSH
- AV FLEX-SLEEVE
- BI## V##-JHP
- BMT## V85-JHP
- C#-ABB
- C#-ADE
- C#-ADES
- C#-ADI
- C#-ASHA
- C#-ASHA-HPMC
- C#-ASHR/L
- C#-ASHR/L-45-HPMC
- C#-ASHR/L-HPMC
- C#-AV-JHP
- C#-DT##/2-L23
- C#-V60-JHP
- DIN69880-HYDRO
- DT##/2 MAHD#-#-XL-JHP
- DT30/2 ADR-##-20-55
- DT30/2 ASH# 16/20-1-35080
- DT30/2 ##L70WN
- GFI ST-ER
- HSK A63TM ABB
- HSK A63TM-ASHN-45-HPMC
- HSK A63TM-ASHR/L-45-HPMC
- HSK A63WH-ASHR/L-2
- HSK A63WH-ASHR/L-3
- HSK A63WH-ASHR/L-45
- HSK A63WH-ASHR/L-HPMC
- HSK A-TM-ASHR/L-1-HPMC
- HSK A-WH ABB
- HSK A-WH-ASHN-45
- HSK A-WH-ASHR/L-1
- HSK-C#
- HSK T ## V60-JHP
- MA##### V##-JHP
- MI## V60-JHP
- MORI## V85-JHP
- MS-ES#####-GWS-MG-JHP
- MS##-##-MG-JHP
- NT## V60-JHP
- OKUMA # V60-JHP
- SC-T (sleeves)
- ST-ER
- ST-ER-MF-D (double-ended)
- ST-ER-MF (mini flat)
- TR45 MAHDR-#-XL-JHP
- TR45TNL MAHDN-R-XL-JHP
- TR TNK36 MAHDL-R-XL-JHP
- TSU-M08 V60-JHP
- V-ASH-MC
- VDI AV-JHP
- VDI-B1/B4A-JHPMC
- VDI-B1/B4AK-JHPMC
- VDI-B2/B3A-JHPMC
- VDI-B2/B3AK-JHPMC
- VDI-C1/C4A-JHPMC
- VDI-C1/C4AK-JHPMC
- VDI-C2/C3A-JHPMC
- VDI-C2/C3AK-JHPMC
- VDI##-P V60-JHP
- VDI#### V##-JHP
- V## MAHD-XL-JHP
- V## MAHD#-#-XL-##-JHP
- V## SQ#-#-D65-ECD
- V## SQ#-#-D82-JHP
- V## V##-L##
МОДУЛЬНЫЕ АДАПТЕРЫ
DT30/2 ASH# 16/20-1-35080 — Промежуточная державка с адаптацией DT30 для черновых резцов на станках SCHUTTE
| Обозначение | HF | WF | LPR | OAH | LB | RADH | BW | OAW | LSCWS |
|---|---|---|---|---|---|---|---|---|---|
| DT30/2 ASHR/L 16/20-1-35080 | 16.0 | 9.50 | 38.00 | 57.00 | 5.00 | 28.50 | 26.50 | 55.00 | 32.00 |
MS-ES#####-GWS-MG-JHP — Державки для систем Göltenbodt GWS с внутренним охлаждением для модульных адаптеров
OAL (сборка) = LF + OAL (адаптер) • WF (сборка) = WF + WF (адаптер)
| Обозначение | LF | WF | WF_2 | HF (1) | HF_2 (2) |
|---|---|---|---|---|---|
| MS-ES02012-GWS-MG-JHP | 14.00 | 2.00 | 6.00 | 24.0 | 27.0 |
| MS-ES02013-GWS-MG-JHP | 22.00 | 2.00 | 6.00 | 24.0 | 27.0 |
| MS-ES09003-GWS-MG-JHP | 14.00 | 2.00 | 6.00 | 24.0 | 30.0 |
| MS-ES41008-GWS-MG-JHP | 22.00 | 2.00 | 6.00 | 24.0 | 27.0 |
| MS-ES41009-GWS-MG-JHP | 22.00 | 2.00 | 6.00 | 24.0 | 27.0 |
(1) Регулировка высоты центра для GWS43
(2) Регулировка высоты центра для GWS60
Руководство по выбору клиньев (заказывать отдельно)
Адаптер левый
- DGPAD #L-D##-JHP / DGPAD #L-D##-GWS-JHP
- BCL-GWS-MG-L / BCL-GWS-L-N
Адаптер правый
- DGPAD #R-D##-GWS-JHP / DGPAD #R-D##-JHP
- BCL-GWS-R-N / BCL-GWS-MG-R
Запасные части MS-ES#####-GWS-MG-JHP
| № | Обозначение | MS-ES02012-GWS-MG-JHP | MS-ES02013-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP |
|---|---|---|---|---|---|---|
| 1 | Винт | SR 16-212-L9×5 | SR 16-212-L9×5 | SR 16-212-L9×5 | SR 16-212-L9×5 | SR 16-212-L9×5 |
| 2 | Ключ | T-20/5 | T-20/5 | T-20/5 | T-20/5 | T-20/5 |
| 3 | Винт | DIN912-M4X10-12×9 | DIN912-M4X10-12×9 | DIN912-M4X10-12×9 | DIN912-M4X10-12×9 | DIN912-M4X10-12×9 |
| 4 | Винт | SR M6X6-DIN6912-10×9 | SR M6X6-DIN6912-10×9 | SR M6X6-DIN6912-10×9 | SR M6X6-DIN6912-10×9 | SR M6X6-DIN6912-10×9 |
| 5 | Заглушка | GWS Dummy | GWS Dummy | GWS Dummy | GWS Dummy | GWS Dummy |
| 6 | Клинья* | — | — | — | — | — |
| 7 | Уплотнение O-Ring | OR 5X1N | OR 5X1N | OR 5X1N | OR 5X1N | OR 5X1N |
* Следует заказывать отдельно
