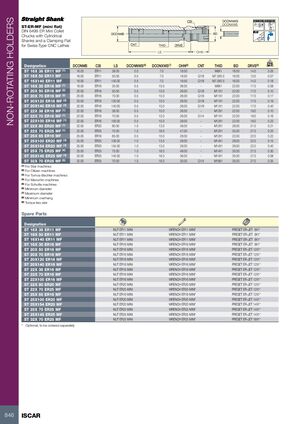

Держатели без вращения
ST-ER-MF (миниатюрный плоский)
Миниатюрные цанговые патроны DIN 6499 ER с цилиндрическими хвостовиками и плоским зажимом для швейцарских токарных станков с ЧПУ
| Обозначение | DCONMS | CSI | LS | DCONNWS(6) | DCONXWS(7) | OHN(8) | CNT | THID | BD | DRVS(9) | Вес, кг |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ST 16X 38 ER11 MF(1) | 16.00 | ER11 | 38.00 | 0.5 | 7.0 | 18.50 | — | M8X1 | 16.00 | 14.0 | 0.05 |
| ST 16X 50 ER11 MF | 16.00 | ER11 | 50.00 | 0.5 | 7.0 | 18.50 | G1/8 | M7.5X0.5 | 16.00 | 13.0 | 0.07 |
| ST 16X140 ER11 MF | 16.00 | ER11 | 140.00 | 0.5 | 7.0 | 18.50 | G1/8 | M7.5X0.5 | 16.00 | 14.0 | 0.18 |
| ST 16X 35 ER16 MF(1) | 16.00 | ER16 | 35.00 | 0.5 | 10.0 | 36.00 | — | M8X1 | 22.00 | 17.0 | 0.08 |
| ST 20X 50 ER16 MF(2) | 20.00 | ER16 | 50.00 | 0.5 | 10.0 | 26.00 | G1/8 | M11X1 | 22.00 | 17.0 | 0.10 |
| ST 20X 70 ER16 MF(2) | 20.00 | ER16 | 70.00 | 0.5 | 10.0 | 26.00 | G1/8 | M11X1 | 22.00 | 17.0 | 0.17 |
| ST 20X120 ER16 MF(2) | 20.00 | ER16 | 120.00 | 0.5 | 10.0 | 26.00 | G1/8 | M11X1 | 22.00 | 17.0 | 0.19 |
| ST 20X140 ER16 MF(2) | 20.00 | ER16 | 140.00 | 0.5 | 10.0 | 26.00 | G1/8 | M11X1 | 22.00 | 17.0 | 0.40 |
| ST 22X 38 ER16 MF(1) | 22.00 | ER16 | 38.00 | 0.5 | 10.0 | 26.00 | — | M12X1 | 22.00 | 19.0 | 0.10 |
| ST 22X 70 ER16 MF(1) | 22.00 | ER16 | 70.00 | 0.5 | 10.0 | 26.00 | G1/4 | M11X1 | 22.00 | 19.0 | 0.16 |
| ST 22X100 ER16 MF(1) | 22.00 | ER16 | 100.00 | 0.5 | 10.0 | 28.00 | — | M12X1 | 22.00 | 19.0 | 0.23 |
| ST 22X 80 ER20 MF(1) | 22.00 | ER20 | 80.00 | 1.0 | 13.0 | 39.00 | — | M12X1 | 28.00 | 21.0 | 0.21 |
| ST 22X 70 ER25 MF(1) | 22.00 | ER25 | 70.00 | 1.0 | 16.0 | 47.00 | — | M12X1 | 35.00 | 27.0 | 0.25 |
| ST 25X 65 ER16 MF | 25.00 | ER16 | 65.00 | 0.5 | 10.0 | 28.00 | — | M12X1 | 22.00 | 22.0 | 0.22 |
| ST 25X100 ER20 MF(3) | 25.00 | ER20 | 100.00 | 1.0 | 13.0 | 28.00 | — | M14X1 | 28.00 | 22.0 | 0.15 |
| ST 25X154 ER20 MF(3) | 25.00 | ER20 | 154.00 | 1.0 | 13.0 | 28.00 | — | M14X1 | 28.00 | 22.0 | 0.40 |
| ST 25X 75 ER25 MF(4) | 25.00 | ER25 | 75.00 | 1.0 | 16.0 | 48.00 | — | M14X1 | 35.00 | 27.0 | 0.30 |
| ST 25X145 ER25 MF(3) | 25.00 | ER25 | 145.00 | 1.0 | 16.0 | 36.00 | — | M14X1 | 35.00 | 27.0 | 0.08 |
| ST 32X 70 ER25 MF(5) | 32.00 | ER25 | 70.00 | 1.0 | 16.0 | 30.00 | G1/4 | M18X1 | 35.00 | 27.0 | 0.35 |
(1) Для станков Star
(2) Для станков Citizen
(3) Для станков Tornos-Bechler
(4) Для станков Manurhin
(5) Для станков Schutte
(6) Минимальный диаметр
(7) Максимальный диаметр
(8) Минимальный вылет
(9) Размер ключа крутящего момента
Запасные части
| Обозначение | Запасные части | ||
|---|---|---|---|
| ST 16X 38 ER11 MF | NUT ER11 MINI | WRENCH ER11 MINI* | PRESET ER-JET 8X1* |
| ST 16X 50 ER11 MF | NUT ER11 MINI | WRENCH ER11 MINI* | PRESET ER-JET 8X1* |
| ST 16X140 ER11 MF | NUT ER11 MINI | WRENCH ER11 MINI* | PRESET ER-JET 8X1* |
| ST 16X 35 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 8X1* |
| ST 20X 50 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 20X 70 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 20X120 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 20X140 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 22X 38 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 22X 70 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 22X100 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 22X 80 ER20 MF | NUT ER20 MINI | WRENCH ER20 MINI* | PRESET ER-JET 12X1* |
| ST 22X 70 ER25 MF | NUT ER25 MINI | WRENCH ER25 MINI* | PRESET ER-JET 12X1* |
| ST 25X 65 ER16 MF | NUT ER16 MINI | WRENCH ER16 MINI* | PRESET ER-JET 12X1* |
| ST 25X100 ER20 MF | NUT ER20 MINI | WRENCH ER20 MINI* | PRESET ER-JET 14X1* |
| ST 25X154 ER20 MF | NUT ER20 MINI | WRENCH ER20 MINI* | PRESET ER-JET 14X1* |
| ST 25X 75 ER25 MF | NUT ER25 MINI | WRENCH ER25 MINI* | PRESET ER-JET 14X1* |
| ST 25X145 ER25 MF | NUT ER25 MINI | WRENCH ER25 MINI* | PRESET ER-JET 14X1* |
| ST 32X 70 ER25 MF | NUT ER25 MINI | WRENCH ER25 MINI* | PRESET ER-JET 18X1* |
* По желанию, заказывать отдельно
