РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МОДУЛЬНЫЕ АДАПТЕРЫ

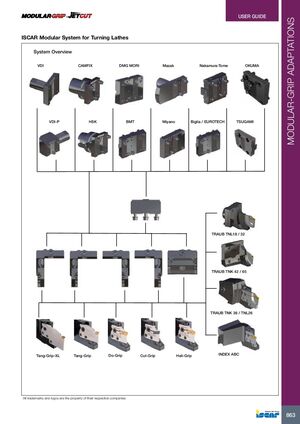

МОДУЛЬНАЯ СИСТЕМА ISCAR ДЛЯ ТОКАРНЫХ СТАНКОВ
Обзор системы
| Семейство адаптации | Тип адаптации 1 | Тип адаптации 2 | Тип адаптации 3 | Тип адаптации 4 | Тип адаптации 5 | Тип адаптации 6 |
|---|---|---|---|---|---|---|
| Стандартные адаптации | VDI | CAMFIX | DMG MORI | Mazak | Nakamura-Tome | OKUMA |
| VDI-P | HSK | BMT | Miyano | Biglia / EUROTECH | TSUGAMI | |
| Специальные адаптации | TRAUB TNL18 / 32 | |||||
| TRAUB TNK 42 / 65 | ||||||
| TRAUB TNK 36 / TNL26 | ||||||
| Системы захвата | Tang-Grip-XL | Tang-Grip | Do-Grip | Cut-Grip | Heli-Grip | INDEX ABC |
