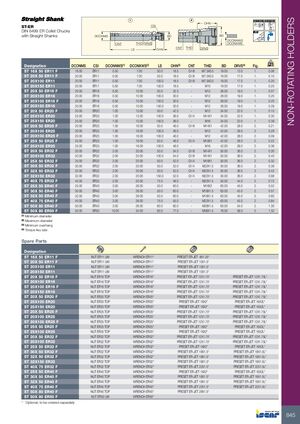

Держатели без вращения
ST-ER
Цанговые патроны DIN 6499 ER с прямыми хвостовиками
| Обозначение | DCONMS | CSI | DCONNWS(1) | DCONXWS(2) | LS | OHN(3) | CNT | THID | BD | DRVS(4) | Вес, кг |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ST 16X 50 ER11 F | 16.00 | ER11 | 0.50 | 7.00 | 50.0 | 18.5 | G1/8 | M7.5X0.5 | 19.00 | 13.0 | 0.06 |
| ST 20X 50 ER11 F | 20.00 | ER11 | 0.50 | 7.00 | 50.0 | 18.5 | G1/8 | M7.5X0.5 | 19.00 | 17.0 | 0.10 |
| ST 20X100 ER11 | 20.00 | ER11 | 0.50 | 7.00 | 100.0 | 18.5 | G1/8 | M7.5X0.5 | 19.00 | 17.0 | 0.20 |
| ST 20X150 ER11 | 20.00 | ER11 | 0.50 | 7.00 | 150.0 | 18.5 | — | M10 | 19.00 | 17.0 | 0.25 |
| ST 20X 50 ER16 F | 20.00 | ER16 | 0.50 | 10.00 | 50.0 | 32.3 | — | M12 | 28.00 | 19.0 | 0.07 |
| ST 20X100 ER16 | 20.00 | ER16 | 0.50 | 10.00 | 100.0 | 30.0 | — | M12 | 28.00 | 19.0 | 0.20 |
| ST 20X100 ER16 F | 20.00 | ER16 | 0.50 | 10.00 | 100.0 | 30.0 | — | M12 | 28.00 | 19.0 | 0.20 |
| ST 20X150 ER16 | 20.00 | ER16 | 0.50 | 10.00 | 150.0 | 30.0 | — | M12 | 28.00 | 19.0 | 0.28 |
| ST 20X 50 ER20 F | 20.00 | ER20 | 1.00 | 13.00 | 50.0 | 42.5 | — | M12 | 34.00 | 22.0 | 0.15 |
| ST 25X100 ER20 | 25.00 | ER20 | 1.00 | 13.00 | 100.0 | 36.0 | G1/4 | M14X1 | 34.00 | 22.0 | 0.30 |
| ST 25X150 ER20 | 25.00 | ER20 | 1.00 | 13.00 | 150.0 | 36.0 | — | M16 | 34.00 | 22.0 | 0.39 |
| ST 20X 50 ER25 F | 20.00 | ER25 | 1.00 | 16.00 | 50.0 | 46.0 | G1/8 | M14X1 | 42.00 | 28.0 | 0.21 |
| ST 20X100 ER25 | 20.00 | ER25 | 1.00 | 16.00 | 100.0 | 46.0 | — | M12 | 42.00 | 28.0 | 0.29 |
| ST 20X100 ER25 F | 20.00 | ER25 | 1.00 | 16.00 | 100.0 | 46.0 | — | M12 | 42.00 | 28.0 | 0.09 |
| ST 25X 50 ER25 F | 25.00 | ER25 | 1.00 | 16.00 | 50.0 | 46.0 | G1/4 | M18X1 | 42.00 | 28.0 | 0.22 |
| ST 25X100 ER25 | 25.00 | ER25 | 1.00 | 16.00 | 100.0 | 46.0 | — | M16 | 42.00 | 28.0 | 0.36 |
| ST 20X 50 ER32 F | 20.00 | ER32 | 2.00 | 20.00 | 50.0 | 54.0 | G1/8 | M14X1 | 50.00 | 36.0 | 0.30 |
| ST 20X100 ER32 | 20.00 | ER32 | 2.00 | 20.00 | 100.0 | 54.0 | G1/8 | M14X1 | 50.00 | 36.0 | 0.40 |
| ST 25X 50 ER32 F | 25.00 | ER32 | 2.00 | 20.00 | 50.0 | 52.0 | G1/4 | M18X1 | 50.00 | 36.0 | 0.32 |
| ST 30X 50 ER32 F | 30.00 | ER32 | 2.00 | 20.00 | 50.0 | 52.0 | G1/4 | M22X1.5 | 50.00 | 36.0 | 0.39 |
| ST 32X 50 ER32 F | 32.00 | ER32 | 2.00 | 20.00 | 50.0 | 52.0 | G1/4 | M22X1.5 | 50.00 | 36.0 | 0.42 |
| ST 32X150 ER32 | 32.00 | ER32 | 2.00 | 20.00 | 150.0 | 52.0 | G1/4 | M22X1.5 | 50.00 | 36.0 | 0.88 |
| ST 40X 75 ER32 F | 40.00 | ER32 | 2.00 | 20.00 | 75.0 | 46.0 | — | M22X1.5 | 50.00 | 44.0 | 0.72 |
| ST 25X 50 ER40 F | 25.00 | ER40 | 3.00 | 26.00 | 50.0 | 60.0 | — | M16X2 | 63.00 | 45.0 | 0.52 |
| ST 30X 50 ER40 F | 30.00 | ER40 | 3.00 | 26.00 | 50.0 | 60.0 | — | M18X1.5 | 63.00 | 45.0 | 0.57 |
| ST 32X 50 ER40 F | 32.00 | ER40 | 3.00 | 26.00 | 50.0 | 60.0 | — | M18X1.5 | 63.00 | 45.0 | 0.60 |
| ST 40X 75 ER40 F | 40.00 | ER40 | 3.00 | 26.00 | 75.0 | 55.0 | — | M22X1.5 | 63.00 | 45.0 | 0.84 |
| ST 50X 80 ER40 F | 50.00 | ER40 | 3.00 | 26.00 | 80.0 | 60.0 | — | M28X1.5 | 63.00 | 54.0 | 1.30 |
| ST 50X 80 ER50 F | 50.00 | ER50 | 10.00 | 34.00 | 80.0 | 77.0 | — | M36X1.5 | 78.00 | 58.0 | 1.32 |
(1) Минимальный диаметр
(2) Максимальный диаметр
(3) Минимальный вылет
(4) Размер ключа крутящего момента
Запасные части
| Обозначение | Запасные части | |||
|---|---|---|---|---|
| ST 16X 50 ER11 F | NUT ER11 UM | WRENCH ER11* | PRESET ER-JET 8X1.25* | |
| ST 20X 50 ER11 F | NUT ER11 UM | WRENCH ER11* | PRESET ER-JET 10X1.5* | |
| ST 20X100 ER11 | NUT ER11 UM | WRENCH ER11* | PRESET ER-JET 10X1.5* | |
| ST 20X150 ER11 | NUT ER11 UM | WRENCH ER11* | PRESET ER-JET 10X1.5* | |
| ST 20X 50 ER16 F | NUT ER16 TOP | WRENCH ER16* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 20X100 ER16 | NUT ER16 TOP | WRENCH ER16* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 20X100 ER16 F | NUT ER16 TOP | WRENCH ER16* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 20X150 ER16 | NUT ER16 TOP | WRENCH ER16* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 20X 50 ER20 F | NUT ER20 TOP | WRENCH ER20* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 25X100 ER20 | NUT ER20 TOP | WRENCH ER20* | PRESET ER-JET 16X2* | PRESET ER-JET 16X2L* |
| ST 25X150 ER20 | NUT ER20 TOP | WRENCH ER20* | PRESET ER-JET 16X2* | PRESET ER-JET 16X2L* |
| ST 20X 50 ER25 F | NUT ER25 TOP | WRENCH ER25* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 20X100 ER25 | NUT ER25 TOP | WRENCH ER25* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 20X100 ER25 F | NUT ER25 TOP | WRENCH ER25* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 25X 50 ER25 F | NUT ER25 TOP | WRENCH ER25* | PRESET ER-JET 16X2* | PRESET ER-JET 16X2L* |
| ST 25X100 ER25 | NUT ER25 TOP | WRENCH ER25* | PRESET ER-JET 16X2* | PRESET ER-JET 16X2L* |
| ST 20X 50 ER32 F | NUT ER32 TOP | WRENCH ER32* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 20X100 ER32 | NUT ER32 TOP | WRENCH ER32* | PRESET ER-JET 12X1.75* | PRESET ER-JET 12X1.75L* |
| ST 25X 50 ER32 F | NUT ER32 TOP | WRENCH ER32* | PRESET ER-JET 16X2* | PRESET ER-JET 16X2L* |
| ST 30X 50 ER32 F | NUT ER32 TOP | WRENCH ER32* | PRESET ER-JET 18X1.5* | PRESET ER-JET 18X1.5L* |
| ST 32X 50 ER32 F | NUT ER32 TOP | WRENCH ER32* | PRESET ER-JET 18X1.5* | PRESET ER-JET 18X1.5L* |
| ST 32X150 ER32 | NUT ER32 TOP | WRENCH ER32* | PRESET ER-JET 18X1.5* | PRESET ER-JET 18X1.5L* |
| ST 40X 75 ER32 F | NUT ER32 TOP | WRENCH ER32* | PRESET ER-JET 22X1.5* | PRESET ER-JET 22X1.5L* |
| ST 25X 50 ER40 F | NUT ER40 TOP | WRENCH ER40* | PRESET ER-JET 16X2* | PRESET ER-JET 16X2L* |
| ST 30X 50 ER40 F | NUT ER40 TOP | WRENCH ER40* | PRESET ER-JET 18X1.5* | PRESET ER-JET 18X1.5L* |
| ST 32X 50 ER40 F | NUT ER40 TOP | WRENCH ER40* | PRESET ER-JET 18X1.5* | PRESET ER-JET 18X1.5L* |
| ST 40X 75 ER40 F | NUT ER40 TOP | WRENCH ER40* | PRESET ER-JET 22X1.5* | PRESET ER-JET 22X1.5L* |
| ST 50X 80 ER40 F | NUT ER40 TOP | WRENCH ER40* | PRESET ER-JET 28X1.5* | |
| ST 50X 80 ER50 F | NUT ER50 UM | WRENCH ER50* | ||
* По желанию, заказывать отдельно
