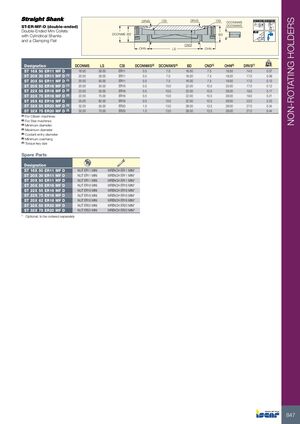

Держатели без вращения
ST-ER-MF-D (двусторонний)
Двусторонние миниатюрные цанги с цилиндрическими хвостовиками и плоским зажимом
| Обозначение | DCONMS | LS | CSI | DCONNWS(3) | DCONXWS(4) | BD | CND(5) | OHN(6) | DRVS(7) | Вес, кг |
|---|---|---|---|---|---|---|---|---|---|---|
| ST 16X 50 ER11 MF D | 16.00 | 50.00 | ER11 | 0.5 | 7.0 | 16.00 | 7.5 | 18.50 | 14.0 | 0.07 |
| ST 20X 30 ER11 MF D(1) | 20.00 | 30.00 | ER11 | 0.5 | 7.0 | 16.00 | 7.5 | 18.50 | 17.0 | 0.09 |
| ST 20X 50 ER11 MF D(1) | 20.00 | 50.00 | ER11 | 0.5 | 7.0 | 16.00 | 7.5 | 18.50 | 17.0 | 0.13 |
| ST 20X 55 ER16 MF D(1) | 20.00 | 55.00 | ER16 | 0.5 | 10.0 | 22.00 | 10.5 | 25.00 | 17.0 | 0.12 |
| ST 22X 55 ER16 MF D(2) | 22.00 | 55.00 | ER16 | 0.5 | 10.0 | 22.00 | 10.5 | 28.00 | 19.0 | 0.17 |
| ST 22X 75 ER16 MF D(2) | 22.00 | 75.00 | ER16 | 0.5 | 10.0 | 22.00 | 10.5 | 28.00 | 19.0 | 0.21 |
| ST 25X 62 ER16 MF D | 25.00 | 62.00 | ER16 | 0.5 | 10.0 | 22.00 | 10.5 | 28.00 | 22.0 | 0.23 |
| ST 32X 55 ER20 MF D(2) | 32.00 | 55.00 | ER20 | 1.0 | 13.0 | 28.00 | 13.5 | 28.00 | 27.0 | 0.34 |
| ST 32X 75 ER20 MF D(2) | 32.00 | 75.00 | ER20 | 1.0 | 13.0 | 28.00 | 13.5 | 28.00 | 27.0 | 0.44 |
(1) Для станков Citizen
(2) Для станков Star
(3) Минимальный диаметр
(4) Максимальный диаметр
(5) Диаметр входа смазочно-охлаждающей жидкости
(6) Минимальный вылет
(7) Размер ключа крутящего момента
Запасные части
| Обозначение | Запасные части | |
|---|---|---|
| ST 16X 50 ER11 MF D | NUT ER11 MINI | WRENCH ER11 MINI* |
| ST 20X 30 ER11 MF D | NUT ER11 MINI | WRENCH ER11 MINI* |
| ST 20X 50 ER11 MF D | NUT ER11 MINI | WRENCH ER11 MINI* |
| ST 20X 55 ER16 MF D | NUT ER16 MINI | WRENCH ER16 MINI* |
| ST 22X 55 ER16 MF D | NUT ER16 MINI | WRENCH ER16 MINI* |
| ST 22X 75 ER16 MF D | NUT ER16 MINI | WRENCH ER16 MINI* |
| ST 25X 62 ER16 MF D | NUT ER16 MINI | WRENCH ER16 MINI* |
| ST 32X 55 ER20 MF D | NUT ER20 MINI | WRENCH ER20 MINI* |
| ST 32X 75 ER20 MF D | NUT ER20 MINI | WRENCH ER20 MINI* |
* По желанию, заказывать отдельно
