РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МОДУЛЬНЫЕ АДАПТЕРЫ

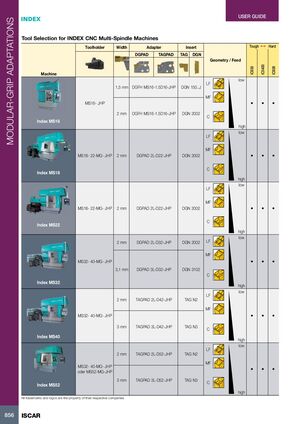

Выбор инструмента для многошпиндельных станков INDEX CNC
| Станок | Державка | Ширина | Адаптер | Модель адаптера | Пластина | Геометрия/Подача | Совместимость |
|---|---|---|---|---|---|---|---|
| Index MS16 | MS16-JHP | 1,5 мм | DGFH | MS16-1.5D16-JHP | DGN 150..J | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 |
| 2 мм | DGFH | MS16-1.5D16-JHP | DGN 2002 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 | ||
| Index MS18 | MS18-22-MG-JHP | 2 мм | DGPAD | DGPAD 2L-D22-JHP | DGN 2002 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 |
| Index MS22 | MS18-22-MG-JHP | 2 мм | DGPAD | DGPAD 2L-D22-JHP | DGN 2002 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 |
| Index MS32 | MS32-40-MG-JHP | 2 мм | DGPAD | DGPAD 2L-D32-JHP | DGN 2002 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 |
| 3,1 мм | DGPAD | DGPAD 3L-D32-JHP | DGN 3102 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 | ||
| Index MS40 | MS32-40-MG-JHP | 2 мм | TAGPAD | TAGPAD 2L-D42-JHP | TAG N2 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 |
| 3 мм | TAGPAD | TAGPAD 3L-D42-JHP | TAG N3 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 | ||
| Index MS52 | MS32-40-MG-JHP или MS52-MG-JHP | 2 мм | TAGPAD | TAGPAD 2L-D52-JHP | TAG N2 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 |
| 3 мм | TAGPAD | TAGPAD 3L-D52-JHP | TAG N3 | LF, MF, C (низко/высоко) | IC5400, IC830, IC808 |
