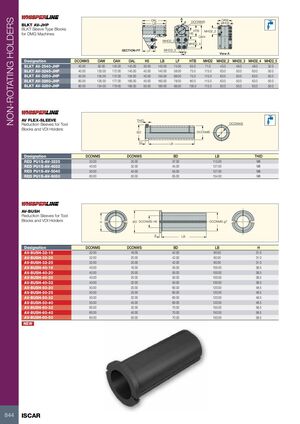

Держатели без вращения
BLKT AV-JHP
Блоки-втулки для станков DMG
| Обозначение | DCONWS | OAW | OAH | OAL | H5 | LB | LF | HTB | MHD2 | MHD2_2 | MHD2_3 | MHD2_4 | MHD2_5 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BLKT AV-2540-JHP | 40.00 | 92.00 | 145.00 | 145.00 | 30.00 | 140.00 | 74.00 | 63.0 | 71.0 | 43.0 | 48.0 | 48.0 | 32.0 |
| BLKT AV-3240-JHP | 40.00 | 135.00 | 172.00 | 145.00 | 40.00 | 140.00 | 58.00 | 75.0 | 115.0 | 63.0 | 50.0 | 63.0 | 50.0 |
| BLKT AV-3250-JHP | 50.00 | 135.00 | 172.00 | 155.00 | 40.00 | 150.00 | 68.00 | 75.0 | 115.0 | 63.0 | 50.0 | 63.0 | 50.0 |
| BLKT AV-3260-JHP | 60.00 | 135.00 | 177.00 | 165.00 | 40.00 | 160.00 | 78.00 | 80.0 | 115.0 | 63.0 | 50.0 | 63.0 | 50.0 |
| BLKT AV-3280-JHP | 80.00 | 134.00 | 179.00 | 185.00 | 50.00 | 180.00 | 98.00 | 100.0 | 115.0 | 63.0 | 50.0 | 63.0 | 50.0 |
AV FLEX-SLEEVE
Гибкие втулки-переходники для блоков инструмента и держателей VDI
| Обозначение | DCONMS | DCONWS | BD | LB | THID |
|---|---|---|---|---|---|
| RED PU1S-AV-3225 | 32.00 | 25.00 | 37.00 | 115.00 | M6 |
| RED PU1S-AV-4032 | 40.00 | 32.00 | 45.00 | 127.00 | M6 |
| RED PU1S-AV-5040 | 50.00 | 40.00 | 55.00 | 127.00 | M6 |
| RED PU1S-AV-6050 | 60.00 | 50.00 | 65.00 | 154.00 | M6 |
AV-BUSH
Втулки-переходники для блоков инструмента и держателей VDI
| Обозначение | DCONMS | DCONWS | BD | LB | H |
|---|---|---|---|---|---|
| AV-BUSH-32-16 | 32.00 | 16.00 | 42.00 | 60.00 | 31.0 |
| AV-BUSH-32-20 | 32.00 | 20.00 | 42.00 | 60.00 | 31.0 |
| AV-BUSH-32-25 | 32.00 | 25.00 | 42.00 | 60.00 | 31.0 |
| AV-BUSH-40-16 | 40.00 | 16.00 | 50.00 | 100.00 | 38.5 |
| AV-BUSH-40-20 | 40.00 | 20.00 | 50.00 | 100.00 | 38.5 |
| AV-BUSH-40-25 | 40.00 | 25.00 | 50.00 | 100.00 | 38.5 |
| AV-BUSH-40-32 | 40.00 | 32.00 | 50.00 | 100.00 | 38.5 |
| AV-BUSH-50-20 | 50.00 | 20.00 | 60.00 | 120.00 | 48.5 |
| AV-BUSH-50-25 | 50.00 | 25.00 | 60.00 | 120.00 | 48.5 |
| AV-BUSH-50-32 | 50.00 | 32.00 | 60.00 | 120.00 | 48.5 |
| AV-BUSH-50-40 | 50.00 | 40.00 | 60.00 | 120.00 | 48.5 |
| AV-BUSH-60-32 | 60.00 | 32.00 | 70.00 | 150.00 | 58.5 |
| AV-BUSH-60-40 | 60.00 | 40.00 | 70.00 | 150.00 | 58.5 |
| AV-BUSH-60-50 | 60.00 | 50.00 | 70.00 | 150.00 | 58.5 |
НОВОЕ
