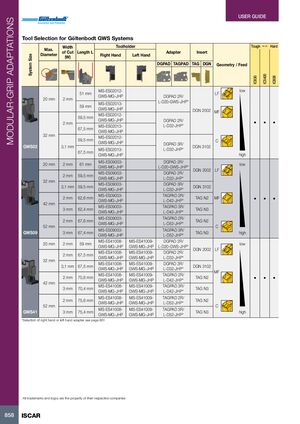

МОДУЛЬНЫЕ АДАПТЕРЫ
Выбор инструмента для систем Göltenbodt GWS
| Размер системы | Макс. диаметр | Ширина реза | Длина L | Державка правая | Державка левая | Адаптер | Модель адаптера | Пластина | Совместимость |
|---|---|---|---|---|---|---|---|---|---|
| GWS02 | 20 мм | 2 мм | 51 мм | MS-ES02012-GWS-MG-JHP | MS-ES02013-GWS-MG-JHP | DGPAD | DGPAD 2R/L-D20-GWS-JHP | DGN 2002 | IC5400, IC830, IC808 |
| 2 мм | 59 мм | MS-ES02012-GWS-MG-JHP | MS-ES02013-GWS-MG-JHP | DGPAD | DGPAD 2R/L-D32-JHP | DGN 2002 | |||
| 2 мм | 59,5 мм | MS-ES02012-GWS-MG-JHP | MS-ES02013-GWS-MG-JHP | DGPAD | DGPAD 2R/L-D32-JHP | DGN 2002 | |||
| 3,1 мм | 67,5 мм | MS-ES02012-GWS-MG-JHP | MS-ES02013-GWS-MG-JHP | DGPAD | DGPAD 3R/L-D32-JHP | DGN 3102 | |||
| 2 мм | 61 мм | MS-ES09003-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | DGPAD | DGPAD 2R/L-D20-GWS-JHP | DGN 2002 | |||
| 2 мм | 59,5 мм | MS-ES09003-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | DGPAD | DGPAD 2R/L-D32-JHP | DGN 2002 | |||
| 3,1 мм | 59,5 мм | MS-ES09003-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | DGPAD | DGPAD 3R/L-D32-JHP | DGN 3102 | |||
| 2 мм | 62,6 мм | MS-ES09003-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | TAGPAD | TAGPAD 2R/L-D42-JHP | TAG N2 | |||
| GWS09 | 32-52 мм | 2 мм | 62,4 мм | MS-ES09003-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | TAGPAD | TAGPAD 3R/L-D42-JHP | TAG N3 | IC5400, IC830, IC808 |
| 2 мм | 67,6 мм | MS-ES09003-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | TAGPAD | TAGPAD 2R/L-D52-JHP | TAG N2 | |||
| 3 мм | 67,4 мм | MS-ES09003-GWS-MG-JHP | MS-ES09003-GWS-MG-JHP | TAGPAD | TAGPAD 3R/L-D52-JHP | TAG N3 | |||
| 2 мм | 59 мм | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP | DGPAD | DGPAD 2R/L-D20-GWS-JHP | DGN 2002 | |||
| 2 мм | 67,5 мм | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP | DGPAD | DGPAD 2R/L-D32-JHP | DGN 2002 | |||
| 3,1 мм | 67,5 мм | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP | DGPAD | DGPAD 3R/L-D32-JHP | DGN 3102 | |||
| 2 мм | 70,6 мм | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP | TAGPAD | TAGPAD 2R/L-D42-JHP | TAG N2 | |||
| 3 мм | 70,4 мм | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP | TAGPAD | TAGPAD 3R/L-D42-JHP | TAG N3 | |||
| GWS41 | 42-52 мм | 2 мм | 75,6 мм | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP | TAGPAD | TAGPAD 2R/L-D52-JHP | TAG N2 | IC5400, IC830, IC808 |
| 3 мм | 75,4 мм | MS-ES41008-GWS-MG-JHP | MS-ES41009-GWS-MG-JHP | TAGPAD | TAGPAD 3R/L-D52-JHP | TAG N3 |
*Выбор правого или левого адаптера смотрите на странице 861
