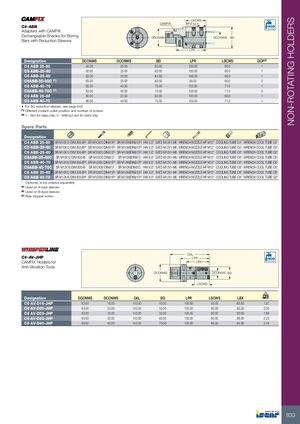

C#-ABB
Адаптеры с CAMFIX, сменные хвостовики для резцов для растачивания с рукавами редукции
| Обозначение | DCONMS | DCONWS | BD | LPR | LSCWS | DCP |
|---|---|---|---|---|---|---|
| C4 ABB 25-60 | 40.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C5 ABB-25-60 | 50.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C6 ABB-25-60 | 63.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C6 ABB-25-60C | 63.00 | 25.00 | 63.00 | 95.00 | 60.0 | 0 |
| C6 ABB-40-70 | 63.00 | 40.00 | 75.00 | 105.00 | 71.0 | 1 |
| C6 ABB-40-70C | 63.00 | 40.00 | 75.00 | 105.00 | 71.0 | 0 |
| C8 ABB 25-60 | 80.00 | 25.00 | 63.00 | 100.00 | 60.0 | 1 |
| C8 ABB 40-72 | 80.00 | 40.00 | 75.00 | 105.00 | 71.0 | 1 |
- Для рукавов редукции SC см. стр. 840
- 1 - Паз для микросхемы данных, 0 - Без паза для микросхемы данных
Запасные части
| Обозначение | Компоненты |
|---|---|
| C4 ABB 25-60 | SR M10X12 DIN1835-B, SR M10X20 DIN915, SR M10X6 DIN913, HW 5.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C4*, WRENCH COOL TUBE C4* |
| C5 ABB-25-60 | SR M10X12 DIN1835-B, SR M10X20 DIN915, SR M10X6 DIN913, HW 5.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C5*, WRENCH COOL TUBE C5* |
| C6 ABB-25-60 | SR M10X12 DIN1835-B, SR M10X20 DIN915, SR M10X6 DIN913, HW 5.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C6*, WRENCH COOL TUBE C6* |
| C6 ABB-25-60C | SR M10X12 DIN1835-B, SR M10X20 DIN915*, SR M10X6 DIN913, HW 6.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C6*, WRENCH COOL TUBE C6* |
| C6 ABB-40-70 | SR M12X16 DIN1835-B, SR M12X30 DIN915, SR M10X6 DIN913, HW 6.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C6*, WRENCH COOL TUBE C6* |
| C6 ABB-40-70C | SR M12X16 DIN1835-B, SR M12X30 DIN915*, SR M10X6 DIN913, HW 6.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C6*, WRENCH COOL TUBE C6* |
| C8 ABB 25-60 | SR M10X12 DIN1835-B, SR M10X20 DIN915, SR M10X6 DIN913, HW 5.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C8*, WRENCH COOL TUBE C8* |
| C8 ABB 40-72 | SR M12X16 DIN1835-B, SR M12X30 DIN915, SR M10X6 DIN913, HW 6.0*, SATZ-M12X1-M6, WRENCH NOZZLE HP M12*, COOLING TUBE C8*, WRENCH COOL TUBE C8* |
* Опционально, заказывается отдельно
C#-AV-JHP
Державки CAMFIX для инструмента с виброподавлением
| Обозначение | DCONMS | DCONWS | OAL | BD | LPR | LSCWS | LBX | кг |
|---|---|---|---|---|---|---|---|---|
| C6 AV-D16-JHP | 63.00 | 16.00 | 143.00 | 45.00 | 105.00 | 55.00 | 83.00 | 1.57 |
| C6 AV-D20-JHP | 63.00 | 20.00 | 143.00 | 55.00 | 105.00 | 80.00 | 83.00 | 2.00 |
| C6 AV-D25-JHP | 63.00 | 25.00 | 143.00 | 55.00 | 105.00 | 80.00 | 83.00 | 1.89 |
| C6 AV-D32-JHP | 63.00 | 32.00 | 143.00 | 65.00 | 105.00 | 85.00 | 66.60 | 2.23 |
| C6 AV-D40-JHP | 63.00 | 40.00 | 143.00 | 75.00 | 105.00 | 85.00 | 64.00 | 2.49 |
