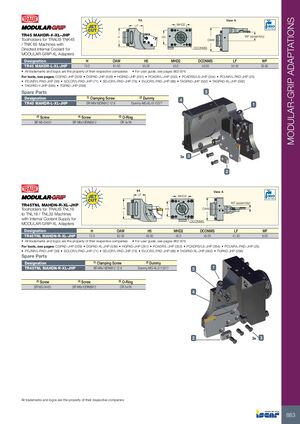

Адаптации MODULAR-GRIP
TR45 MAHDR-#-XL-JHP
Державки для станков TRAUB TNK45 / TNK 65 с направленной внутренней подачей СОЖ для адаптеров MODULAR-GRIP-XL
| Обозначение | H | OAW | H5 | MHD2 | DCONMS | LF | WF |
|---|---|---|---|---|---|---|---|
| TR45 MAHDR-L-XL-JHP | 72.0 | 91.50 | 55.00 | 45.0 | 45.00 | 54.40 | 33.50 |
Руководство см. на стр. 862–876
Инструменты см. на стр.: CGPAD-JHP (309) • DGPAD-JHP (538) • HGPAD-JHP (291) • PCADR/L-JHP (353) • PCADRS/LS-JHP (354) • PCLNR/L-PAD-JHP (25) • PDJNR/L-PAD-JHP (38) • SCLCR/L-PAD-JHP (71) • SDJCR/L-PAD-JHP (78) • SVJCR/L-PAD-JHP (88) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGPAD-JHP (298)
Запасные части
| Обозначение | (1) Зажимной винт | (2) Пустышка | (3) Винт | (4) Винт | (5) O-кольцо |
|---|---|---|---|---|---|
| TR45 MAHDR-L-XL-JHP | SR M6x16DIN912 12.9 | Dummy-MG-XL-5113377 | SR M5-04451 | SR M6x10DIN6912 | OR 5x1N |
TR45TNL MAHDN-R-XL-JHP
Державки для станков TRAUB TNL16 до TNL18 / TNL32 с внутренней подачей СОЖ для адаптеров MODULAR-GRIP-XL
| Обозначение | H | OAW | H5 | MHD2 | DCONMS | LF | WF |
|---|---|---|---|---|---|---|---|
| TR45TNL MAHDN-R-XL-JHP | 72.0 | 82.00 | 55.00 | 45.0 | 45.00 | 41.30 | 6.00 |
Руководство см. на стр. 862–876
Инструменты см. на стр.: CGPAD-JHP (309) • DGPAD-XL-JHP (538) • HGPAD-JHP (291) • PCADR/L-JHP (353) • PCADRS/LS-JHP (354) • PCLNR/L-PAD-JHP (25) • PDJNR/L-PAD-JHP (38) • SCLCR/L-PAD-JHP (71) • SDJCR/L-PAD-JHP (78) • SVJCR/L-PAD-JHP (88) • TAGPAD-XL-JHP (562) • TGPAD-JHP (298)
Запасные части
| Обозначение | (1) Зажимной винт | (2) Пустышка | (3) Винт | (4) Винт | (5) O-кольцо |
|---|---|---|---|---|---|
| TR45TNL MAHDN-R-XL-JHP | SR M6x16DIN912 12.9 | Dummy-MG-XL-5113377 | SR M5-04451 | SR M6x10DIN6912 | OR 5x1N |
