Адаптации MODULAR-GRIP

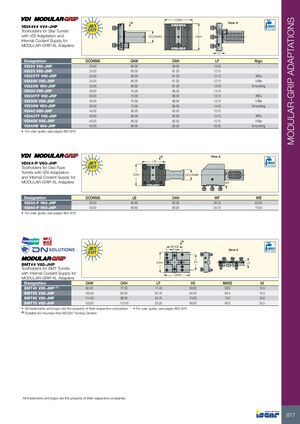

Державки для звездообразных барабанов с адаптацией VDI и внутренней подачей охлаждающей жидкости для адаптеров MODULAR-GRIP-XL
| Обозначение | DCONMS | OAW | OAH | LF | Align. |
|---|---|---|---|---|---|
| VDI20 V60-JHP | 20.00 | 60.00 | 56.00 | 13.50 | — |
| VDI25 V60-JHP | 25.00 | 60.00 | 61.20 | 12.75 | — |
| VDI25TF V60-JHP | 25.00 | 60.00 | 61.20 | 12.75 | TriFix |
| VDI25V V60-JHP | 25.00 | 60.00 | 61.20 | 12.75 | V-Bar |
| VDI25W V60-JHP | 25.00 | 60.00 | 61.20 | 13.40 | Зубья W |
| VDI30 V60-JHP | 30.00 | 70.00 | 66.00 | 13.75 | — |
| VDI30TF V60-JHP | 30.00 | 70.00 | 66.00 | 13.75 | TriFix |
| VDI30V V60-JHP | 30.00 | 70.00 | 66.00 | 13.75 | V-Bar |
| VDI30W V60-JHP | 30.00 | 70.00 | 66.00 | 14.40 | Зубья W |
| VDI40 V85-JHP | 40.00 | 85.00 | 82.00 | 15.75 | — |
| VDI40TF V85-JHP | 40.00 | 85.00 | 82.00 | 15.75 | TriFix |
| VDI40V V85-JHP | 40.00 | 85.00 | 82.00 | 15.75 | V-Bar |
| VDI40W V85-JHP | 40.00 | 85.00 | 82.00 | 16.35 | Зубья W |
Руководство пользователя см. на страницах 862–876
Державки для дискообразных барабанов с адаптацией VDI и внутренней подачей охлаждающей жидкости для адаптеров MODULAR-GRIP-XL
| Обозначение | DCONMS | LB | OAH | WF | WB |
|---|---|---|---|---|---|
| VDI30-P V60-JHP | 30.00 | 65.60 | 62.00 | 30.75 | 63.00 |
| VDI40-P V60-JHP | 40.00 | 65.60 | 80.00 | 34.75 | 70.50 |
Руководство пользователя см. на страницах 862–876
Державки для барабанов BMT с внутренней подачей охлаждающей жидкости для адаптеров MODULAR-GRIP-XL
| Обозначение | OAW | OAH | LF | H5 | MHD2 | h3 |
|---|---|---|---|---|---|---|
| BMT45 V85-JHP | 95.00 | 77.00 | 17.45 | 58.00 | 58.0 | 15.0 |
| BMT55 V85-JHP | 103.50 | 84.00 | 20.75 | 64.00 | 64.0 | 15.0 |
| BMT65 V85-JHP | 114.50 | 98.00 | 25.75 | 73.00 | 70.0 | 18.0 |
| BMT75 V85-JHP | 120.00 | 112.00 | 29.25 | 90.00 | 90.0 | 25.0 |
Подходит для токарных центров Hyundai-Wia SE2200
Руководство пользователя см. на страницах 862–876
