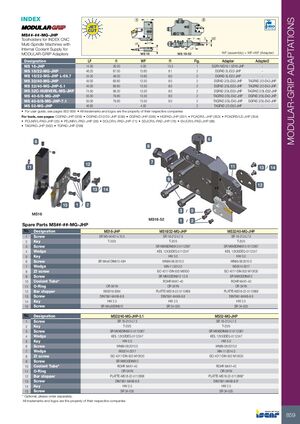

МОДУЛЬНЫЕ АДАПТЕРЫ
Державки для многошпиндельных станков INDEX CNC с внутренним охлаждением для модульных адаптеров
| Обозначение | LF | l1 | WF | f1 | Рис. | Адаптер | Адаптер 2 |
|---|---|---|---|---|---|---|---|
| MS 16-JHP | 14.00 | 26.00 | 5.00 | 15.5 | 1 | DGFH MS16-1.5D16-JHP | — |
| MS 18/22-MG-JHP | 46.20 | 67.00 | 13.60 | 8.1 | 2 | DGPAD 2L-D22-JHP | — |
| MS 18/22-MG-JHP L-69.7 | 24.20 | 48.00 | 13.60 | 8.0 | 2 | DGPAD 2L-D22-JHP | — |
| MS 32/40-MG-JHP | 45.00 | 69.80 | 13.50 | 8.0 | 2 | DGPAD 2/3L-D32-JHP | TAGPAD 2/3-D42-JHP |
| MS 32/40-MG-JHP-5.1 | 45.00 | 69.80 | 13.50 | 8.0 | 2 | DGPAD 2/3L-D32-JHP | TAGPAD 2/3-D42-JHP |
| MS 32C-HUBVERL-MG-JHP | 74.50 | 99.30 | 13.50 | 8.0 | 2 | DGPAD 2/3L-D32-JHP | TAGPAD 2/3L-D32-JHP |
| MS 40-6/8-MG-JHP | 55.00 | 79.80 | 13.50 | 8.0 | 2 | TAGPAD 2/3L-D42-JHP | DGPAD 2/3L-D42-JHP |
| MS 40-6/8-MG-JHP-7.1 | 55.00 | 79.80 | 13.50 | 8.0 | 2 | TAGPAD 2/3L-D42-JHP | DGPAD 2/3L-D42-JHP |
| MS 52-MG-JHP | 46.60 | — | 4.50 | — | 2 | TAGPAD 2/3-D52-JHP | — |
WF (сборка) = WF + WF (адаптер)
Запасные части MS##-##-MG-JHP
| № | Обозначение | MS16-JHP | MS18/22-MG-JHP | MS32/40-MG-JHP |
|---|---|---|---|---|
| 1 | Винт | SR M5-04451-L10×5 | SR 16-212-L7×5 | SR 16-212-L7×5 |
| 2 | Ключ | T-20/5 | T-20/5 | T-20/5 |
| 3 | Винт | — | SR M6X6DIN6912-5112367 | SR M6X6DIN6912-5112367 |
| 4 | Клин | — | KEIL 12X30DEG-5112247 | KEIL 12X30DEG-5112247 |
| 5 | Ключ | — | HW 5×0 | HW 5×0 |
| 6 | Винт | SR M4x6 DIN913 45H | WN99-08×0010×0 | WN99-08×0010×0 |
| 7 | Клин | — | WN-11×0012×0 | W00014×0017 |
| 8 | Винт ZI | — | ISO 4017-DIN 933 M8X30 | ISO 4017-DIN 933 M10X30 |
| 9 | Винт | — | SR M6X20DIN912 12×9 | SR M8X30DIN912 |
| 10 | Трубка охлаждения* | — | ROHR M4X1-40 | ROHR M4X1-40 |
| 11 | Уплотнение O-Ring | OR 5X1N | OR 5X1N | OR 5X1N |
| 12 | Стопор базы | W00019×0064 | PLATTE-MS18-22-5112868 | PLATTE-MS18-22-5112868 |
| 13 | Винт | DIN7991-M4X8-8×8 | DIN7991-M4X8-8×8 | DIN7991-M4X8-8×8 |
| 14 | Ключ | HW 2×5 | HW 2×5 | HW 2×5 |
| 15 | Винт | SR M4x30DIN912 | SR 34-535 | SR 34-535 |
| № | Обозначение | MS32/40-MG-JHP-5.1 | MS52-MG-JHP |
|---|---|---|---|
| 1 | Винт | SR 16-212-L7×5 | SR 16-212-L7×5 |
| 2 | Ключ | T-20/5 | T-20/5 |
| 3 | Винт | SR M6X6DIN6912-5112367 | SR M6X6DIN6912-5112367 |
| 4 | Клин | KEIL 12X30DEG-5112247 | KEIL 12X30DEG-5112247 |
| 5 | Ключ | HW 5×0 | HW 5×0 |
| 6 | Винт | WN99-08×0010×0 | WN99-08×0010×0 |
| 7 | Клин | W00014×0017 | WN-11×0014×0 |
| 8 | Винт ZI | ISO 4017-DIN 933 M10X30 | ISO 4017-DIN 933 M10X30 |
| 9 | Винт | SR M8X30DIN912 | — |
| 10 | Трубка охлаждения* | ROHR M4X1-40 | ROHR M4X1-40 |
| 11 | Уплотнение O-Ring | OR 5X1N | OR 5X1N |
| 12 | Стопор базы | PLATTE-MS18-22-5112868 | PLATTE-MS18-22-5112868* |
| 13 | Винт | DIN7991-M4X8-8×8 | DIN7991-M4X8-8×8* |
| 14 | Ключ | HW 2×5 | HW 2×5 |
| 15 | Винт | SR 34-535 | SR 34-535 |
* Опционально, заказывать отдельно
