РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
МОДУЛЬНЫЕ АДАПТЕРЫ

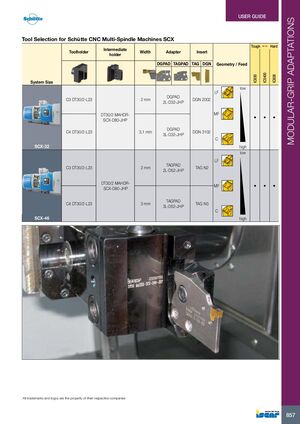

Выбор инструмента для многошпиндельных станков Schütte CNC SCX
| Размер системы | Державка | Промежуточная державка | Ширина | Адаптер | Модель адаптера | Пластина | Совместимость |
|---|---|---|---|---|---|---|---|
| SCX-32 | DT30/2-L23 | DT30/2 MAHDR-SCX-D80-JHP | 2 мм | DGPAD | DGPAD 2L-D32-JHP | DGN 2002 | IC5400, IC830, IC808 |
| 3,1 мм | DGPAD | DGPAD 3L-D32-JHP | DGN 3102 | ||||
| C4 DT30/2-L23 | DT30/2 MAHDR-SCX-D80-JHP | 2 мм | TAGPAD | TAGPAD 2L-D52-JHP | TAG N2 | IC5400, IC830, IC808 | |
| 3 мм | TAGPAD | TAGPAD 3L-D52-JHP | TAG N3 | ||||
| SCX-46 | C3 DT30/2-L23 | DT30/2 MAHDR-SCX-D80-JHP | 2 мм | DGPAD | DGPAD 2L-D32-JHP | DGN 2002 | IC5400, IC830, IC808 |
| 3,1 мм | DGPAD | DGPAD 3L-D32-JHP | DGN 3102 | ||||
| C4 DT30/2-L23 | DT30/2 MAHDR-SCX-D80-JHP | 2 мм | TAGPAD | TAGPAD 2L-D52-JHP | TAG N2 | IC5400, IC830, IC808 | |
| 3 мм | TAGPAD | TAGPAD 3L-D52-JHP | TAG N3 |
