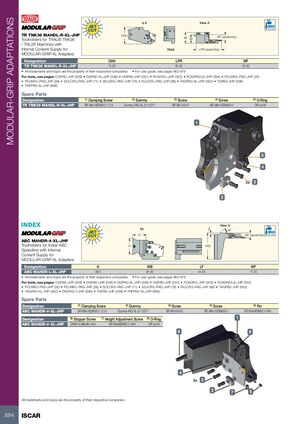

Адаптации MODULAR-GRIP
TR TNK36 MAHDL-R-XL-JHP
Державки для станков TRAUB TNK36 / TNL26 с внутренней подачей СОЖ для адаптеров MODULAR-GRIP-XL
| Обозначение | OAH | LPR | WF |
|---|---|---|---|
| TR TNK36 MAHDL-R-XL-JHP | 74.00 | 91.50 | 24.50 |
Руководство см. на стр. 862–876
Инструменты см. на стр.: CGPAD-JHP (309) • DGPAD-XL-JHP (538) • HGPAD-JHP (291) • PCADR/L-JHP (353) • PCADRS/LS-JHP (354) • PCLNR/L-PAD-JHP (25) • PDJNR/L-PAD-JHP (38) • SCLCR/L-PAD-JHP (71) • SDJCR/L-PAD-JHP (78) • SVJCR/L-PAD-JHP (88) • TAGPAD-XL-JHP (562) • TGPAD-JHP (298) • TNFPAD-XL-JHP (668)
Запасные части
| Обозначение | (1) Зажимной винт | (2) Пустышка | (3) Винт | (4) Винт | (5) O-кольцо |
|---|---|---|---|---|---|
| TR TNK36 MAHDL-R-XL-JHP | SR M6x16DIN912 12.9 | Dummy-MG-XL-5113377 | SR M5-04451 | SR M6x10DIN6912 | OR 5x1N |
ABC MAHDR-#-XL-JHP
Державки для станков Index ABC Speedline с внутренней подачей СОЖ для адаптеров MODULAR-GRIP-XL
| Обозначение | H | WB | LF | WF |
|---|---|---|---|---|
| ABC MAHDR-L-XL-JHP | 56.0 | 91.50 | 44.55 | 17.00 |
Руководство см. на стр. 862–876
Инструменты см. на стр.: CGPAD-JHP (309) • DGPAD-JHP (538) • DGPAD-XL-JHP (538) • HGPAD-JHP (291) • PCADR/L-JHP (353) • PCADRS/LS-JHP (354) • PCLNR/L-PAD-JHP (25) • PDJNR/L-PAD-JHP (38) • SCLCR/L-PAD-JHP (71) • SDJCR/L-PAD-JHP (78) • SVJCR/L-PAD-JHP (88) • TAGPAD-JHP (562) • TAGPAD-XL-JHP (562) • TAGPAD-Y-JHP (584) • TGPAD-JHP (298) • TNFPAD-XL-JHP (668)
Запасные части
| Обозначение | (1) Зажимной винт | (2) Пустышка | (3) Винт | (4) Винт | (5) Штифт |
|---|---|---|---|---|---|
| ABC MAHDR-#-XL-JHP | SR M6x16DIN912 12.9 | Dummy-MG-XL-5113377 | SR M5-04451 | SR M6x10DIN6912 | SR M4x5DIN913 45H |
| Обозначение | (6) Стопорный винт | (7) Винт регулировки высоты | (8) O-кольцо |
|---|---|---|---|
| ABC MAHDR-#-XL-JHP | DIN913-M6x80-45H | SR M5x8DIN913 45H | OR 5x1N |
