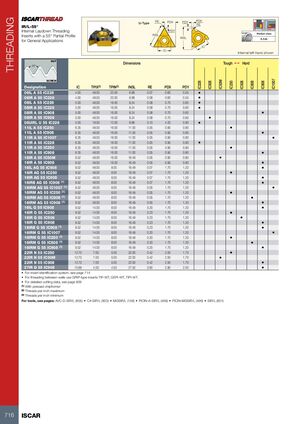

НАРЕЗАНИЕ РЕЗЬБЫ
IR/L-55° Пластины внутренней нарезки резьбы с частичным профилем 55° для общего применения
| Обозначение | IC | TPIX(2) | TPIN(3) | INSL | RE | PDX | PDY | Жесткая 1 | Твердая |
|---|---|---|---|---|---|---|---|---|---|
| 06IL A 55 IC228 | 4,00 | 48,00 | 20,00 | 6,88 | 0,07 | 0,60 | 0,55 | • | |
| 06IR A 55 IC228 | 4,00 | 48,00 | 20,00 | 6,88 | 0,08 | 0,60 | 0,55 | • | |
| 08IL A 55 IC228 | 5,00 | 48,00 | 16,00 | 8,24 | 0,08 | 0,70 | 0,60 | • | |
| 08IR A 55 IC228 | 5,00 | 48,00 | 16,00 | 8,24 | 0,08 | 0,70 | 0,60 | • | |
| 08IR A 55 IC908 | 5,00 | 48,00 | 16,00 | 8,24 | 0,08 | 0,70 | 0,60 | • | |
| 08IR A 55 IC928 | 5,00 | 48,00 | 16,00 | 8,24 | 0,08 | 0,70 | 0,60 | • | |
| 08UIRL U 55 IC228 | 5,00 | 18,00 | 12,00 | 8,66 | 0,10 | 4,33 | 0,90 | • | |
| 11IL A 55 IC250 | 6,35 | 48,00 | 16,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 11IL A 55 IC908 | 6,35 | 48,00 | 16,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 11IR A 55 IC1007 | 6,35 | 48,00 | 16,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 11IR A 55 IC228 | 6,35 | 48,00 | 16,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 11IR A 55 IC250 | 6,35 | 48,00 | 16,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 11IR A 55 IC908 | 6,35 | 48,00 | 16,00 | 11,00 | 0,05 | 0,90 | 0,80 | • | |
| 16IR A 55 IC50M | 9,52 | 48,00 | 16,00 | 16,49 | 0,05 | 0,90 | 0,80 | • | |
| 16IR A 55 IC908 | 9,52 | 48,00 | 16,00 | 16,49 | 0,05 | 0,90 | 0,80 | • | |
| 16IL AG 55 IC908 | 9,52 | 48,00 | 8,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16IR AG 55 IC250 | 9,52 | 48,00 | 8,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16IR AG 55 IC908 | 9,52 | 48,00 | 8,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16IRB AG 55 IC908 (1) | 9,52 | 48,00 | 8,00 | 16,49 | 0,07 | 1,70 | 1,20 | • | |
| 16IRM AG 55 IC1007 (1) | 9,52 | 48,00 | 8,00 | 16,49 | 0,05 | 1,70 | 1,20 | • | |
| 16IRM AG 55 IC250 (1) | 9,52 | 48,00 | 8,00 | 16,49 | 0,05 | 1,70 | 1,20 | • | |
| 16IRM AG 55 IC808 (1) | 9,52 | 48,00 | 8,00 | 16,49 | 0,05 | 1,70 | 1,20 | • | |
| 16IRM AG 55 IC908 (1) | 9,52 | 48,00 | 8,00 | 16,49 | 0,05 | 1,70 | 1,20 | • | |
| 16IL G 55 IC908 | 9,52 | 14,00 | 8,00 | 16,49 | 0,20 | 1,70 | 1,20 | • | |
| 16IR G 55 IC250 | 9,52 | 14,00 | 8,00 | 16,49 | 0,23 | 1,70 | 1,20 | • | |
| 16IR G 55 IC508 | 9,52 | 14,00 | 8,00 | 16,49 | 0,23 | 1,70 | 1,20 | • | |
| 16IR G 55 IC908 | 9,52 | 14,00 | 8,00 | 16,49 | 0,23 | 1,70 | 1,20 | • | |
| 16IRB G 55 IC908 (1) | 9,52 | 14,00 | 8,00 | 16,49 | 0,23 | 1,70 | 1,20 | • | |
| 16IRM G 55 IC1007 | 9,52 | 14,00 | 8,00 | 16,49 | 0,20 | 1,70 | 1,20 | • | |
| 16IRM G 55 IC250 (1) | 9,52 | 14,00 | 8,00 | 16,49 | 0,20 | 1,70 | 1,20 | • | |
| 16IRM G 55 IC808 (1) | 9,52 | 14,00 | 8,00 | 16,49 | 0,20 | 1,70 | 1,20 | • | |
| 16IRM G 55 IC908 (1) | 9,52 | 14,00 | 8,00 | 16,49 | 0,20 | 1,70 | 1,20 | • | |
| 22IR N 55 IC250 | 12,70 | 7,00 | 5,00 | 22,00 | 0,42 | 2,50 | 1,70 | • | |
| 22IR N 55 IC50M | 12,70 | 7,00 | 5,00 | 22,00 | 0,42 | 2,50 | 1,70 | • | |
| 22IR N 55 IC908 | 12,70 | 7,00 | 5,00 | 22,00 | 0,42 | 2,50 | 1,70 | • | |
| 27IR Q 55 IC908 | 15,88 | 4,00 | 4,50 | 27,50 | 0,60 | 2,90 | 2,00 | • |
• Сведения о системе идентификации пластин см. стр. 714
• Для нарезки резьбы между стенками используйте пластины типа GRIP: TIP-WT, GEPI-WT, TIPI-WT
• Детальные данные резания см. стр. 809
(1) С прессованным формовщиком стружки
(2) Витки на дюйм максимум
(3) Витки на дюйм минимум
Инструменты см. на стр.: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
