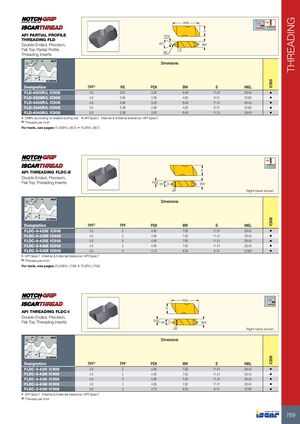

НАРЕЗКА РЕЗЬБЫ
ЧАСТИЧНЫЙ ПРОФИЛЬ РЕЗЬБЫ API FLD
Двусторонние высокоточные пластины для нарезки резьбы с плоским верхом и частичным профилем
| Обозначение | TPI(1) | RE | PDX | BW | S | INSL | IC908 |
|---|---|---|---|---|---|---|---|
| FLD-4050R/L IC908 | 4.0 | 0.51 | 3.25 | 6.48 | 11.51 | 28.45 | • |
| FLD-3038R/L IC908 | 4.0 | 0.84 | 2.08 | 4.95 | 8.74 | 22.60 | • |
| FLD-4038R/L IC908 | 4.0 | 0.84 | 3.25 | 6.48 | 11.51 | 28.45 | • |
| FLD-3040R/L IC908 | 5.0 | 0.38 | 2.08 | 4.95 | 8.74 | 22.60 | • |
| FLD-4040R/L IC908 | 5.0 | 0.38 | 3.25 | 6.48 | 11.51 | 28.45 | • |
(1) Витков на дюйм
НАРЕЗКА РЕЗЬБЫ API FLDC-E
Двусторонние высокоточные пластины для нарезки резьбы с плоским верхом
Показано правостороннее исполнение
| Обозначение | TPI(1) | TPF | PDX | BW | S | INSL | IC908 |
|---|---|---|---|---|---|---|---|
| FLDC-4-425E IC908 | 4.0 | 2 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-4-428E IC908 | 4.0 | 2 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-4-435E IC908 | 4.0 | 3 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-4-438E IC908 | 4.0 | 3 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-3-530E IC908 | 5.0 | 3 | 3.73 | 6.35 | 8.74 | 22.60 | • |
(1) Витков на дюйм
НАРЕЗКА РЕЗЬБЫ API FLDC-I
Двусторонние высокоточные пластины для нарезки резьбы с плоским верхом
Показано правостороннее исполнение
| Обозначение | TPI(1) | TPF | PDX | BW | S | INSL | IC908 |
|---|---|---|---|---|---|---|---|
| FLDC-4-425I IC908 | 4.0 | 2 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-4-428I IC908 | 4.0 | 2 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-4-435I IC908 | 4.0 | 3 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-4-438I IC908 | 4.0 | 3 | 4.65 | 7.92 | 11.51 | 28.45 | • |
| FLDC-3-530I IC908 | 5.0 | 3 | 3.73 | 6.35 | 8.74 | 22.60 | • |
(1) Витков на дюйм
