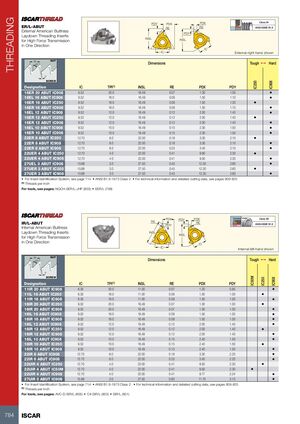

НАРЕЗКА
ER/L-ABUT
Внешняя американская упорная резьба
Пластины слоевой нарезки
для передачи высоких усилий
в одном направлении
Class 2A
ANSI/ASME B1.9
Показана внешняя правая
Размеры
| Обозначение | IC | TPI(1) | INSL | RE | PDX | PDY | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|
| 16ER 20 ABUT IC908 | 9.52 | 20.0 | 16.49 | 0.07 | 1.30 | 1.00 | • | |
| 16EL 16 ABUT IC908 | 9.52 | 16.0 | 16.49 | 0.09 | 1.50 | 1.10 | • | |
| 16ER 16 ABUT IC250 | 9.52 | 16.0 | 16.49 | 0.09 | 1.50 | 1.30 | • | |
| 16ER 16 ABUT IC908 | 9.52 | 16.0 | 16.49 | 0.09 | 1.50 | 1.10 | • | |
| 16EL 12 ABUT IC908 | 9.52 | 12.0 | 16.49 | 0.12 | 2.00 | 1.40 | • | |
| 16ER 12 ABUT IC250 | 9.52 | 12.0 | 16.49 | 0.12 | 2.00 | 1.40 | • | |
| 16ER 12 ABUT IC908 | 9.52 | 12.0 | 16.49 | 0.12 | 2.00 | 1.40 | • | |
| 16EL 10 ABUT IC908 | 9.52 | 10.0 | 16.49 | 0.15 | 2.30 | 1.50 | • | |
| 16ER 10 ABUT IC908 | 9.52 | 10.0 | 16.49 | 0.15 | 2.30 | 1.50 | • | |
| 22ER 8 ABUT IC250 | 12.70 | 8.0 | 22.00 | 0.18 | 3.30 | 2.10 | • | |
| 22ER 8 ABUT IC908 | 12.70 | 8.0 | 22.00 | 0.18 | 3.30 | 2.10 | • | |
| 22ER 6 ABUT IC908 | 12.70 | 6.0 | 22.00 | 0.25 | 3.40 | 2.10 | • | |
| 22UER 4 ABUT IC250 | 12.70 | 4.0 | 22.00 | 0.41 | 9.80 | 2.30 | • | |
| 22UER 4 ABUT IC908 | 12.70 | 4.0 | 22.00 | 0.41 | 9.50 | 2.30 | • | |
| 27UEL 3 ABUT IC908 | 15.88 | 3.0 | 27.50 | 0.45 | 12.30 | 2.60 | • | |
| 27UER 3 ABUT IC250 | 15.88 | 3.0 | 27.50 | 0.45 | 12.30 | 2.60 | • | |
| 27UER 3 ABUT IC908 | 15.88 | 3.0 | 27.50 | 0.45 | 12.30 | 2.60 | • |
Система идентификации пластин см. страницу 714 • ANSI B1.9-1973 Class 2 • Технические сведения и детальные параметры резания см. страницы 809–825
(1) Витков на дюйм
Инструменты см. страницы: NQCH-SER/L-JHP (800) • SER/L (798)
IR/L-ABUT
Внутренняя американская упорная резьба
Пластины слоевой нарезки
для передачи высоких усилий
в одном направлении
Class 2B
ANSI/ASME B1.9
Показана внутренняя левая
Размеры
| Обозначение | IC | TPI(1) | INSL | RE | PDX | PDY | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|
| 11IR 20 ABUT IC908 | 6.35 | 20.0 | 11.00 | 0.07 | 1.20 | 0.85 | • | |
| 11IL 16 ABUT IC250 | 6.35 | 16.0 | 11.00 | 0.09 | 1.50 | 1.00 | • | |
| 11IR 16 ABUT IC908 | 6.35 | 16.0 | 11.00 | 0.09 | 1.50 | 1.00 | • | |
| 16IR 20 ABUT IC250 | 9.52 | 20.0 | 16.49 | 0.07 | 1.30 | 1.00 | • | |
| 16IR 20 ABUT IC908 | 9.52 | 20.0 | 16.49 | 0.07 | 1.30 | 1.00 | • | |
| 16IL 16 ABUT IC908 | 9.52 | 16.0 | 16.49 | 0.09 | 1.50 | 1.00 | • | |
| 16IR 16 ABUT IC908 | 9.52 | 16.0 | 16.49 | 0.09 | 1.50 | 1.00 | • | |
| 16IL 12 ABUT IC908 | 9.52 | 12.0 | 16.49 | 0.12 | 2.00 | 1.40 | • | |
| 16IR 12 ABUT IC250 | 9.52 | 12.0 | 16.49 | 0.12 | 2.00 | 1.40 | • | |
| 16IR 12 ABUT IC908 | 9.52 | 12.0 | 16.49 | 0.12 | 2.00 | 1.40 | • | |
| 16IL 10 ABUT IC908 | 9.52 | 10.0 | 16.49 | 0.15 | 2.40 | 1.50 | • | |
| 16IR 10 ABUT IC250 | 9.52 | 10.0 | 16.49 | 0.15 | 2.40 | 1.50 | • | |
| 16IR 10 ABUT IC908 | 9.52 | 10.0 | 16.49 | 0.15 | 2.40 | 1.50 | • | |
| 22IR 8 ABUT IC908 | 12.70 | 8.0 | 22.00 | 0.18 | 3.30 | 2.20 | • | |
| 22IR 6 ABUT IC908 | 12.70 | 6.0 | 22.00 | 0.25 | 3.40 | 2.20 | • | |
| 22UIR 4 ABUT IC250 | 12.70 | 4.0 | 22.00 | 0.41 | 9.50 | 2.30 | • | |
| 22UIR 4 ABUT IC50M | 12.70 | 4.0 | 22.00 | 0.41 | 9.50 | 2.30 | • | |
| 22UIR 4 ABUT IC908 | 12.70 | 4.0 | 22.00 | 0.41 | 9.77 | 2.24 | • | |
| 27UIR 3 ABUT IC908 | 15.88 | 3.0 | 27.50 | 0.60 | 11.70 | 3.10 | • |
Система идентификации пластин см. страницу 714 • ANSI B1.9-1973 Class 2 • Технические сведения и детальные параметры резания см. страницы 809–825
(1) Витков на дюйм
Инструменты см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • SIR/L (801)
