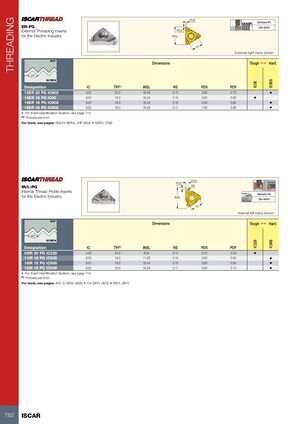

НАРЕЗКА
ER-PG
Пластины внешней нарезки
для электропромышленности
Standard PG
DIN 40430
Показана внешняя правая
Размеры
| Обозначение | IC | TPI(1) | INSL | RE | PDX | PDY | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|
| 16ER 20 PG IC908 | 9.52 | 20.0 | 16.49 | 0.13 | 0.80 | 0.70 | • | |
| 16ER 18 PG IC08 | 9.52 | 18.0 | 16.49 | 0.15 | 0.90 | 0.80 | • | |
| 16ER 18 PG IC908 | 9.52 | 18.0 | 16.49 | 0.15 | 0.90 | 0.80 | • | |
| 16ER 16 PG IC908 | 9.52 | 16.0 | 16.49 | 0.17 | 1.00 | 0.80 | • |
Система идентификации пластин см. страницу 714
(1) Витков на дюйм
Инструменты см. страницы: NQCH-SER/L-JHP (800) • SER/L (798)
IR/L-PG
Пластины внутренней нарезки профиля
для электропромышленности
Standard PG
DIN 40430
Показана внутренняя левая
Размеры
| Обозначение | IC | TPI(1) | INSL | RE | PDX | PDY | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|
| 08IR 20 PG IC228 | 5.00 | 20.0 | 8.24 | 0.14 | 0.70 | 0.55 | • | |
| 11IR 18 PG IC908 | 6.35 | 18.0 | 11.00 | 0.15 | 0.90 | 0.80 | • | |
| 16IR 18 PG IC908 | 9.52 | 18.0 | 16.49 | 0.15 | 0.90 | 0.80 | • | |
| 16IR 16 PG IC908 | 9.52 | 16.0 | 16.49 | 0.17 | 0.90 | 0.70 | • |
Система идентификации пластин см. страницу 714
(1) Витков на дюйм
Инструменты см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • SIR/L (801)
