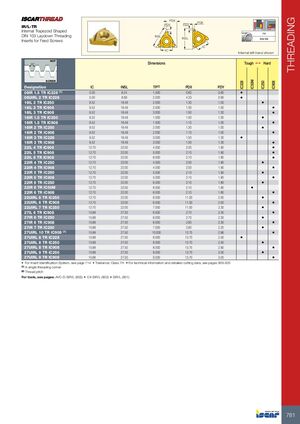

НАРЕЗКА
IR/L-TR
Внутренняя трапецеидальная резьба
Слоевая нарезка DIN 103
Пластины для винтов подачи
Показана внутренняя левая
Размеры
| Обозначение | IC | INSL | TP(2) | PDX | PDY | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|
| 08IR 1.5 TR IC228 (1) | 5.00 | 8.24 | 1.500 | 0.60 | 0.60 | • | |
| 08UIRL 2 TR IC228 | 5.00 | 8.66 | 2.000 | 4.33 | 0.90 | • | |
| 16IL 2 TR IC250 | 9.52 | 16.49 | 2.000 | 1.30 | 1.00 | • | |
| 16IL 2 TR IC908 | 9.52 | 16.49 | 2.000 | 1.30 | 1.00 | • | |
| 16IL 3 TR IC908 | 9.52 | 16.49 | 3.000 | 1.50 | 1.30 | • | |
| 16IR 1.5 TR IC250 | 9.52 | 16.49 | 1.500 | 1.00 | 1.00 | • | |
| 16IR 1.5 TR IC908 | 9.52 | 16.49 | 1.500 | 1.10 | 1.00 | • | |
| 16IR 2 TR IC250 | 9.52 | 16.49 | 2.000 | 1.30 | 1.00 | • | |
| 16IR 2 TR IC908 | 9.52 | 16.49 | 2.000 | 1.10 | 1.00 | • | |
| 16IR 3 TR IC228 | 9.52 | 16.49 | 3.000 | 1.50 | 1.30 | • | |
| 16IR 3 TR IC908 | 9.52 | 16.49 | 3.000 | 1.50 | 1.30 | • | |
| 22IL 4 TR IC908 | 12.70 | 22.00 | 4.000 | 2.00 | 1.90 | • | |
| 22IL 5 TR IC908 | 12.70 | 22.00 | 5.000 | 2.10 | 1.90 | • | |
| 22IL 6 TR IC908 | 12.70 | 22.00 | 6.000 | 2.10 | 1.80 | • | |
| 22IR 4 TR IC250 | 12.70 | 22.00 | 4.000 | 2.00 | 1.90 | • | |
| 22IR 4 TR IC908 | 12.70 | 22.00 | 4.000 | 2.00 | 1.90 | • | |
| 22IR 5 TR IC250 | 12.70 | 22.00 | 5.000 | 2.10 | 1.90 | • | |
| 22IR 5 TR IC908 | 12.70 | 22.00 | 5.000 | 2.10 | 1.90 | • | |
| 22IR 6 TR IC250 | 12.70 | 22.00 | 6.000 | 2.10 | 1.80 | • | |
| 22IR 6 TR IC50M | 12.70 | 22.00 | 6.000 | 2.10 | 1.80 | • | |
| 22IR 6 TR IC908 | 12.70 | 22.00 | 6.000 | 2.10 | 1.80 | • | |
| 22UIRL 6 TR IC250 | 12.70 | 22.00 | 6.000 | 11.00 | 2.00 | • | |
| 22UIRL 6 TR IC908 | 12.70 | 22.00 | 6.000 | 11.00 | 2.00 | • | |
| 22UIRL 7 TR IC250 | 12.70 | 22.00 | 7.000 | 11.00 | 2.30 | • | |
| 27IL 6 TR IC908 | 15.88 | 27.50 | 6.000 | 2.70 | 2.30 | • | |
| 27IR 6 TR IC250 | 15.88 | 27.50 | 6.000 | 2.70 | 2.30 | • | |
| 27IR 6 TR IC908 | 15.88 | 27.50 | 6.000 | 2.60 | 2.30 | • | |
| 27IR 7 TR IC250 | 15.88 | 27.50 | 7.000 | 2.60 | 2.20 | • | |
| 27UIRL 10 TR IC908 (1) | 15.88 | 27.50 | 10.000 | 13.75 | 2.96 | • | |
| 27UIRL 8 TR IC228 | 15.88 | 27.50 | 8.000 | 13.70 | 2.50 | • | |
| 27UIRL 8 TR IC250 | 15.88 | 27.50 | 8.000 | 13.70 | 2.50 | • | |
| 27UIRL 8 TR IC908 | 15.88 | 27.50 | 8.000 | 13.75 | 2.90 | • | |
| 27UIRL 9 TR IC250 | 15.88 | 27.50 | 9.000 | 13.70 | 3.00 | • | |
| 27UIRL 9 TR IC908 | 15.88 | 27.50 | 9.000 | 13.70 | 3.00 | • |
Система идентификации пластин см. страницу 714 • Допуск: Class 7H • Технические сведения и детальные параметры резания см. страницы 809–825
(1) Одна режущая кромка
(2) Шаг резьбы
Инструменты см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • SIR/L (801)
