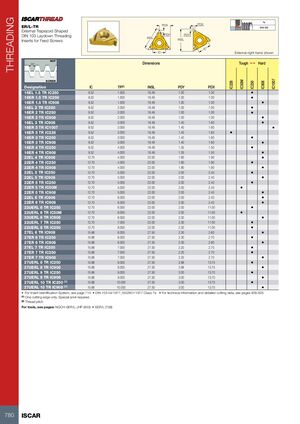

НАРЕЗКА
ER/L-TR
Внешняя трапецеидальная резьба
Слоевая нарезка DIN 103
Пластины для винтов подачи
Показана внешняя правая
Размеры
| Обозначение | IC | TP(2) | INSL | PDY | PDX | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|
| 16EL 1.5 TR IC250 | 9.52 | 1.500 | 16.49 | 1.00 | 1.00 | • | |
| 16ER 1.5 TR IC250 | 9.52 | 1.500 | 16.49 | 1.00 | 1.00 | • | |
| 16ER 1.5 TR IC908 | 9.52 | 1.500 | 16.49 | 1.00 | 1.00 | • | |
| 16EL 2 TR IC250 | 9.52 | 2.000 | 16.49 | 1.00 | 1.00 | • | |
| 16ER 2 TR IC250 | 9.52 | 2.000 | 16.49 | 1.00 | 1.00 | • | |
| 16ER 2 TR IC908 | 9.52 | 2.000 | 16.49 | 1.00 | 1.00 | • | |
| 16EL 3 TR IC908 | 9.52 | 3.000 | 16.49 | 1.40 | 1.60 | • | |
| 16ER 3 TR IC1007 | 9.52 | 3.000 | 16.49 | 1.40 | 1.60 | • | |
| 16ER 3 TR IC228 | 9.52 | 3.000 | 16.49 | 1.40 | 1.60 | • | |
| 16ER 3 TR IC250 | 9.52 | 3.000 | 16.49 | 1.40 | 1.60 | • | |
| 16ER 3 TR IC908 | 9.52 | 3.000 | 16.49 | 1.40 | 1.60 | • | |
| 16ER 4 TR IC250 | 9.52 | 4.000 | 16.49 | 1.35 | 1.50 | • | |
| 16ER 4 TR IC908 | 9.52 | 4.000 | 16.49 | 1.35 | 1.50 | • | |
| 22EL 4 TR IC908 | 12.70 | 4.000 | 22.00 | 1.80 | 1.90 | • | |
| 22ER 4 TR IC250 | 12.70 | 4.000 | 22.00 | 1.80 | 1.90 | • | |
| 22ER 4 TR IC908 | 12.70 | 4.000 | 22.00 | 1.80 | 1.90 | • | |
| 22EL 5 TR IC250 | 12.70 | 5.000 | 22.00 | 2.00 | 2.40 | • | |
| 22EL 5 TR IC908 | 12.70 | 5.000 | 22.00 | 2.00 | 2.40 | • | |
| 22ER 5 TR IC250 | 12.70 | 5.000 | 22.00 | 2.00 | 2.40 | • | |
| 22ER 5 TR IC50M | 12.70 | 5.000 | 22.00 | 2.00 | 2.40 | • | |
| 22ER 5 TR IC908 | 12.70 | 5.000 | 22.00 | 2.00 | 2.40 | • | |
| 22EL 6 TR IC908 | 12.70 | 6.000 | 22.00 | 2.00 | 2.40 | • | |
| 22ER 6 TR IC908 | 12.70 | 6.000 | 22.00 | 2.00 | 2.40 | • | |
| 22UERL 6 TR IC250 | 12.70 | 6.000 | 22.00 | 2.00 | 11.00 | • | |
| 22UERL 6 TR IC50M | 12.70 | 6.000 | 22.00 | 2.00 | 11.00 | • | |
| 22UERL 6 TR IC908 | 12.70 | 6.000 | 22.00 | 2.00 | 11.00 | • | |
| 22UERL 7 TR IC250 | 12.70 | 7.000 | 22.00 | 2.30 | 11.00 | • | |
| 22UERL 8 TR IC250 | 12.70 | 8.000 | 22.00 | 2.30 | 11.00 | • | |
| 27EL 6 TR IC908 | 15.88 | 6.000 | 27.50 | 2.30 | 2.60 | • | |
| 27ER 6 TR IC250 | 15.88 | 6.000 | 27.50 | 2.30 | 2.70 | • | |
| 27ER 6 TR IC908 | 15.88 | 6.000 | 27.50 | 2.30 | 2.60 | • | |
| 27EL 7 TR IC250 | 15.88 | 7.000 | 27.50 | 2.20 | 2.70 | • | |
| 27ER 7 TR IC250 | 15.88 | 7.000 | 27.50 | 2.20 | 2.70 | • | |
| 27ER 7 TR IC908 | 15.88 | 7.000 | 27.50 | 2.20 | 2.70 | • | |
| 27UERL 8 TR IC250 | 15.88 | 8.000 | 27.50 | 2.68 | 13.75 | • | |
| 27UERL 8 TR IC908 | 15.88 | 8.000 | 27.50 | 2.68 | 13.75 | • | |
| 27UERL 9 TR IC250 | 15.88 | 9.000 | 27.50 | 3.00 | 13.70 | • | |
| 27UERL 9 TR IC908 | 15.88 | 9.000 | 27.50 | 3.00 | 13.70 | • | |
| 27UERL 10 TR IC250 (1) | 15.88 | 10.000 | 27.50 | 3.00 | 13.70 | • | |
| 27UERL 10 TR IC908 (1) | 15.88 | 10.000 | 27.50 | 3.00 | 13.70 | • |
Система идентификации пластин см. страницу 714 • DIN 103 04/1977, 1502901/1977 Class 7e • Технические сведения и детальные параметры резания см. страницы 809–825
(1) Одна режущая кромка. Требуется специальная наковальня.
(2) Шаг резьбы
Инструменты см. страницы: NQCH-SER/L-JHP (800) • SER/L (798)
