Нарезание резьбы

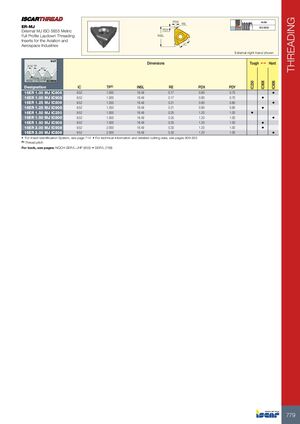

Резьбовые пластины ER-MJ
Резьбовые пластины с внешним профилем MJ ISO 5855 полного профиля для авиационной и аэрокосмической промышленности
| Обозначение | IC | Шаг резьбы(1) | INSL | RE | PDX | PDY | IC250 | IC908 | IC806 |
|---|---|---|---|---|---|---|---|---|---|
| 16ER 1.00 MJ | 9,52 | 1,000 | 16,49 | 0,17 | 0,80 | 0,70 | • | • | |
| 16ER 1.25 MJ | 9,52 | 1,250 | 16,49 | 0,21 | 0,80 | 0,80 | • | • | |
| 16ER 1.50 MJ | 9,52 | 1,500 | 16,49 | 0,25 | 1,20 | 1,00 | • | • | • |
| 16ER 2.00 MJ | 9,52 | 2,000 | 16,49 | 0,33 | 1,20 | 1,00 | • | • |
- Система идентификации пластин см. на странице 714
- Техническую информацию и подробные данные резания см. на страницах 809-825
- (1) Шаг резьбы
Сведения об инструментах см. на страницах: NQCH-SER/L-JHP (800) • SER/L (798)
