Нарезание резьбы

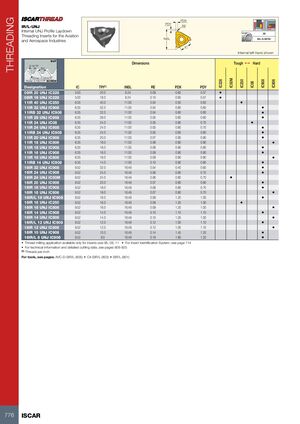

Резьбовые пластины IR/L-UNJ
Резьбовые пластины с внутренним профилем UNJ для авиационной и аэрокосмической промышленности
| Обозначение | IC | Витки на дюйм(1) | INSL | RE | PDX | PDY | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|
| 08IR 20 UNJ | 5,00 | 20,0 | 8,24 | 0,09 | 0,65 | 0,57 | IC228 | |
| 08IR 18 UNJ | 5,00 | 18,0 | 8,24 | 0,10 | 0,65 | 0,57 | IC228 | |
| 11IR 40 UNJ | 6,35 | 40,0 | 11,00 | 0,04 | 0,50 | 0,63 | IC250 | |
| 11IR 32 UNJ | 6,35 | 32,0 | 11,00 | 0,04 | 0,60 | 0,60 | IC908 | |
| 11IRB 32 UNJ | 6,35 | 32,0 | 11,00 | 0,04 | 0,60 | 0,60 | IC908 | |
| 11IR 28 UNJ | 6,35 | 28,0 | 11,00 | 0,05 | 0,60 | 0,60 | IC908 | |
| 11IR 24 UNJ | 6,35 | 24,0 | 11,00 | 0,05 | 0,80 | 0,70 | IC08 | |
| 11IR 24 UNJ | 6,35 | 24,0 | 11,00 | 0,05 | 0,80 | 0,70 | IC908 | |
| 11IRB 24 UNJ | 6,35 | 24,0 | 11,00 | 0,05 | 0,60 | 0,60 | IC908 | |
| 11IR 20 UNJ | 6,35 | 20,0 | 11,00 | 0,07 | 0,90 | 0,80 | IC908 | |
| 11IR 18 UNJ | 6,35 | 18,0 | 11,00 | 0,08 | 0,90 | 0,80 | IC908 | IC806 |
| 11IR 16 UNJ | 6,35 | 16,0 | 11,00 | 0,09 | 0,90 | 0,80 | IC908 | |
| 11IR 16 UNJ | 6,35 | 16,0 | 11,00 | 0,09 | 0,90 | 0,80 | IC908 | IC806 |
| 11IRB 14 UNJ | 6,35 | 14,0 | 11,00 | 0,10 | 0,90 | 0,80 | IC908 | |
| 16IR 32 UNJ | 9,52 | 32,0 | 16,49 | 0,04 | 0,40 | 0,60 | IC908 | |
| 16IR 24 UNJ | 9,52 | 24,0 | 16,49 | 0,06 | 0,80 | 0,70 | IC908 | |
| 16IR 24 UNJ | 9,52 | 24,0 | 16,49 | 0,06 | 0,80 | 0,70 | IC50M | |
| 16IR 20 UNJ | 9,52 | 20,0 | 16,49 | 0,07 | 0,80 | 0,80 | IC908 | |
| 16IR 18 UNJ | 9,52 | 18,0 | 16,49 | 0,08 | 0,80 | 0,70 | IC908 | |
| 16IR 18 UNJ | 9,52 | 18,0 | 16,49 | 0,07 | 0,80 | 0,70 | IC908 | IC806 |
| 16IR/L 16 UNJ | 9,52 | 16,0 | 16,49 | 0,09 | 1,20 | 1,00 | IC908 | |
| 16IR 16 UNJ | 9,52 | 16,0 | 16,49 | 0,09 | 1,20 | 1,00 | IC908 | IC250, IC806 |
| 16IR 14 UNJ | 9,52 | 14,0 | 16,49 | 0,10 | 1,10 | 1,10 | IC908 | |
| 16IR 14 UNJ | 9,52 | 14,0 | 16,49 | 0,10 | 1,20 | 1,00 | IC908 | IC806 |
| 16IR/L 12 UNJ | 9,52 | 12,0 | 16,49 | 0,12 | 1,00 | 1,10 | IC908 | |
| 16IR 12 UNJ | 9,52 | 12,0 | 16,49 | 0,12 | 1,00 | 1,10 | IC908 | IC806 |
| 16IR 10 UNJ | 9,52 | 10,0 | 16,49 | 0,14 | 1,45 | 1,20 | IC908 | |
| 16IR/L 8 UNJ | 9,52 | 8,0 | 16,49 | 0,19 | 1,60 | 1,20 | IC908 |
- Фрезерование резьбы доступно только для пластин размеров 06, 08, 11
- Система идентификации пластин см. на странице 714
- Техническую информацию и подробные данные резания см. на страницах 809-825
- (1) Витки на дюйм
Сведения об инструментах см. на страницах: AVC-D-SIR/L (805) • C#-SIR/L (803) • SIR/L (801)
