Нарезание резьбы

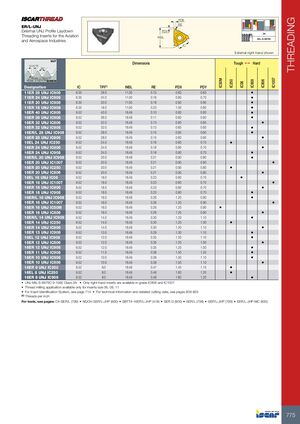

Резьбовые пластины ER/L-UNJ
Резьбовые пластины с внешним профилем UNJ для авиационной и аэрокосмической промышленности
| Обозначение | IC | Витки на дюйм(1) | INSL | RE | PDX | PDY | Tough 1 | Hard |
|---|---|---|---|---|---|---|---|---|
| 11ER 28 UNJ | 6,35 | 28,0 | 11,00 | 0,15 | 0,60 | 0,60 | IC908 | |
| 11ER 24 UNJ | 6,35 | 24,0 | 11,00 | 0,16 | 0,80 | 0,70 | IC908 | |
| 11ER 20 UNJ | 6,35 | 20,0 | 11,00 | 0,19 | 0,90 | 0,80 | IC908 | |
| 11ER 18 UNJ | 6,35 | 18,0 | 11,00 | 0,23 | 1,00 | 0,80 | IC908 | |
| 16ER 40 UNJ | 9,52 | 40,0 | 16,49 | 0,10 | 0,60 | 0,60 | IC908 | |
| 16ER 36 UNJ | 9,52 | 36,0 | 16,49 | 0,11 | 0,60 | 0,60 | IC908 | |
| 16ER 32 UNJ | 9,52 | 32,0 | 16,49 | 0,13 | 0,60 | 0,60 | IC908 | IC806 |
| 16ER/L 28 UNJ | 9,52 | 28,0 | 16,49 | 0,15 | 0,60 | 0,60 | IC908 | |
| 16ER 28 UNJ | 9,52 | 28,0 | 16,49 | 0,15 | 0,60 | 0,60 | IC908 | IC806 |
| 16EL 24 UNJ | 9,52 | 24,0 | 16,49 | 0,16 | 0,80 | 0,70 | IC250 | |
| 16ER 24 UNJ | 9,52 | 24,0 | 16,49 | 0,18 | 0,80 | 0,70 | IC908 | IC806 |
| 16ER/L 20 UNJ | 9,52 | 20,0 | 16,49 | 0,21 | 0,90 | 0,80 | IC908 | |
| 16ER 20 UNJ | 9,52 | 20,0 | 16,49 | 0,21 | 0,90 | 0,80 | IC908 | IC1007, IC250, IC806 |
| 16EL 18 UNJ | 9,52 | 18,0 | 16,49 | 0,23 | 0,80 | 0,70 | IC08 | |
| 16ER 18 UNJ | 9,52 | 18,0 | 16,49 | 0,23 | 0,80 | 0,70 | IC908 | IC1007, IC806 |
| 16ER/L 16 UNJ | 9,52 | 16,0 | 16,49 | 0,26 | 1,20 | 0,90 | IC908 | |
| 16ER 16 UNJ | 9,52 | 16,0 | 16,49 | 0,26 | 1,20 | 0,90 | IC908 | IC50M, IC1007, IC806 |
| 16ER/L 14 UNJ | 9,52 | 14,0 | 16,49 | 0,30 | 1,20 | 1,10 | IC908 | |
| 16ER 14 UNJ | 9,52 | 14,0 | 16,49 | 0,30 | 1,20 | 1,00 | IC908 | IC250, IC806 |
| 16ER 13 UNJ | 9,52 | 13,0 | 16,49 | 0,29 | 1,30 | 1,10 | IC908 | |
| 16EL 12 UNJ | 9,52 | 12,0 | 16,49 | 0,35 | 1,20 | 1,10 | IC908 | |
| 16ER 12 UNJ | 9,52 | 12,0 | 16,49 | 0,35 | 1,20 | 1,00 | IC908 | IC806 |
| 16ER 11 UNJ | 9,52 | 11,0 | 16,49 | 0,38 | 1,50 | 1,20 | IC908 | |
| 16ER 10 UNJ | 9,52 | 10,0 | 16,49 | 0,38 | 1,50 | 1,10 | IC908 | IC806 |
| 16ER 9 UNJ | 9,52 | 9,0 | 16,49 | 0,47 | 1,45 | 1,15 | IC250 | |
| 16EL 8 UNJ | 9,52 | 8,0 | 16,49 | 0,48 | 1,60 | 1,20 | IC250 | |
| 16ER 8 UNJ | 9,52 | 8,0 | 16,49 | 0,48 | 1,60 | 1,20 | IC908 |
- Класс 3A UNJ MIL-S-8879C 9-1992
- Только правые пластины доступны в марках IC806 и IC1007
- Фрезерование резьбы доступно только для пластин размеров 06, 08, 11
- Система идентификации пластин см. на странице 714
- Техническую информацию и подробные данные резания см. на страницах 809-825
- (1) Витки на дюйм
Сведения об инструментах см. на страницах: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
