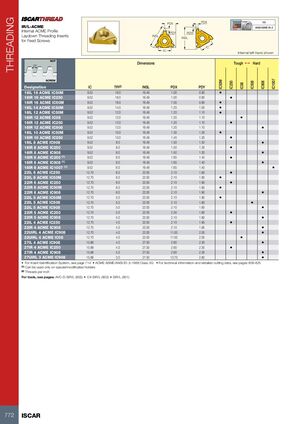

НАРЕЗАНИЕ РЕЗЬБЫ
IR/L-ACME
Державки резцов для нарезания внутренней трапецеидальной резьбы ACME для ходовых винтов
Стандарт: ANSI/ASME B1.5, класс 3G
| Обозначение | IC | ВНМ(2) | INSL | PDX | PDY | IC08 | IC50M | IC250 | IC508 | IC908 | IC1007 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 16IL 16 ACME IC50M | 9.52 | 16.0 | 16.49 | 1.00 | 0.90 | • | |||||
| 16IR 16 ACME IC250 | 9.52 | 16.0 | 16.49 | 1.00 | 0.90 | • | |||||
| 16IR 16 ACME IC50M | 9.52 | 16.0 | 16.49 | 1.00 | 0.90 | • | |||||
| 16IL 14 ACME IC50M | 9.52 | 14.0 | 16.49 | 1.20 | 1.00 | • | |||||
| 16IL 12 ACME IC50M | 9.52 | 12.0 | 16.49 | 1.20 | 1.10 | • | |||||
| 16IR 12 ACME IC08 | 9.52 | 12.0 | 16.49 | 1.20 | 1.10 | • | |||||
| 16IR 12 ACME IC250 | 9.52 | 12.0 | 16.49 | 1.20 | 1.10 | • | |||||
| 16IR 12 ACME IC908 | 9.52 | 12.0 | 16.49 | 1.20 | 1.10 | • | |||||
| 16IL 10 ACME IC50M | 9.52 | 10.0 | 16.49 | 1.30 | 1.30 | • | |||||
| 16IR 10 ACME IC250 | 9.52 | 10.0 | 16.49 | 1.40 | 1.30 | • | |||||
| 16IL 8 ACME IC908 | 9.52 | 8.0 | 16.49 | 1.50 | 1.50 | • | |||||
| 16IR 8 ACME IC250 | 9.52 | 8.0 | 16.49 | 1.50 | 1.30 | • | |||||
| 16IR 8 ACME IC908 | 9.52 | 8.0 | 16.49 | 1.50 | 1.30 | • | |||||
| 16IR 6 ACME IC250 (1) | 9.52 | 6.0 | 16.49 | 1.65 | 1.40 | • | |||||
| 16IR 6 ACME IC908 (1) | 9.52 | 6.0 | 16.49 | 1.65 | 1.40 | • | |||||
| 16IR 6 ACME IC1007 (1) | 9.52 | 6.0 | 16.49 | 1.65 | 1.40 | • | |||||
| 22IL 6 ACME IC250 | 12.70 | 6.0 | 22.00 | 2.10 | 1.90 | • | |||||
| 22IL 6 ACME IC50M | 12.70 | 6.0 | 22.00 | 2.10 | 1.90 | • | |||||
| 22IR 6 ACME IC250 | 12.70 | 6.0 | 22.00 | 2.10 | 1.90 | • | |||||
| 22IR 6 ACME IC50M | 12.70 | 6.0 | 22.00 | 2.10 | 1.90 | • | |||||
| 22IR 6 ACME IC908 | 12.70 | 6.0 | 22.00 | 2.10 | 1.90 | • | |||||
| 22IL 5 ACME IC50M | 12.70 | 5.0 | 22.00 | 2.10 | 1.80 | • | |||||
| 22IL 5 ACME IC508 | 12.70 | 5.0 | 22.00 | 2.10 | 1.80 | • | |||||
| 22IL 5 ACME IC908 | 12.70 | 5.0 | 22.00 | 2.10 | 1.80 | • | |||||
| 22IR 5 ACME IC250 | 12.70 | 5.0 | 22.00 | 2.30 | 1.80 | • | |||||
| 22IR 5 ACME IC908 | 12.70 | 5.0 | 22.00 | 2.10 | 1.80 | • | |||||
| 22IL 4 ACME IC250 | 12.70 | 4.0 | 22.00 | 2.10 | 1.95 | • | |||||
| 22IR 4 ACME IC908 | 12.70 | 4.0 | 22.00 | 2.10 | 1.95 | • | |||||
| 22UIRL 4 ACME IC908 | 12.70 | 4.0 | 22.00 | 11.00 | 2.00 | • | |||||
| 22UIRL 4 ACME IC08 | 12.70 | 4.0 | 22.00 | 11.00 | 2.00 | • | |||||
| 27IL 4 ACME IC908 | 15.88 | 4.0 | 27.50 | 2.60 | 2.30 | • | |||||
| 27IR 4 ACME IC250 | 15.88 | 4.0 | 27.50 | 2.60 | 2.30 | • | |||||
| 27IR 4 ACME IC908 | 15.88 | 4.0 | 27.50 | 2.60 | 2.30 | • | |||||
| 27UIRL 3 ACME IC908 | 15.88 | 3.0 | 27.50 | 13.70 | 2.80 | • |
(1) Может использоваться только на специальных/модифицированных державках
(2) Витки на дюйм
Инструменты на страницах: AVC-D-SIR/L (805) • C#-SIR/L (803) • SIR/L (801)
