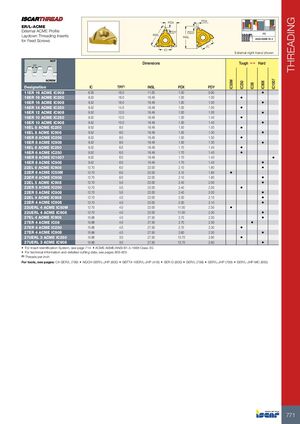

НАРЕЗАНИЕ РЕЗЬБЫ
ER/L-ACME
Державки резцов для нарезания внешней трапецеидальной резьбы ACME для ходовых винтов
Стандарт: ANSI/ASME B1.5, класс 3G
| Обозначение | IC | ВНМ(1) | INSL | PDX | PDY | IC08 | IC50M | IC250 | IC1007 | IC908 |
|---|---|---|---|---|---|---|---|---|---|---|
| 11ER 16 ACME IC908 | 6.35 | 16.0 | 11.00 | 1.00 | 0.90 | • | ||||
| 16ER 16 ACME IC250 | 9.52 | 16.0 | 16.49 | 1.00 | 1.00 | • | ||||
| 16ER 16 ACME IC908 | 9.52 | 16.0 | 16.49 | 1.00 | 1.00 | • | ||||
| 16ER 14 ACME IC250 | 9.52 | 14.0 | 16.49 | 1.00 | 1.00 | • | ||||
| 16ER 12 ACME IC908 | 9.52 | 12.0 | 16.49 | 1.00 | 1.00 | • | ||||
| 16ER 10 ACME IC250 | 9.52 | 10.0 | 16.49 | 1.30 | 1.40 | • | ||||
| 16ER 10 ACME IC908 | 9.52 | 10.0 | 16.49 | 1.30 | 1.40 | • | ||||
| 16EL 8 ACME IC250 | 9.52 | 8.0 | 16.49 | 1.50 | 1.50 | • | ||||
| 16EL 8 ACME IC908 | 9.52 | 8.0 | 16.49 | 1.50 | 1.30 | • | ||||
| 16ER 8 ACME IC250 | 9.52 | 8.0 | 16.49 | 1.50 | 1.50 | • | ||||
| 16ER 8 ACME IC908 | 9.52 | 8.0 | 16.49 | 1.50 | 1.30 | • | ||||
| 16EL 6 ACME IC250 | 9.52 | 6.0 | 16.49 | 1.70 | 1.40 | • | ||||
| 16ER 6 ACME IC250 | 9.52 | 6.0 | 16.49 | 1.70 | 1.40 | • | ||||
| 16ER 6 ACME IC1007 | 9.52 | 6.0 | 16.49 | 1.70 | 1.40 | • | ||||
| 16ER 6 ACME IC908 | 9.52 | 6.0 | 16.49 | 1.70 | 1.40 | • | ||||
| 22EL 6 ACME IC908 | 12.70 | 6.0 | 22.00 | 2.10 | 1.80 | • | ||||
| 22ER 6 ACME IC50M | 12.70 | 6.0 | 22.00 | 2.10 | 1.80 | • | ||||
| 22ER 6 ACME IC908 | 12.70 | 6.0 | 22.00 | 2.10 | 1.80 | • | ||||
| 22EL 5 ACME IC908 | 12.70 | 5.0 | 22.00 | 2.40 | 2.00 | • | ||||
| 22ER 5 ACME IC250 | 12.70 | 5.0 | 22.00 | 2.40 | 2.00 | • | ||||
| 22ER 5 ACME IC908 | 12.70 | 5.0 | 22.00 | 2.40 | 2.00 | • | ||||
| 22EL 4 ACME IC908 | 12.70 | 4.0 | 22.00 | 2.30 | 2.10 | • | ||||
| 22ER 4 ACME IC908 | 12.70 | 4.0 | 22.00 | 2.30 | 2.10 | • | ||||
| 22UERL 4 ACME IC50M | 12.70 | 4.0 | 22.00 | 11.00 | 2.30 | • | ||||
| 22UERL 4 ACME IC908 | 12.70 | 4.0 | 22.00 | 11.00 | 2.30 | • | ||||
| 27EL 4 ACME IC908 | 15.88 | 4.0 | 27.50 | 2.70 | 2.30 | • | ||||
| 27ER 4 ACME IC08 | 15.88 | 4.0 | 27.50 | 2.70 | 2.30 | • | ||||
| 27ER 4 ACME IC250 | 15.88 | 4.0 | 27.50 | 2.70 | 2.30 | • | ||||
| 27ER 4 ACME IC908 | 15.88 | 4.0 | 27.50 | 2.60 | 2.30 | • | ||||
| 27UERL 3 ACME IC250 | 15.88 | 3.0 | 27.50 | 13.70 | 2.80 | • | ||||
| 27UERL 3 ACME IC908 | 15.88 | 3.0 | 27.50 | 13.70 | 2.80 | • |
(1) Витки на дюйм
Инструменты на страницах: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
