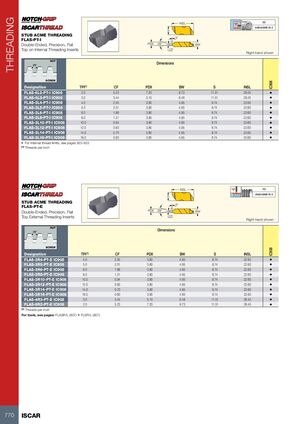

НАРЕЗАНИЕ РЕЗЬБЫ
STUB ACME THREADING — FLAS-PT-I
Двусторонние прецизионные державки резцов с плоским верхом для нарезания внутренней резьбы
Стандарт: ANSI/ASME B1.5, класс 3G
| Обозначение | ВНМ(1) | CF | PDX | BW | S | INSL | IC908 |
|---|---|---|---|---|---|---|---|
| FLAS-6L2-PT-I IC908 | 2.0 | 5.23 | 7.20 | 9.73 | 11.51 | 28.45 | • |
| FLAS-4L3-PT-I IC908 | 3.0 | 3.44 | 5.10 | 6.48 | 11.51 | 28.45 | • |
| FLAS-3L4-PT-I IC908 | 4.0 | 2.55 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3L5-PT-I IC908 | 5.0 | 2.01 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3L6-PT-I IC908 | 6.0 | 1.66 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3L8-PT-I IC908 | 8.0 | 1.21 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3L10-PT-I IC908 | 10.0 | 0.94 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3L12-PT-I IC908 | 12.0 | 0.83 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3L14-PT-I IC908 | 14.0 | 0.70 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3L16-PT-I IC908 | 16.0 | 0.60 | 3.80 | 4.95 | 8.74 | 22.60 | • |
(1) Витки на дюйм
Примечание: Для пределов внутренней резьбы см. страницы 822-823.
STUB ACME THREADING — FLAS-PT-E
Двусторонние прецизионные державки резцов с плоским верхом для нарезания внешней резьбы
Стандарт: ANSI/ASME B1.5, класс 3G
| Обозначение | ВНМ(1) | CF | PDX | BW | S | INSL | IC908 |
|---|---|---|---|---|---|---|---|
| FLAS-3R4-PT-E IC908 | 4.0 | 2.55 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3R5-PT-E IC908 | 5.0 | 2.01 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3R6-PT-E IC908 | 6.0 | 1.66 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3R8-PT-E IC908 | 8.0 | 1.21 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3R10-PT-E IC908 | 10.0 | 0.94 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3R12-PT-E IC908 | 12.0 | 0.83 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3R14-PT-E IC908 | 14.0 | 0.70 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-3R16-PT-E IC908 | 16.0 | 0.60 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLAS-4R3-PT-E IC908 | 3.0 | 3.44 | 5.10 | 6.48 | 11.51 | 28.45 | • |
| FLAS-6R2-PT-E IC908 | 2.0 | 5.23 | 7.20 | 9.73 | 11.51 | 28.45 | • |
(1) Витки на дюйм
Инструменты на страницах: FLASR/L (807) • FLSR/L (807)
