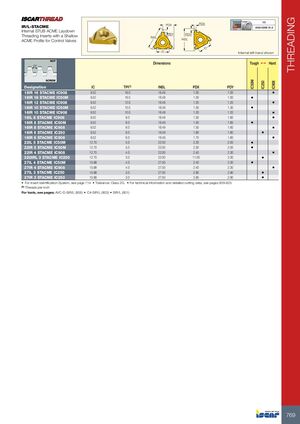

НАРЕЗАНИЕ РЕЗЬБЫ
IR/L-STACME
Державки резцов для нарезания внутренней резьбы STUB ACME с неглубоким профилем для регулирующих клапанов
Стандарт: ANSI/ASME B1.8, класс 2G
| Обозначение | IC | ВНМ(1) | INSL | PDX | PDY | IC50M | IC250 | IC908 |
|---|---|---|---|---|---|---|---|---|
| 16IR 16 STACME IC908 | 9.52 | 16.0 | 16.49 | 1.00 | 1.00 | • | ||
| 16IR 16 STACME IC50M | 9.52 | 16.0 | 16.49 | 1.00 | 1.00 | • | ||
| 16IR 12 STACME IC908 | 9.52 | 12.0 | 16.49 | 1.20 | 1.20 | • | ||
| 16IR 10 STACME IC50M | 9.52 | 10.0 | 16.49 | 1.30 | 1.30 | • | ||
| 16IR 10 STACME IC908 | 9.52 | 10.0 | 16.49 | 1.20 | 1.20 | • | ||
| 16IL 8 STACME IC908 | 9.52 | 8.0 | 16.49 | 1.50 | 1.60 | • | ||
| 16IR 8 STACME IC50M | 9.52 | 8.0 | 16.49 | 1.50 | 1.60 | • | ||
| 16IR 8 STACME IC908 | 9.52 | 8.0 | 16.49 | 1.50 | 1.60 | • | ||
| 16IR 6 STACME IC250 | 9.52 | 6.0 | 16.49 | 1.80 | 1.80 | • | ||
| 16IR 6 STACME IC908 | 9.52 | 6.0 | 16.49 | 1.70 | 1.60 | • | ||
| 22IL 5 STACME IC50M | 12.70 | 5.0 | 22.00 | 2.30 | 2.00 | • | ||
| 22IR 5 STACME IC50M | 12.70 | 5.0 | 22.00 | 2.30 | 2.00 | • | ||
| 22IR 4 STACME IC908 | 12.70 | 4.0 | 22.00 | 2.40 | 2.30 | • | ||
| 22UIRL 3 STACME IC250 | 12.70 | 3.0 | 22.00 | 11.00 | 3.30 | • | ||
| 27IL 4 STACME IC50M | 15.88 | 4.0 | 27.50 | 2.40 | 2.30 | • | ||
| 27IR 4 STACME IC908 | 15.88 | 4.0 | 27.50 | 2.40 | 2.30 | • | ||
| 27IL 3 STACME IC250 | 15.88 | 3.0 | 27.50 | 2.90 | 2.90 | • | ||
| 27IR 3 STACME IC250 | 15.88 | 3.0 | 27.50 | 2.90 | 2.90 | • |
(1) Витки на дюйм
Допуск: Класс 2G
Инструменты на страницах: AVC-D-SIR/L (805) • C#-SIR/L (803) • SIR/L (801)
