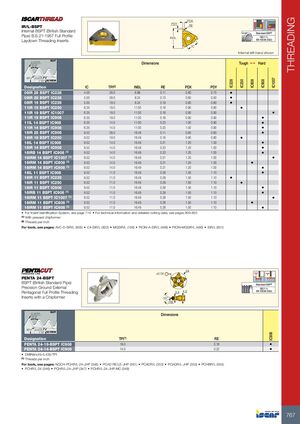

НАРЕЗАНИЕ РЕЗЬБЫ
IR/L-BSPT
Державки резцов для нарезания внутренней резьбы BSPT по B.S.21-1957 с полным профилем
Стандарт: ISO 7-1, EN 10226 (1&2)
| Обозначение | IC | ВНМ(2) | INSL | RE | PDX | PDY | IC228 | IC250 | IC808 | IC908 | IC1007 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 06IR 28 BSPT IC228 | 4.00 | 28.0 | 6.88 | 0.11 | 0.60 | 0.70 | • | ||||
| 08IR 28 BSPT IC228 | 5.00 | 28.0 | 8.24 | 0.13 | 0.60 | 0.50 | • | ||||
| 08IR 19 BSPT IC228 | 5.00 | 19.0 | 8.24 | 0.18 | 0.80 | 0.60 | • | ||||
| 11IR 19 BSPT IC250 | 6.35 | 19.0 | 11.00 | 0.16 | 0.90 | 0.80 | • | ||||
| 11IR 19 BSPT IC1007 | 6.35 | 19.0 | 11.00 | 0.16 | 0.90 | 0.90 | • | ||||
| 11IR 19 BSPT IC908 | 6.35 | 19.0 | 11.00 | 0.16 | 0.90 | 0.90 | • | ||||
| 11IL 14 BSPT IC908 | 6.35 | 14.0 | 11.00 | 0.23 | 1.00 | 0.90 | • | ||||
| 11IR 14 BSPT IC908 | 6.35 | 14.0 | 11.00 | 0.23 | 1.00 | 0.90 | • | ||||
| 16IR 28 BSPT IC908 | 9.52 | 28.0 | 16.49 | 0.11 | 0.60 | 0.60 | • | ||||
| 16IR 19 BSPT IC250 | 9.52 | 19.0 | 16.49 | 0.16 | 0.90 | 0.80 | • | ||||
| 16IL 14 BSPT IC908 | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | • | ||||
| 16IR 14 BSPT IC908 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | • | ||||
| 16IRB 14 BSPT IC908 (1) | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | • | ||||
| 16IRM 14 BSPT IC1007 (1) | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | • | ||||
| 16IRM 14 BSPT IC808 (1) | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | • | ||||
| 16IRM 14 BSPT IC908 (1) | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | • | ||||
| 16IL 11 BSPT IC908 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | • | ||||
| 16IR 11 BSPT IC228 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | • | ||||
| 16IR 11 BSPT IC250 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | • | ||||
| 16IR 11 BSPT IC908 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | • | ||||
| 16IRB 11 BSPT IC908 (1) | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | • | ||||
| 16IRM 11 BSPT IC1007 (1) | 9.52 | 11.0 | 16.49 | 0.28 | 1.50 | 1.10 | • | ||||
| 16IRM 11 BSPT IC808 (1) | 9.52 | 11.0 | 16.49 | 0.28 | 1.50 | 1.10 | • | ||||
| 16IRM 11 BSPT IC908 (1) | 9.52 | 11.0 | 16.49 | 0.28 | 1.50 | 1.10 | • |
(1) С прессованным средством дробления стружки
(2) Витки на дюйм
Инструменты на страницах: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
PENTA 24-BSPT
Прецизионно шлифованные державки резцов с пятиугольным полным профилем для нарезания резьбы BSPT со средством дробления стружки
Стандарт: ISO 7-1, EN 10226 (1&2)
| Обозначение | ВНМ(1) | RE | IC908 |
|---|---|---|---|
| PENTA 24-19-BSPT IC908 | 19.0 | 0.16 | • |
| PENTA 24-14-BSPT IC908 | 14.0 | 0.22 | • |
DMIN(дюйм)=5.435/ВНМ
(1) Витки на дюйм
Инструменты на страницах: NQCH-PCHR/L-24-JHP (348) • PCAD RE/LE-JHP (561) • PCADR/L (353) • PCADR/L-JHP (353) • PCHBR/L (355) • PCHR/L-24 (346) • PCHR/L-24-JHP (347) • PCHR/L-24-JHP-MC (348)
