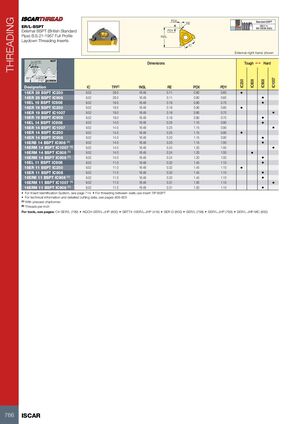

НАРЕЗАНИЕ РЕЗЬБЫ
ER/L-BSPT
Державки резцов для нарезания внешней резьбы BSPT по B.S.21-1957 с полным профилем
Стандарт: ISO 7-1, EN 10226 (1&2)
| Обозначение | IC | ВНМ(2) | INSL | RE | PDX | PDY | IC250 | IC808 | IC908 | IC1007 |
|---|---|---|---|---|---|---|---|---|---|---|
| 16ER 28 BSPT IC250 | 9.52 | 28.0 | 16.49 | 0.11 | 0.60 | 0.60 | • | |||
| 16ER 28 BSPT IC908 | 9.52 | 28.0 | 16.49 | 0.11 | 0.60 | 0.60 | • | |||
| 16EL 19 BSPT IC908 | 9.52 | 19.0 | 16.49 | 0.16 | 0.80 | 0.70 | • | |||
| 16ER 19 BSPT IC250 | 9.52 | 19.0 | 16.49 | 0.16 | 0.90 | 0.80 | • | |||
| 16ER 19 BSPT IC1007 | 9.52 | 19.0 | 16.49 | 0.16 | 0.80 | 0.70 | • | |||
| 16ER 19 BSPT IC908 | 9.52 | 19.0 | 16.49 | 0.16 | 0.80 | 0.70 | • | |||
| 16EL 14 BSPT IC908 | 9.52 | 14.0 | 16.49 | 0.25 | 1.15 | 0.90 | • | |||
| 16ER 14 BSPT IC1007 | 9.52 | 14.0 | 16.49 | 0.25 | 1.15 | 0.90 | • | |||
| 16ER 14 BSPT IC250 | 9.52 | 14.0 | 16.49 | 0.25 | 1.15 | 0.90 | • | |||
| 16ER 14 BSPT IC908 | 9.52 | 14.0 | 16.49 | 0.25 | 1.15 | 0.90 | • | |||
| 16ERB 14 BSPT IC908 (1) | 9.52 | 14.0 | 16.49 | 0.23 | 1.15 | 1.00 | • | |||
| 16ERM 14 BSPT IC1007 (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1.20 | 1.00 | • | |||
| 16ERM 14 BSPT IC808 (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1.20 | 1.00 | • | |||
| 16ERM 14 BSPT IC908 (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1.20 | 1.00 | • | |||
| 16EL 11 BSPT IC908 | 9.52 | 11.0 | 16.49 | 0.32 | 1.45 | 1.10 | • | |||
| 16ER 11 BSPT IC250 | 9.52 | 11.0 | 16.49 | 0.32 | 1.45 | 1.10 | • | |||
| 16ER 11 BSPT IC908 | 9.52 | 11.0 | 16.49 | 0.32 | 1.45 | 1.10 | • | |||
| 16ERB 11 BSPT IC908 (1) | 9.52 | 11.0 | 16.49 | 0.32 | 1.45 | 1.10 | • | |||
| 16ERM 11 BSPT IC1007 (1) | 9.52 | 11.0 | 16.49 | 0.31 | 1.50 | 1.10 | • | |||
| 16ERM 11 BSPT IC908 (1) | 9.52 | 11.0 | 16.49 | 0.31 | 1.50 | 1.10 | • |
(1) С прессованным средством дробления стружки
(2) Витки на дюйм
Инструменты на страницах: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
