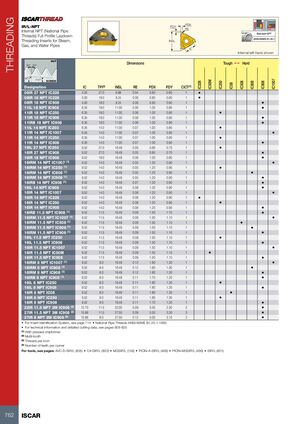

НАРЕЗАНИЕ РЕЗЬБ
IR/L-NPT
Пластины для обработки внутренней резьбы NPT (трубная резьба по национальному стандарту) полного профиля для паро-, газо- и водопроводных труб
Стандарт NPT: ANSI/ASME B1.20.1
Показано: Левостороннее нарезание
| Обозначение | IC | Витки на дюйм (VPD) | INSL | RE | PDX | PDY | CICT | IC228 | IC250 | IC50M | IC508 | IC808 | IC1007 | IC908 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06IR 27 NPT IC228 | 4.00 | 27.0 | 6.88 | 0.04 | 0.60 | 0.60 | 1 | • | ||||||
| 08IR 18 NPT IC228 | 5.00 | 18.0 | 8.24 | 0.06 | 0.80 | 0.60 | 1 | • | ||||||
| 08IR 18 NPT IC908 | 5.00 | 18.0 | 8.24 | 0.06 | 0.80 | 0.60 | 1 | • | ||||||
| 11IL 18 NPT IC908 | 6.35 | 18.0 | 11.00 | 0.06 | 1.00 | 0.80 | 1 | • | ||||||
| 11IR 18 NPT IC250 | 6.35 | 18.0 | 11.00 | 0.06 | 1.00 | 0.80 | 1 | • | ||||||
| 11IR 18 NPT IC908 | 6.35 | 18.0 | 11.00 | 0.06 | 1.00 | 0.80 | 1 | • | ||||||
| 11IRB 18 NPT IC908 | 6.35 | 18.0 | 11.00 | 0.06 | 1.00 | 0.80 | 1 | • | ||||||
| 11IL 14 NPT IC250 | 6.35 | 14.0 | 11.00 | 0.07 | 1.00 | 0.80 | 1 | • | ||||||
| 11IR 14 NPT IC1007 | 6.35 | 14.0 | 11.00 | 0.07 | 1.00 | 0.80 | 1 | • | ||||||
| 11IR 14 NPT IC250 | 6.35 | 14.0 | 11.00 | 0.07 | 1.00 | 0.80 | 1 | • | ||||||
| 11IR 14 NPT IC908 | 6.35 | 14.0 | 11.00 | 0.07 | 1.00 | 0.80 | 1 | • | ||||||
| 16IL 27 NPT IC250 | 9.52 | 27.0 | 16.49 | 0.05 | 0.80 | 0.70 | 1 | • | ||||||
| 16IR 27 NPT IC908 | 9.52 | 27.0 | 16.49 | 0.05 | 0.80 | 0.70 | 1 | • | ||||||
| 16IR 18 NPT IC908 | 9.52 | 18.0 | 16.49 | 0.06 | 1.00 | 0.80 | 1 | • | ||||||
| 16IRM 14 NPT IC1007 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||||
| 16IRM 14 NPT IC250 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||||
| 16IRM 14 NPT IC808 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||||
| 16IRM 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||||
| 16IRB 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.07 | 1.20 | 0.90 | 1 | • | ||||||
| 16IL 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.08 | 1.20 | 0.90 | 1 | • | ||||||
| 16IR 14 NPT IC1007 | 9.52 | 14.0 | 16.49 | 0.08 | 1.20 | 0.90 | 1 | • | ||||||
| 16IR 14 NPT IC228 | 9.52 | 14.0 | 16.49 | 0.08 | 1.20 | 0.90 | 1 | • | ||||||
| 16IR 14 NPT IC250 | 9.52 | 14.0 | 16.49 | 0.08 | 1.20 | 0.90 | 1 | • | ||||||
| 16IR 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.08 | 1.20 | 0.90 | 1 | • | ||||||
| 16IRB 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IRM 11.5 NPT IC1007 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IRM 11.5 NPT IC508 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IRM 11.5 NPT IC808 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IRM 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IL 11.5 NPT IC250 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IL 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IR 11.5 NPT IC1007 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IR 11.5 NPT IC50M | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IR 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||||
| 16IRM 8 NPT IC1007 | 9.52 | 8.0 | 16.49 | 0.12 | 1.80 | 1.30 | 1 | • | ||||||
| 16IRM 8 NPT IC808 | 9.52 | 8.0 | 16.49 | 0.12 | 1.80 | 1.30 | 1 | • | ||||||
| 16IRM 8 NPT IC908 | 9.52 | 8.0 | 16.49 | 0.12 | 1.80 | 1.30 | 1 | • | ||||||
| 16IRB 8 NPT IC908 | 9.52 | 8.0 | 16.49 | 0.11 | 1.70 | 1.20 | 1 | • | ||||||
| 16IL 8 NPT IC250 | 9.52 | 8.0 | 16.49 | 0.11 | 1.80 | 1.30 | 1 | • | ||||||
| 16IL 8 NPT IC908 | 9.52 | 8.0 | 16.49 | 0.11 | 1.80 | 1.30 | 1 | • | ||||||
| 16IR 8 NPT IC08 | 9.52 | 8.0 | 16.49 | 0.11 | 1.80 | 1.30 | 1 | |||||||
| 16IR 8 NPT IC250 | 9.52 | 8.0 | 16.49 | 0.11 | 1.80 | 1.30 | 1 | • | ||||||
| 16IR 8 NPT IC908 | 9.52 | 8.0 | 16.49 | 0.11 | 1.70 | 1.20 | 1 | • | ||||||
| 22IR 11.5 NPT 2M IC908 | 12.70 | 11.5 | 22.00 | 0.09 | 3.50 | 2.30 | 2 | • | ||||||
| 27IR 11.5 NPT 3M IC908 | 15.88 | 11.5 | 27.50 | 0.09 | 5.50 | 3.30 | 3 | • | ||||||
| 27IR 8 NPT 2M IC908 | 15.88 | 8.0 | 27.50 | 0.12 | 5.00 | 3.10 | 2 | • |
Для системы идентификации пластин см. страницу 714. Трубная резьба по национальному стандарту ANSI/ASME B1.20.1-1983. С приклеенным стружколомом. Многозубая.
Для державок см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
