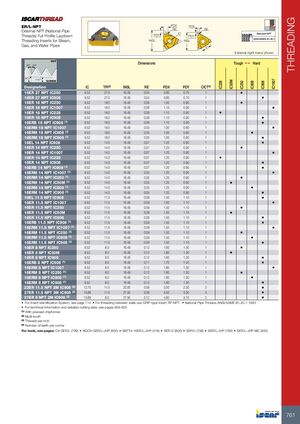

НАРЕЗАНИЕ РЕЗЬБ
ER/L-NPT
Пластины для обработки наружной резьбы NPT (трубная резьба по национальному стандарту) полного профиля для паро-, газо- и водопроводных труб
Стандарт NPT: ANSI/ASME B1.20.1
Показано: Правостороннее нарезание
| Обозначение | IC | Витки на дюйм (VPD) | INSL | RE | PDX | PDY | CICT | IC228 | IC250 | IC50M | IC808 | IC908 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16ER 27 NPT IC250 | 9.52 | 27.0 | 16.49 | 0.04 | 0.80 | 0.70 | 1 | • | ||||
| 16ER 27 NPT IC908 | 9.52 | 27.0 | 16.49 | 0.04 | 0.80 | 0.70 | 1 | • | ||||
| 16ER 18 NPT IC250 | 9.52 | 18.0 | 16.49 | 0.06 | 1.00 | 0.80 | 1 | • | ||||
| 16ER 18 NPT IC1007 | 9.52 | 18.0 | 16.49 | 0.06 | 1.10 | 0.90 | 1 | • | ||||
| 16ER 18 NPT IC228 | 9.52 | 18.0 | 16.49 | 0.06 | 1.10 | 0.90 | 1 | • | ||||
| 16ER 18 NPT IC908 | 9.52 | 18.0 | 16.49 | 0.06 | 1.10 | 0.90 | 1 | • | ||||
| 16ERB 18 NPT IC908 | 9.52 | 18.0 | 16.49 | 0.06 | 1.10 | 0.90 | 1 | • | ||||
| 16ERM 18 NPT IC1007 | 9.52 | 18.0 | 16.49 | 0.05 | 1.00 | 0.80 | 1 | • | ||||
| 16ERM 18 NPT IC808 | 9.52 | 18.0 | 16.49 | 0.05 | 1.00 | 0.80 | 1 | • | ||||
| 16ERM 18 NPT IC908 | 9.52 | 18.0 | 16.49 | 0.05 | 1.00 | 0.80 | 1 | • | ||||
| 16EL 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.07 | 1.20 | 0.90 | 1 | • | ||||
| 16ER 14 NPT IC250 | 9.52 | 14.0 | 16.49 | 0.07 | 1.20 | 0.90 | 1 | • | ||||
| 16ER 14 NPT IC1007 | 9.52 | 14.0 | 16.49 | 0.07 | 1.20 | 0.90 | 1 | • | ||||
| 16ER 14 NPT IC228 | 9.52 | 14.0 | 16.49 | 0.07 | 1.20 | 0.90 | 1 | • | ||||
| 16ER 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.07 | 1.20 | 0.90 | 1 | • | ||||
| 16ERB 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.07 | 1.20 | 0.90 | 1 | • | ||||
| 16ERM 14 NPT IC1007 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||
| 16ERM 14 NPT IC250 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||
| 16ERM 14 NPT IC50M | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||
| 16ERM 14 NPT IC808 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||
| 16ERM 14 NPT IC908 | 9.52 | 14.0 | 16.49 | 0.05 | 1.20 | 0.90 | 1 | • | ||||
| 16EL 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ER 11.5 NPT IC1007 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ER 11.5 NPT IC250 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ER 11.5 NPT IC50M | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ER 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ERB 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ERM 11.5 NPT IC1007 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ERM 11.5 NPT IC250 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ERM 11.5 NPT IC808 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ERM 11.5 NPT IC908 | 9.52 | 11.5 | 16.49 | 0.09 | 1.50 | 1.10 | 1 | • | ||||
| 16ER 8 NPT IC250 | 9.52 | 8.0 | 16.49 | 0.12 | 1.60 | 1.30 | 1 | • | ||||
| 16ER 8 NPT IC50M | 9.52 | 8.0 | 16.49 | 0.12 | 1.60 | 1.30 | 1 | • | ||||
| 16ER 8 NPT IC908 | 9.52 | 8.0 | 16.49 | 0.12 | 1.60 | 1.30 | 1 | • | ||||
| 16ERB 8 NPT IC908 | 9.52 | 8.0 | 16.49 | 0.11 | 1.70 | 1.40 | 1 | • | ||||
| 16ERM 8 NPT IC1007 | 9.52 | 8.0 | 16.49 | 0.12 | 1.80 | 1.30 | 1 | • | ||||
| 16ERM 8 NPT IC250 | 9.52 | 8.0 | 16.49 | 0.12 | 1.80 | 1.30 | 1 | • | ||||
| 16ERM 8 NPT IC808 | 9.52 | 8.0 | 16.49 | 0.12 | 1.80 | 1.30 | 1 | • | ||||
| 16ERM 8 NPT IC908 | 9.52 | 8.0 | 16.49 | 0.12 | 1.80 | 1.30 | 1 | • | ||||
| 22ER 11.5 NPT 2M IC908 | 12.70 | 11.5 | 22.00 | 0.09 | 3.50 | 2.30 | 2 | • | ||||
| 27ER 11.5 NPT 3M IC908 | 15.88 | 11.5 | 27.50 | 0.09 | 5.50 | 3.30 | 3 | • | ||||
| 27ER 8 NPT 2M IC908 | 15.88 | 8.0 | 27.50 | 0.12 | 4.90 | 3.10 | 2 | • |
Для системы идентификации пластин см. страницу 714. Для нарезания резьбы между стенками используйте пластину типа GRIP TIP-NPT. Трубная резьба по национальному стандарту ANSI/ASME B1.20.1-1983.
С приклеенным стружколомом. Многозубая.
Для державок см. страницы: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
