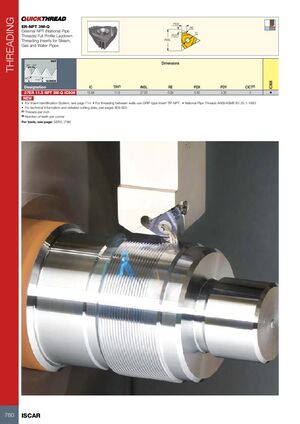

НАРЕЗАНИЕ РЕЗЬБ
ER-NPT 3M-Q
Пластины для обработки наружной резьбы NPT (трубная резьба по национальному стандарту) полного профиля для паро-, газо- и водопроводных труб
| Обозначение | IC | Витки на дюйм (VPD) | INSL | RE | PDX | PDY | CICT | IC908 |
|---|---|---|---|---|---|---|---|---|
| 27ER 11.5 NPT 3M-Q IC908 | 11.5 | 27.00 | 0.09 | 5.50 | 3.30 | 3 | • |
Для системы идентификации пластин см. страницу 714. Для нарезания резьбы между стенками используйте пластину типа GRIP TIP-NPT. Трубная резьба по национальному стандарту ANSI/ASME B1.20.1-1983.
Для державок см. страницу: SER/L (798)
НОВОЕ
