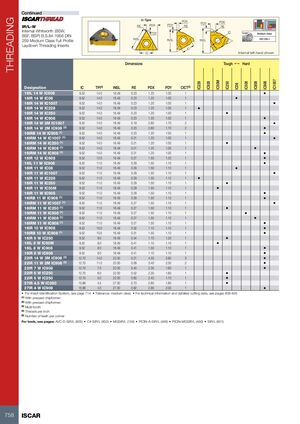

РЕЗЬБОНАРЕЗАНИЕ Продолжение
IR/L-W
Резьбовые пластины Уитворт внутренние (BSW, BSF, BSP) B.S.84-1956 DIN 259, средний класс точности, полный профиль, укладываемые
| Обозначение | IC | TPI(4) | INSL | RE | PDX | PDY | CICT(5) | IC1007 | IC50M | IC228 | IC928 | IC250 | IC508 | IC808 | IC908 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16IL 14 W IC908 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 | • | |||||||
| 16IR 14 W IC08 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 | • | |||||||
| 16IR 14 W IC1007 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 | • | |||||||
| 16IR 14 W IC228 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 | • | |||||||
| 16IR 14 W IC250 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 | • | |||||||
| 16IR 14 W IC908 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 | • | |||||||
| 16IR 14 W 2M IC1007 | 9.52 | 14.0 | 16.49 | 0.19 | 2.60 | 1.70 | 2 | • | |||||||
| 16IR 14 W 2M IC908 (3) | 9.52 | 14.0 | 16.49 | 0.23 | 2.60 | 1.70 | 2 | • | |||||||
| 16IRB 14 W IC908 (1) | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 | • | |||||||
| 16IRM 14 W IC1007 (1) | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | 1 | • | |||||||
| 16IRM 14 W IC250 (1) | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | 1 | • | |||||||
| 16IRM 14 W IC808 (1) | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | 1 | • | |||||||
| 16IRM 14 W IC908 (1) | 9.52 | 14.0 | 16.49 | 0.21 | 1.20 | 1.00 | 1 | • | |||||||
| 16IR 12 W IC908 | 9.52 | 12.0 | 16.49 | 0.27 | 1.50 | 1.20 | 1 | • | |||||||
| 16IL 11 W IC908 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 11 W IC08 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 11 W IC1007 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 11 W IC228 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 11 W IC250 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 11 W IC50M | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 11 W IC908 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 | • | |||||||
| 16IRB 11 W IC908 (1) | 9.52 | 11.0 | 16.49 | 0.28 | 1.50 | 1.10 | 1 | • | |||||||
| 16IRM 11 W IC1007 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1.50 | 1.10 | 1 | • | |||||||
| 16IRM 11 W IC250 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1.50 | 1.10 | 1 | • | |||||||
| 16IRM 11 W IC508 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1.50 | 1.10 | 1 | • | |||||||
| 16IRM 11 W IC808 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1.50 | 1.10 | 1 | • | |||||||
| 16IRM 11 W IC908 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 10 W IC908 | 9.52 | 10.0 | 16.49 | 0.32 | 1.10 | 1.10 | 1 | • | |||||||
| 16IRB 10 W IC908 (1) | 9.52 | 10.0 | 16.49 | 0.31 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 9 W IC250 | 9.52 | 9.0 | 16.49 | 0.34 | 1.70 | 1.20 | 1 | • | |||||||
| 16IL 8 W IC50M | 9.52 | 8.0 | 16.49 | 0.41 | 1.10 | 1.10 | 1 | • | |||||||
| 16IL 8 W IC908 | 9.52 | 8.0 | 16.49 | 0.41 | 1.50 | 1.10 | 1 | • | |||||||
| 16IR 8 W IC908 | 9.52 | 8.0 | 16.49 | 0.41 | 1.10 | 1.10 | 1 | • | |||||||
| 22IR 14 W 3M IC908 (3) | 12.70 | 14.0 | 22.00 | 0.21 | 4.50 | 2.80 | 3 | • | |||||||
| 22IR 11 W 2M IC908 (3) | 12.70 | 11.0 | 22.00 | 0.09 | 3.40 | 2.30 | 2 | • | |||||||
| 22IR 7 W IC908 | 12.70 | 7.0 | 22.00 | 0.45 | 2.30 | 1.60 | 1 | • | |||||||
| 22IR 6 W IC250 | 12.70 | 6.0 | 22.00 | 0.52 | 2.30 | 1.60 | 1 | • | |||||||
| 22IR 5 W IC250 | 12.70 | 5.0 | 22.00 | 0.65 | 2.40 | 1.70 | 1 | • | |||||||
| 27IR 4.5 W IC250 | 15.88 | 4.5 | 27.50 | 0.73 | 2.60 | 1.80 | 1 | • | |||||||
| 27IR 4 W IC908 | 15.88 | 4.0 | 27.50 | 0.82 | 2.90 | 2.00 | 1 | • |
• Для системы идентификации пластин см. страницу 714 • Допуск: средний класс • Для технической информации и детальных данных резания см. страницы 809-825
(1) С прессованным отводчиком стружки
(2) С прессованным отводчиком стружки
(3) Многозубчатая
(4) витков на дюйм
(5) Количество режущих кромок на углу
Для инструментов см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
