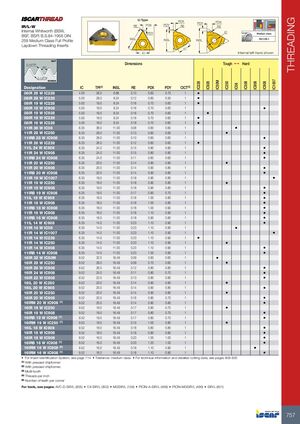

РЕЗЬБОНАРЕЗАНИЕ
IR/L-W
Резьбовые пластины Уитворт внутренние (BSW, BSF, BSP) B.S.84-1956 DIN 259, средний класс точности, полный профиль, укладываемые
| Обозначение | IC | TPI(4) | INSL | RE | PDX | PDY | CICT(5) | IC1007 | IC50M | IC228 | IC928 | IC250 | IC508 | IC808 | IC908 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06IR 26 W IC228 | 4.00 | 26.0 | 6.88 | 0.10 | 0.60 | 0.70 | 1 | • | |||||||
| 08IR 28 W IC228 | 5.00 | 28.0 | 8.24 | 0.12 | 0.60 | 0.50 | 1 | • | |||||||
| 08IR 19 W IC228 | 5.00 | 19.0 | 8.24 | 0.16 | 0.70 | 0.60 | 1 | • | |||||||
| 08IR 19 W IC908 | 5.00 | 19.0 | 8.24 | 0.16 | 0.70 | 0.60 | 1 | • | |||||||
| 08IR 19 W IC928 | 5.00 | 19.0 | 8.24 | 0.16 | 0.70 | 0.60 | 1 | • | |||||||
| 08IR 18 W IC228 | 5.00 | 18.0 | 8.24 | 0.16 | 0.70 | 0.60 | 1 | • | |||||||
| 08IR 16 W IC228 | 5.00 | 16.0 | 8.24 | 0.18 | 0.70 | 0.60 | 1 | • | |||||||
| 11IR 36 W IC08 | 6.35 | 36.0 | 11.00 | 0.08 | 0.60 | 0.60 | 1 | • | |||||||
| 11IR 28 W IC250 | 6.35 | 28.0 | 11.00 | 0.13 | 0.60 | 0.60 | 1 | • | |||||||
| 11IRB 28 W IC908 | 6.35 | 28.0 | 11.00 | 0.10 | 0.60 | 0.60 | 1 | • | |||||||
| 11IR 26 W IC228 | 6.35 | 26.0 | 11.00 | 0.12 | 0.60 | 0.60 | 1 | • | |||||||
| 11IL 24 W IC908 | 6.35 | 24.0 | 11.00 | 0.15 | 0.80 | 0.80 | 1 | • | |||||||
| 11IR 24 W IC908 | 6.35 | 24.0 | 11.00 | 0.15 | 0.80 | 0.80 | 1 | • | |||||||
| 11IRB 24 W IC908 | 6.35 | 24.0 | 11.00 | 0.11 | 0.60 | 0.60 | 1 | • | |||||||
| 11IR 20 W IC250 | 6.35 | 20.0 | 11.00 | 0.14 | 0.90 | 0.80 | 1 | • | |||||||
| 11IR 20 W IC908 | 6.35 | 20.0 | 11.00 | 0.14 | 0.90 | 0.80 | 1 | • | |||||||
| 11IRB 20 W IC908 | 6.35 | 20.0 | 11.00 | 0.14 | 0.90 | 0.80 | 1 | • | |||||||
| 11IR 19 W IC1007 | 6.35 | 19.0 | 11.00 | 0.18 | 0.90 | 0.80 | 1 | • | |||||||
| 11IR 19 W IC250 | 6.35 | 19.0 | 11.00 | 0.18 | 0.90 | 0.80 | 1 | • | |||||||
| 11IR 19 W IC908 | 6.35 | 19.0 | 11.00 | 0.18 | 0.90 | 0.80 | 1 | • | |||||||
| 11IRB 19 W IC908 | 6.35 | 19.0 | 11.00 | 0.17 | 0.90 | 0.70 | 1 | • | |||||||
| 11IL 18 W IC908 | 6.35 | 18.0 | 11.00 | 0.16 | 1.00 | 0.80 | 1 | • | |||||||
| 11IR 18 W IC908 | 6.35 | 18.0 | 11.00 | 0.18 | 1.00 | 0.80 | 1 | • | |||||||
| 11IRB 18 W IC908 | 6.35 | 18.0 | 11.00 | 0.18 | 1.00 | 0.90 | 1 | • | |||||||
| 11IR 16 W IC908 | 6.35 | 16.0 | 11.00 | 0.18 | 1.10 | 0.90 | 1 | • | |||||||
| 11IRB 16 W IC908 | 6.35 | 16.0 | 11.00 | 0.18 | 0.90 | 0.80 | 1 | • | |||||||
| 11IL 14 W IC908 | 6.35 | 14.0 | 11.00 | 0.23 | 1.10 | 0.90 | 1 | • | |||||||
| 11IR 14 W IC08 | 6.35 | 14.0 | 11.00 | 0.23 | 1.10 | 0.90 | 1 | • | |||||||
| 11IR 14 W IC1007 | 6.35 | 14.0 | 11.00 | 0.23 | 1.10 | 0.90 | 1 | • | |||||||
| 11IR 14 W IC228 | 6.35 | 14.0 | 11.00 | 0.23 | 1.10 | 0.90 | 1 | • | |||||||
| 11IR 14 W IC250 | 6.35 | 14.0 | 11.00 | 0.23 | 1.10 | 0.90 | 1 | • | |||||||
| 11IR 14 W IC908 | 6.35 | 14.0 | 11.00 | 0.23 | 1.10 | 0.90 | 1 | • | |||||||
| 11IRB 14 W IC908 | 6.35 | 14.0 | 11.00 | 0.23 | 1.00 | 0.90 | 1 | • | |||||||
| 16IR 32 W IC50M | 9.52 | 32.0 | 16.49 | 0.09 | 0.60 | 0.60 | 1 | • | |||||||
| 16IR 28 W IC250 | 9.52 | 28.0 | 16.49 | 0.09 | 0.70 | 0.60 | 1 | • | |||||||
| 16IR 26 W IC908 | 9.52 | 26.0 | 16.49 | 0.12 | 0.80 | 0.80 | 1 | • | |||||||
| 16IR 24 W IC908 | 9.52 | 24.0 | 16.49 | 0.11 | 0.80 | 0.70 | 1 | • | |||||||
| 16IR 22 W IC908 | 9.52 | 22.0 | 16.49 | 0.13 | 0.90 | 0.80 | 1 | • | |||||||
| 16IL 20 W IC250 | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 | • | |||||||
| 16IL 20 W IC908 | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 | • | |||||||
| 16IR 20 W IC250 | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 | • | |||||||
| 16IR 20 W IC908 | 9.52 | 20.0 | 16.49 | 0.16 | 0.80 | 0.70 | 1 | • | |||||||
| 16IRM 20 W IC908 (1) | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 | • | |||||||
| 16IR 19 W IC250 | 9.52 | 19.0 | 16.49 | 0.17 | 0.80 | 0.70 | 1 | • | |||||||
| 16IR 19 W IC908 | 9.52 | 19.0 | 16.49 | 0.17 | 0.80 | 0.70 | 1 | • | |||||||
| 16IRB 19 W IC908 (1) | 9.52 | 19.0 | 16.49 | 0.17 | 0.80 | 0.70 | 1 | • | |||||||
| 16IRM 19 W IC250 (1) | 9.52 | 19.0 | 16.49 | 0.15 | 1.00 | 0.80 | 1 | • | |||||||
| 16IL 18 W IC908 | 9.52 | 18.0 | 16.49 | 0.18 | 0.80 | 0.80 | 1 | • | |||||||
| 16IR 18 W IC908 | 9.52 | 18.0 | 16.49 | 0.18 | 0.80 | 0.80 | 1 | • | |||||||
| 16IR 16 W IC908 | 9.52 | 16.0 | 16.49 | 0.20 | 1.00 | 1.00 | 1 | • | |||||||
| 16IRB 16 W IC908 (1) | 9.52 | 16.0 | 16.49 | 0.20 | 1.20 | 1.00 | 1 | • | |||||||
| 16IRM 16 W IC808 (2) | 9.52 | 16.0 | 16.49 | 0.18 | 1.10 | 0.90 | 1 | • | |||||||
| 16IRM 16 W IC908 (1) | 9.52 | 16.0 | 16.49 | 0.18 | 1.10 | 0.90 | 1 | • |
• Для системы идентификации пластин см. страницу 714 • Допуск: средний класс • Для технической информации и детальных данных резания см. страницы 809-825
(1) С прессованным отводчиком стружки
(2) С прессованным отводчиком стружки
(3) Многозубчатая
(4) витков на дюйм
(5) Количество режущих кромок на углу
Для инструментов см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
