РЕЗЬБОНАРЕЗАНИЕ Продолжение
ER/L-W

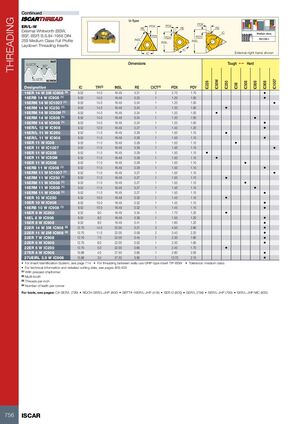

Резьбовые пластины Уитворт наружные (BSW, BSF, BSP) B.S.84-1956 DIN 259, средний класс точности, полный профиль, укладываемые
| Обозначение | IC | TPI(3) | INSL | RE | CICT(4) | PDX | PDY | IC1007 | IC50M | IC228 | IC250 | IC508 | IC808 | IC908 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16ER 14 W 2M IC908 (2) | 9.52 | 14.0 | 16.49 | 0.21 | 2 | 2.70 | 1.70 | • | ||||||
| 16ERB 14 W IC908 (1) | 9.52 | 14.0 | 16.49 | 0.23 | 1 | 1.20 | 1.00 | • | ||||||
| 16ERM 14 W IC1007 (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1 | 1.20 | 1.00 | • | ||||||
| 16ERM 14 W IC250 (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1 | 1.20 | 1.00 | • | ||||||
| 16ERM 14 W IC50M (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1 | 1.20 | 1.00 | • | ||||||
| 16ERM 14 W IC808 (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1 | 1.20 | 1.00 | • | ||||||
| 16ERM 14 W IC908 (1) | 9.52 | 14.0 | 16.49 | 0.24 | 1 | 1.20 | 1.00 | • | ||||||
| 16ER/L 12 W IC908 | 9.52 | 12.0 | 16.49 | 0.27 | 1 | 1.40 | 1.20 | • | ||||||
| 16ER/L 11 W IC250 | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ER/L 11 W IC908 | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ER 11 W IC08 | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ER 11 W IC1007 | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ER 11 W IC228 | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ER 11 W IC50M | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ER 11 W IC508 | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ERB 11 W IC908 (1) | 9.52 | 11.0 | 16.49 | 0.29 | 1 | 1.50 | 1.10 | • | ||||||
| 16ERM 11 W IC1007 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1 | 1.50 | 1.10 | • | ||||||
| 16ERM 11 W IC250 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1 | 1.50 | 1.10 | • | ||||||
| 16ERM 11 W IC508 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1 | 1.50 | 1.10 | • | ||||||
| 16ERM 11 W IC808 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1 | 1.50 | 1.10 | • | ||||||
| 16ERM 11 W IC908 (1) | 9.52 | 11.0 | 16.49 | 0.27 | 1 | 1.50 | 1.10 | • | ||||||
| 16ER 10 W IC250 | 9.52 | 10.0 | 16.49 | 0.32 | 1 | 1.45 | 1.10 | • | ||||||
| 16ER 10 W IC908 | 9.52 | 10.0 | 16.49 | 0.32 | 1 | 1.45 | 1.10 | • | ||||||
| 16ERB 10 W IC908 (1) | 9.52 | 10.0 | 16.49 | 0.32 | 1 | 1.45 | 1.10 | • | ||||||
| 16ER 9 W IC250 | 9.52 | 9.0 | 16.49 | 0.34 | 1 | 1.70 | 1.20 | • | ||||||
| 16EL 8 W IC908 | 9.52 | 8.0 | 16.49 | 0.39 | 1 | 1.50 | 1.20 | • | ||||||
| 16ER 8 W IC908 | 9.52 | 8.0 | 16.49 | 0.41 | 1 | 1.60 | 1.20 | • | ||||||
| 22ER 14 W 3M IC908 (2) | 12.70 | 14.0 | 22.00 | 0.21 | 3 | 4.50 | 2.80 | • | ||||||
| 22ER 11 W 2M IC908 (2) | 12.70 | 11.0 | 22.00 | 0.09 | 2 | 3.40 | 2.20 | • | ||||||
| 22ER 7 W IC908 | 12.70 | 7.0 | 22.00 | 0.45 | 1 | 2.30 | 1.60 | • | ||||||
| 22ER 6 W IC908 | 12.70 | 6.0 | 22.00 | 0.52 | 1 | 2.30 | 1.60 | • | ||||||
| 22ER 5 W IC250 | 12.70 | 5.0 | 22.00 | 0.65 | 1 | 2.40 | 1.70 | • | ||||||
| 27ER 4 W IC908 | 15.88 | 4.0 | 27.50 | 0.85 | 1 | 2.90 | 2.00 | • | ||||||
| 27UEIRL 3.5 W IC908 | 15.88 | 3.5 | 27.50 | 0.95 | 1 | 13.70 | 2.10 | • |
• Для системы идентификации пластин см. страницу 714 • Для резьбонарезания между стенками используйте резьбовую пластину типа GRIP TIP-BSW • Допуск: средний класс
• Для технической информации и детальных данных резания см. страницы 809-825
(1) С прессованным отводчиком стружки
(2) Многозубчатая
(3) витков на дюйм
(4) Количество режущих кромок на углу
Для инструментов см. страницы: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
