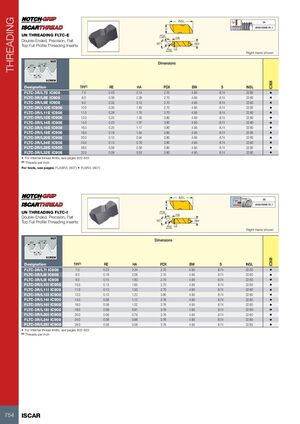

РЕЗЬБОНАРЕЗАНИЕ
UN THREADING FLTC-E
Двусторонние прецизионные резьбовые пластины с полным профилем и плоской вершиной
| Обозначение | TPI(1) | RE | HA | PDX | BW | S | INSL | IC908 |
|---|---|---|---|---|---|---|---|---|
| FLTC-3R/L7E IC908 | 7.0 | 0.43 | 2.74 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L8E IC908 | 8.0 | 0.38 | 2.39 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L9E IC908 | 9.0 | 0.33 | 2.13 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L10E IC908 | 10.0 | 0.30 | 1.93 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L11E IC908 | 11.0 | 0.28 | 1.75 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L12E IC908 | 12.0 | 0.25 | 1.30 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L14E IC908 | 14.0 | 0.23 | 1.37 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L16E IC908 | 16.0 | 0.20 | 1.17 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L18E IC908 | 18.0 | 0.18 | 1.04 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L20E IC908 | 20.0 | 0.15 | 0.94 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L24E IC908 | 24.0 | 0.13 | 0.79 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L28E IC908 | 28.0 | 0.08 | 0.58 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L32E IC908 | 32.0 | 0.08 | 0.53 | 3.80 | 4.95 | 8.74 | 22.60 | • |
• Для пределов внутренней резьбы см. страницы 822-823
(1) витков на дюйм
Для инструментов см. страницы: FLASR/L (807) • FLSR/L (807)
UN THREADING FLTC-I
Двусторонние прецизионные резьбовые пластины с полным профилем и плоской вершиной
| Обозначение | TPI(1) | RE | HA | PDX | BW | S | INSL | IC908 |
|---|---|---|---|---|---|---|---|---|
| FLTC-3R/L7I IC908 | 7.0 | 0.23 | 2.34 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L8I IC908 | 8.0 | 0.18 | 2.06 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L9I IC908 | 9.0 | 0.15 | 1.83 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L10I IC908 | 10.0 | 0.13 | 1.65 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L11I IC908 | 11.0 | 0.13 | 1.50 | 2.70 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L12I IC908 | 12.0 | 0.10 | 1.22 | 3.80 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L14I IC908 | 14.0 | 0.08 | 1.12 | 3.76 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L16I IC908 | 16.0 | 0.08 | 1.02 | 3.76 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L18I IC908 | 18.0 | 0.08 | 0.91 | 3.76 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L20I IC908 | 20.0 | 0.08 | 0.79 | 3.76 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L24I IC908 | 24.0 | 0.08 | 0.66 | 3.76 | 4.95 | 8.74 | 22.60 | • |
| FLTC-3R/L28I IC908 | 28.0 | 0.08 | 0.58 | 3.76 | 4.95 | 8.74 | 22.60 | • |
• Для пределов внутренней резьбы см. страницы 822-823
(1) витков на дюйм
