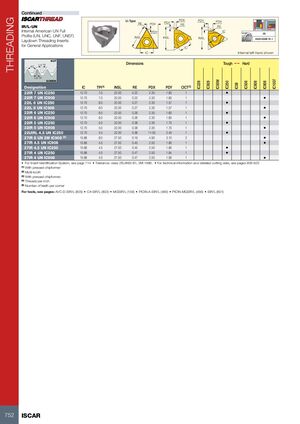

THREADING
U-образный тип
IR/L-UN
Внутренняя резьба американская UN полного профиля (UN, UNC, UNF, UNEF)
Плоские резьбовые пластины для общего применения
Показана внутренняя левовинтовая резьба
Размеры
Класс 2B, ANSI/ASME B1.1
| Обозначение | IC | TPI(4) | INSL | RE | PDX | PDY | CICT(5) |
|---|---|---|---|---|---|---|---|
| 22IR 7 UN IC250 | 12.70 | 7.0 | 22.00 | 0.22 | 2.30 | 1.60 | 1 |
| 22IR 7 UN IC908 | 12.70 | 7.0 | 22.00 | 0.22 | 2.30 | 1.60 | 1 |
| 22IL 6 UN IC250 | 12.70 | 6.0 | 22.00 | 0.27 | 2.30 | 1.57 | 1 |
| 22IL 6 UN IC908 | 12.70 | 6.0 | 22.00 | 0.27 | 2.30 | 1.57 | 1 |
| 22IR 6 UN IC250 | 12.70 | 6.0 | 22.00 | 0.26 | 2.30 | 1.60 | 1 |
| 22IR 6 UN IC908 | 12.70 | 6.0 | 22.00 | 0.26 | 2.30 | 1.60 | 1 |
| 22IR 5 UN IC250 | 12.70 | 5.0 | 22.00 | 0.38 | 2.30 | 1.70 | 1 |
| 22IR 5 UN IC908 | 12.70 | 5.0 | 22.00 | 0.38 | 2.30 | 1.70 | 1 |
| 22UIRL 4.5 UN IC250 | 12.70 | 4.5 | 22.00 | 0.36 | 11.00 | 2.40 | 1 |
| 27IR 8 UN 2M IC908 (2) | 15.88 | 8.0 | 27.50 | 0.19 | 4.90 | 3.10 | 2 |
| 27IR 4.5 UN IC908 | 15.88 | 4.5 | 27.50 | 0.45 | 2.50 | 1.80 | 1 |
| 27IR 4.5 UN IC250 | 15.88 | 4.5 | 27.50 | 0.45 | 2.50 | 1.80 | 1 |
| 27IR 4 UN IC250 | 15.88 | 4.0 | 27.50 | 0.47 | 2.50 | 1.84 | 1 |
| 27IR 4 UN IC908 | 15.88 | 4.0 | 27.50 | 0.47 | 2.50 | 1.90 | 1 |
- Для системы идентификации пластин см. стр. 714
- Допуск: класс 2B, ANSI B1, 3M-1986
- Для технической информации и подробных данных резания см. стр. 809-825
(1) С прессованным чипформером
(2) Многозубые
(3) С прессованным чипформером
(4) Резьбы на дюйм
(5) Количество зубьев на углу
Для инструментов см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
