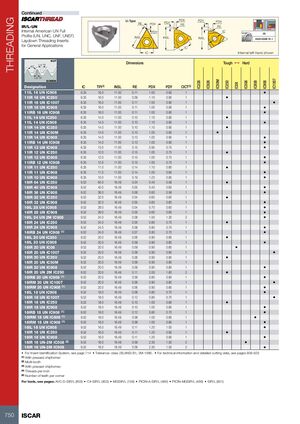

THREADING
U-образный тип
IR/L-UN
Внутренняя резьба американская UN полного профиля (UN, UNC, UNF, UNEF)
Плоские резьбовые пластины для общего применения
Показана внутренняя левовинтовая резьба
Размеры
Класс 2B, ANSI/ASME B1.1
| Обозначение | IC | TPI(4) | INSL | RE | PDX | PDY | CICT(5) |
|---|---|---|---|---|---|---|---|
| 11IL 16 UN IC908 | 6.35 | 16.0 | 11.00 | 0.11 | 1.00 | 0.90 | 1 |
| 11IR 16 UN IC250 | 6.35 | 16.0 | 11.00 | 0.09 | 1.10 | 0.90 | 1 |
| 11IR 16 UN IC1007 | 6.35 | 16.0 | 11.00 | 0.11 | 1.00 | 0.90 | 1 |
| 11IR 16 UN IC908 | 6.35 | 16.0 | 11.00 | 0.11 | 1.00 | 0.90 | 1 |
| 11IRB 16 UN IC908 | 6.35 | 16.0 | 11.00 | 0.11 | 1.00 | 0.90 | 1 |
| 11IL 14 UN IC250 | 6.35 | 14.0 | 11.00 | 0.10 | 1.10 | 0.90 | 1 |
| 11IL 14 UN IC908 | 6.35 | 14.0 | 11.00 | 0.10 | 1.10 | 0.90 | 1 |
| 11IR 14 UN IC250 | 6.35 | 14.0 | 11.00 | 0.10 | 1.10 | 0.90 | 1 |
| 11IR 14 UN IC50M | 6.35 | 14.0 | 11.00 | 0.13 | 1.00 | 0.90 | 1 |
| 11IR 14 UN IC908 | 6.35 | 14.0 | 11.00 | 0.13 | 1.00 | 0.90 | 1 |
| 11IRB 14 UN IC908 | 6.35 | 14.0 | 11.00 | 0.13 | 1.00 | 0.90 | 1 |
| 11IR 13 UN IC908 | 6.35 | 13.0 | 11.00 | 0.15 | 0.95 | 0.75 | 1 |
| 11IR 12 UN IC250 | 6.35 | 12.0 | 11.00 | 0.15 | 1.00 | 0.75 | 1 |
| 11IR 12 UN IC908 | 6.35 | 12.0 | 11.00 | 0.15 | 1.00 | 0.75 | 1 |
| 11IRB 12 UN IC908 | 6.35 | 12.0 | 11.00 | 0.15 | 1.00 | 0.75 | 1 |
| 11IR 11 UN IC250 | 6.35 | 11.0 | 11.00 | 0.14 | 1.10 | 0.80 | 1 |
| 11IR 11 UN IC908 | 6.35 | 11.0 | 11.00 | 0.14 | 1.00 | 0.80 | 1 |
| 11IR 10 UN IC908 | 6.35 | 10.0 | 11.00 | 0.19 | 1.23 | 0.85 | 1 |
| 16IR 64 UN IC250 | 9.52 | 64.0 | 16.49 | 0.04 | 0.40 | 0.58 | 1 |
| 16IR 40 UN IC908 | 9.52 | 40.0 | 16.49 | 0.05 | 0.40 | 0.60 | 1 |
| 16IR 36 UN IC908 | 9.52 | 36.0 | 16.49 | 0.06 | 0.60 | 0.58 | 1 |
| 16IR 32 UN IC250 | 9.52 | 32.0 | 16.49 | 0.04 | 0.60 | 0.60 | 1 |
| 16IR 32 UN IC908 | 9.52 | 32.0 | 16.49 | 0.05 | 0.60 | 0.60 | 1 |
| 16IL 28 UN IC908 | 9.52 | 28.0 | 16.49 | 0.04 | 0.70 | 0.60 | 1 |
| 16IR 28 UN IC908 | 9.52 | 28.0 | 16.49 | 0.05 | 0.60 | 0.60 | 1 |
| 16IL 24 UN 2M IC908 | 9.52 | 24.0 | 16.49 | 0.08 | 1.50 | 1.30 | 2 |
| 16IR 24 UN IC250 | 9.52 | 24.0 | 16.49 | 0.05 | 0.80 | 0.70 | 1 |
| 16IR 24 UN IC908 | 9.52 | 24.0 | 16.49 | 0.08 | 0.80 | 0.70 | 1 |
| 16IRB 24 UN IC908 (1) | 9.52 | 24.0 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IL 20 UN IC250 | 9.52 | 20.0 | 16.49 | 0.06 | 0.90 | 0.80 | 1 |
| 16IL 20 UN IC908 | 9.52 | 20.0 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 20 UN IC08 | 9.52 | 20.0 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 20 UN IC1007 | 9.52 | 20.0 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 20 UN IC250 | 9.52 | 20.0 | 16.49 | 0.06 | 0.90 | 0.80 | 1 |
| 16IR 20 UN IC50M | 9.52 | 20.0 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 20 UN IC908 | 9.52 | 20.0 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 20 UN 2M IC250 | 9.52 | 20.0 | 16.49 | 0.11 | 2.00 | 1.60 | 2 |
| 16IRB 20 UN IC908 (1) | 9.52 | 20.0 | 16.49 | 0.09 | 0.80 | 0.80 | 1 |
| 16IRM 20 UN IC1007 | 9.52 | 20.0 | 16.49 | 0.06 | 0.90 | 0.80 | 1 |
| 16IRM 20 UN IC908 (1) | 9.52 | 20.0 | 16.49 | 0.06 | 0.90 | 0.80 | 1 |
| 16IL 18 UN IC908 | 9.52 | 18.0 | 16.49 | 0.08 | 0.80 | 0.70 | 1 |
| 16IR 18 UN IC1007 | 9.52 | 18.0 | 16.49 | 0.12 | 0.80 | 0.70 | 1 |
| 16IR 18 UN IC250 | 9.52 | 18.0 | 16.49 | 0.10 | 1.00 | 0.80 | 1 |
| 16IR 18 UN IC908 | 9.52 | 18.0 | 16.49 | 0.10 | 1.00 | 0.80 | 1 |
| 16IRB 18 UN IC908 (1) | 9.52 | 18.0 | 16.49 | 0.12 | 0.80 | 0.70 | 1 |
| 16IRM 18 UN IC808 (1) | 9.52 | 18.0 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IRM 18 UN IC908 (1) | 9.52 | 18.0 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IL 16 UN IC908 | 9.52 | 16.0 | 16.49 | 0.11 | 1.20 | 1.00 | 1 |
| 16IR 16 UN IC250 | 9.52 | 16.0 | 16.49 | 0.11 | 1.20 | 0.90 | 1 |
| 16IR 16 UN IC908 | 9.52 | 16.0 | 16.49 | 0.11 | 1.20 | 0.90 | 1 |
| 16IR 16 UN-2M IC508 (2) | 9.52 | 16.0 | 16.49 | 0.09 | 2.30 | 1.50 | 2 |
| 16IR 16 UN-2M IC908 | 9.52 | 16.0 | 16.49 | 0.09 | 2.30 | 1.50 | 2 |
- Для системы идентификации пластин см. стр. 714
- Допуск: класс 2B, ANSI B1, 3M-1986
- Для технической информации и подробных данных резания см. стр. 809-825
(1) С прессованным чипформером
(2) Многозубые
(3) С прессованным чипформером
(4) Резьбы на дюйм
(5) Количество зубьев на углу
Для инструментов см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
