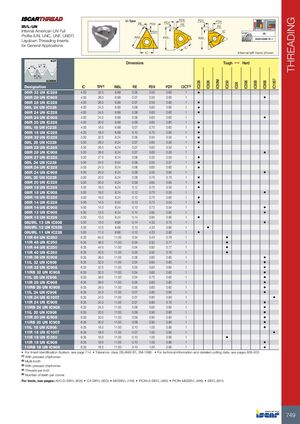

THREADING
U-образный тип
IR/L-UN
Внутренняя резьба американская UN полного профиля (UN, UNC, UNF, UNEF)
Плоские резьбовые пластины для общего применения
Показана внутренняя левовинтовая резьба
Размеры
Класс 2B, ANSI/ASME B1.1
| Обозначение | IC | TPI(4) | INSL | RE | PDX | PDY | CICT(5) |
|---|---|---|---|---|---|---|---|
| 06IR 32 UN IC228 | 4.00 | 32.0 | 6.88 | 0.05 | 0.50 | 0.60 | 1 |
| 06IR 28 UN IC908 | 4.00 | 28.0 | 6.88 | 0.07 | 0.50 | 0.60 | 1 |
| 06IR 28 UN IC228 | 4.00 | 28.0 | 6.88 | 0.07 | 0.50 | 0.60 | 1 |
| 06IL 24 UN IC228 | 4.00 | 24.0 | 6.88 | 0.08 | 0.60 | 0.60 | 1 |
| 06IR 24 UN IC228 | 4.00 | 24.0 | 6.88 | 0.08 | 0.60 | 0.60 | 1 |
| 06IR 24 UN IC908 | 4.00 | 24.0 | 6.88 | 0.08 | 0.60 | 0.60 | 1 |
| 06IR 20 UN IC228 | 4.00 | 20.0 | 6.88 | 0.09 | 0.60 | 0.60 | 1 |
| 06IL 18 UN IC228 | 4.00 | 18.0 | 6.88 | 0.07 | 0.70 | 0.60 | 1 |
| 06IR 18 UN IC228 | 4.00 | 18.0 | 6.88 | 0.10 | 0.70 | 0.60 | 1 |
| 08IR 32 UN IC228 | 5.00 | 32.0 | 8.24 | 0.06 | 0.50 | 0.50 | 1 |
| 08IL 28 UN IC228 | 5.00 | 28.0 | 8.24 | 0.07 | 0.60 | 0.50 | 1 |
| 08IR 28 UN IC228 | 5.00 | 28.0 | 8.24 | 0.07 | 0.60 | 0.50 | 1 |
| 08IR 28 UN IC908 | 5.00 | 28.0 | 8.24 | 0.07 | 0.60 | 0.50 | 1 |
| 08IR 27 UN IC228 | 5.00 | 27.0 | 8.24 | 0.08 | 0.50 | 0.50 | 1 |
| 08IL 24 UN IC228 | 5.00 | 24.0 | 8.24 | 0.08 | 0.55 | 0.57 | 1 |
| 08IR 24 UN IC228 | 5.00 | 24.0 | 8.24 | 0.08 | 0.60 | 0.60 | 1 |
| 08IR 24 UN IC908 | 5.00 | 24.0 | 8.24 | 0.08 | 0.55 | 0.60 | 1 |
| 08IL 20 UN IC228 | 5.00 | 20.0 | 8.24 | 0.08 | 0.70 | 0.70 | 1 |
| 08IR 20 UN IC228 | 5.00 | 20.0 | 8.24 | 0.09 | 0.65 | 0.65 | 1 |
| 08IR 18 UN IC228 | 5.00 | 18.0 | 8.24 | 0.12 | 0.70 | 0.50 | 1 |
| 08IR 18 UN IC908 | 5.00 | 18.0 | 8.24 | 0.12 | 0.70 | 0.55 | 1 |
| 08IR 16 UN IC228 | 5.00 | 16.0 | 8.24 | 0.12 | 0.70 | 0.60 | 1 |
| 08IR 14 UN IC228 | 5.00 | 14.0 | 8.24 | 0.13 | 0.72 | 0.54 | 1 |
| 08IR 14 UN IC908 | 5.00 | 14.0 | 8.24 | 0.13 | 0.72 | 0.54 | 1 |
| 08IR 13 UN IC908 | 5.00 | 13.0 | 8.24 | 0.14 | 0.85 | 0.60 | 1 |
| 08IR 13 UN IC228 | 5.00 | 13.0 | 8.24 | 0.14 | 0.85 | 0.60 | 1 |
| 08UIRL 13 UN IC908 | 5.00 | 13.0 | 8.66 | 0.14 | 4.33 | 0.75 | 1 |
| 08UIRL 12 UN IC928 | 5.00 | 12.0 | 8.66 | 0.13 | 4.33 | 0.80 | 1 |
| 08UIRL 11 UN IC228 | 5.00 | 11.0 | 8.66 | 0.10 | 4.33 | 0.90 | 1 |
| 11IR 64 UN IC250 | 6.35 | 64.0 | 11.00 | 0.04 | 0.40 | 0.78 | 1 |
| 11IR 48 UN IC250 | 6.35 | 48.0 | 11.00 | 0.04 | 0.92 | 0.77 | 1 |
| 11IR 44 UN IC250 | 6.35 | 44.0 | 11.00 | 0.04 | 0.92 | 0.77 | 1 |
| 11IR 40 UN IC250 | 6.35 | 40.0 | 11.00 | 0.05 | 0.92 | 0.76 | 1 |
| 11IR 36 UN IC908 | 6.35 | 36.0 | 11.00 | 0.06 | 0.60 | 0.60 | 1 |
| 11IL 32 UN IC908 | 6.35 | 32.0 | 11.00 | 0.04 | 0.60 | 0.60 | 1 |
| 11IR 32 UN IC908 | 6.35 | 32.0 | 11.00 | 0.05 | 0.60 | 0.60 | 1 |
| 11IRB 32 UN IC908 | 6.35 | 32.0 | 11.00 | 0.04 | 0.60 | 0.60 | 1 |
| 11IL 28 UN IC908 | 6.35 | 28.0 | 11.00 | 0.04 | 0.70 | 0.60 | 1 |
| 11IR 28 UN IC908 | 6.35 | 28.0 | 11.00 | 0.05 | 0.60 | 0.60 | 1 |
| 11IRB 28 UN IC908 | 6.35 | 28.0 | 11.00 | 0.05 | 0.60 | 0.60 | 1 |
| 11IL 24 UN IC908 | 6.35 | 24.0 | 11.00 | 0.07 | 0.80 | 0.80 | 1 |
| 11IR 24 UN IC1007 | 6.35 | 24.0 | 11.00 | 0.07 | 0.80 | 0.80 | 1 |
| 11IR 24 UN IC908 | 6.35 | 24.0 | 11.00 | 0.07 | 0.80 | 0.70 | 1 |
| 11IRB 24 UN IC908 | 6.35 | 24.0 | 11.00 | 0.08 | 0.60 | 0.60 | 1 |
| 11IL 20 UN IC908 | 6.35 | 20.0 | 11.00 | 0.09 | 0.90 | 0.80 | 1 |
| 11IR 20 UN IC908 | 6.35 | 20.0 | 11.00 | 0.09 | 0.90 | 0.80 | 1 |
| 11IRB 20 UN IC908 | 6.35 | 20.0 | 11.00 | 0.09 | 0.90 | 0.80 | 1 |
| 11IL 18 UN IC908 | 6.35 | 18.0 | 11.00 | 0.10 | 1.00 | 0.90 | 1 |
| 11IR 18 UN IC1007 | 6.35 | 18.0 | 11.00 | 0.07 | 1.00 | 0.80 | 1 |
| 11IR 18 UN IC250 | 6.35 | 18.0 | 11.00 | 0.10 | 1.00 | 0.90 | 1 |
| 11IR 18 UN IC908 | 6.35 | 18.0 | 11.00 | 0.10 | 1.00 | 0.90 | 1 |
| 11IRB 18 UN IC908 | 6.35 | 18.0 | 11.00 | 0.10 | 1.00 | 0.90 | 1 |
- Для системы идентификации пластин см. стр. 714
- Допуск: класс 2B, ANSI B1, 3M-1986
- Для технической информации и подробных данных резания см. стр. 809-825
(1) С прессованным чипформером
(2) Многозубые
(3) С прессованным чипформером
(4) Резьбы на дюйм
(5) Количество зубьев на углу
Для инструментов см. страницы: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
