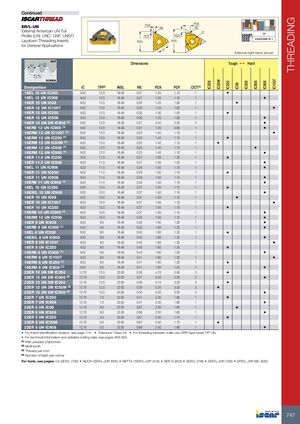

НАРЕЗАНИЕ РЕЗЬБЫ
ER/L-UN (продолжение)
Внешние американские резьбы UN полного профиля (UN, UNC, UNF, UNEF). Пластины для нарезания резьбы методом отвода для универсального применения
Размеры
| Обозначение | IC | Витков на дюйм3 | INSL | RE | PDX | PDY | CICT4 |
|---|---|---|---|---|---|---|---|
| 16EL 12 UN IC250 | 9.52 | 12.0 | 16.49 | 0.27 | 1.20 | 1.10 | 1 |
| 16EL 12 UN IC908 | 9.52 | 12.0 | 16.49 | 0.27 | 1.20 | 1.10 | 1 |
| 16ER 12 UN IC08 | 9.52 | 12.0 | 16.49 | 0.30 | 1.25 | 1.00 | 1 |
| 16ER 12 UN IC1007 | 9.52 | 12.0 | 16.49 | 0.30 | 1.25 | 1.00 | 1 |
| 16ER 12 UN IC250 | 9.52 | 12.0 | 16.49 | 0.30 | 1.30 | 1.00 | 1 |
| 16ER 12 UN IC908 | 9.52 | 12.0 | 16.49 | 0.30 | 1.25 | 1.00 | 1 |
| 16ER 12 UN 2M IC9082 | 9.52 | 12.0 | 16.49 | 0.27 | 3.40 | 2.20 | 2 |
| 16ERB 12 UN IC9081 | 9.52 | 12.0 | 16.49 | 0.27 | 1.20 | 0.90 | 1 |
| 16ERM 12 UN IC10071 | 9.52 | 12.0 | 16.49 | 0.25 | 1.40 | 1.10 | 1 |
| 16ERM 12 UN IC2501 | 9.52 | 12.0 | 16.49 | 0.25 | 1.40 | 1.10 | 1 |
| 16ERM 12 UN IC50M1 | 9.52 | 12.0 | 16.49 | 0.25 | 1.40 | 1.10 | 1 |
| 16ERM 12 UN IC8081 | 9.52 | 12.0 | 16.49 | 0.25 | 1.40 | 1.10 | 1 |
| 16ERM 12 UN IC9081 | 9.52 | 12.0 | 16.49 | 0.25 | 1.40 | 1.10 | 1 |
| 16ER 11.5 UN IC250 | 9.52 | 11.5 | 16.49 | 0.27 | 1.50 | 1.20 | 1 |
| 16ER 11.5 UN IC908 | 9.52 | 11.5 | 16.49 | 0.27 | 1.50 | 1.20 | 1 |
| 16EL 11 UN IC908 | 9.52 | 11.0 | 16.49 | 0.28 | 1.50 | 1.10 | 1 |
| 16ER 11 UN IC250 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 |
| 16ER 11 UN IC908 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 |
| 16ERB 11 UN IC9081 | 9.52 | 11.0 | 16.49 | 0.29 | 1.50 | 1.10 | 1 |
| 16EL 10 UN IC250 | 9.52 | 10.0 | 16.49 | 0.37 | 1.50 | 1.10 | 1 |
| 16ER/L 10 UN IC908 | 9.52 | 10.0 | 16.49 | 0.37 | 1.50 | 1.10 | 1 |
| 16ER 10 UN IC08 | 9.52 | 10.0 | 16.49 | 0.37 | 1.50 | 1.10 | 1 |
| 16ER 10 UN IC1007 | 9.52 | 10.0 | 16.49 | 0.37 | 1.50 | 1.10 | 1 |
| 16ER 10 UN IC250 | 9.52 | 10.0 | 16.49 | 0.37 | 1.50 | 1.10 | 1 |
| 16ERB 10 UN IC9081 | 9.52 | 10.0 | 16.49 | 0.37 | 1.50 | 1.10 | 1 |
| 16ERM 10 UN IC908 | 9.52 | 10.0 | 16.49 | 0.32 | 1.50 | 1.10 | 1 |
| 16ER 9 UN IC908 | 9.52 | 9.0 | 16.49 | 0.35 | 1.60 | 1.30 | 1 |
| 16ERB 9 UN IC9081 | 9.52 | 9.0 | 16.49 | 0.35 | 1.60 | 1.30 | 1 |
| 16EL 8 UN IC250 | 9.52 | 8.0 | 16.49 | 0.40 | 1.60 | 1.20 | 1 |
| 16ER/L 8 UN IC908 | 9.52 | 8.0 | 16.49 | 0.40 | 1.60 | 1.20 | 1 |
| 16ER 8 UN IC1007 | 9.52 | 8.0 | 16.49 | 0.40 | 1.60 | 1.20 | 1 |
| 16ER 8 UN IC250 | 9.52 | 8.0 | 16.49 | 0.40 | 1.60 | 1.20 | 1 |
| 16ERB 8 UN IC9081 | 9.52 | 8.0 | 16.49 | 0.43 | 1.60 | 1.20 | 1 |
| 16ERM 8 UN IC1007 | 9.52 | 8.0 | 16.49 | 0.41 | 1.60 | 1.20 | 1 |
| 16ERM 8 UN IC2501 | 9.52 | 8.0 | 16.49 | 0.41 | 1.60 | 1.20 | 1 |
| 16ERM 8 UN IC9081 | 9.52 | 8.0 | 16.49 | 0.41 | 1.60 | 1.20 | 1 |
| 22ER 13 UN 3M IC250 | 12.70 | 13.0 | 22.00 | 0.28 | 4.70 | 2.90 | 3 |
| 22ER 12 UN 2M IC9082 | 12.70 | 12.0 | 22.00 | 0.27 | 3.40 | 2.20 | 2 |
| 22ER 12 UN 3M IC250 | 12.70 | 12.0 | 22.00 | 0.30 | 5.15 | 3.20 | 3 |
| 22ER 12 UN 3M IC50M2 | 12.70 | 12.0 | 22.00 | 0.30 | 5.20 | 3.20 | 3 |
| 22ER 12 UN 3M IC9082 | 12.70 | 12.0 | 22.00 | 0.30 | 5.20 | 3.20 | 3 |
| 22ER 7 UN IC250 | 12.70 | 7.0 | 22.00 | 0.47 | 2.30 | 1.60 | 1 |
| 22ER 7 UN IC908 | 12.70 | 7.0 | 22.00 | 0.47 | 2.30 | 1.60 | 1 |
| 22ER 6 UN IC08 | 12.70 | 6.0 | 22.00 | 0.67 | 2.30 | 1.60 | 1 |
| 22ER 6 UN IC908 | 12.70 | 6.0 | 22.00 | 0.56 | 2.30 | 1.60 | 1 |
| 22ER 5 UN IC250 | 12.70 | 5.0 | 22.00 | 0.67 | 2.50 | 1.70 | 1 |
| 22ER 5 UN IC50M | 12.70 | 5.0 | 22.00 | 0.67 | 2.50 | 1.70 | 1 |
| 22ER 5 UN IC908 | 12.70 | 5.0 | 22.00 | 0.69 | 2.50 | 1.80 | 1 |
• Система идентификации пластин см. на странице 714 • Допуск: класс 2A • Для нарезания резьбы в ограниченном пространстве используйте пластины типа GRIP TIP-UN
• Техническую информацию и данные резания см. на страницах 809-825
(1) С прессованным формообразователем стружки
(2) Многозубая
(3) Витков на дюйм
(4) Количество зубьев на одном режущем углу
О инструментах см. страницы: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
