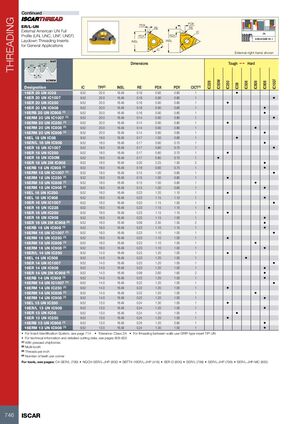

НАРЕЗАНИЕ РЕЗЬБЫ
ER/L-UN (продолжение)
Внешние американские резьбы UN полного профиля (UN, UNC, UNF, UNEF). Пластины для нарезания резьбы методом отвода для универсального применения
Размеры
| Обозначение | IC | Витков на дюйм3 | INSL | RE | PDX | PDY | CICT4 |
|---|---|---|---|---|---|---|---|
| 16ER 20 UN IC08 | 9.52 | 20.0 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ER 20 UN IC1007 | 9.52 | 20.0 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ER 20 UN IC250 | 9.52 | 20.0 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ER 20 UN IC908 | 9.52 | 20.0 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ERB 20 UN IC9081 | 9.52 | 20.0 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16ERM 20 UN IC10071 | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16ERM 20 UN IC2501 | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16ERM 20 UN IC8081 | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16ERM 20 UN IC9081 | 9.52 | 20.0 | 16.49 | 0.14 | 0.90 | 0.80 | 1 |
| 16EL 18 UN IC08 | 9.52 | 18.0 | 16.49 | 0.17 | 1.00 | 0.80 | 1 |
| 16ER/L 18 UN IC908 | 9.52 | 18.0 | 16.49 | 0.17 | 0.80 | 0.70 | 1 |
| 16ER 18 UN IC1007 | 9.52 | 18.0 | 16.49 | 0.17 | 0.80 | 0.70 | 1 |
| 16ER 18 UN IC250 | 9.52 | 18.0 | 16.49 | 0.17 | 0.80 | 0.70 | 1 |
| 16ER 18 UN IC50M | 9.52 | 18.0 | 16.49 | 0.17 | 0.80 | 0.70 | 1 |
| 16ER 18 UN 2M IC908 | 9.52 | 18.0 | 16.49 | 0.20 | 2.25 | 1.50 | 2 |
| 16ERB 18 UN IC9081 | 9.52 | 18.0 | 16.49 | 0.18 | 0.80 | 0.70 | 1 |
| 16ERM 18 UN IC10071 | 9.52 | 18.0 | 16.49 | 0.15 | 1.00 | 0.80 | 1 |
| 16ERM 18 UN IC2501 | 9.52 | 18.0 | 16.49 | 0.15 | 1.00 | 0.80 | 1 |
| 16ERM 18 UN IC8081 | 9.52 | 18.0 | 16.49 | 0.15 | 1.00 | 0.80 | 1 |
| 16ERM 18 UN IC9081 | 9.52 | 18.0 | 16.49 | 0.15 | 1.00 | 0.80 | 1 |
| 16EL 16 UN IC250 | 9.52 | 16.0 | 16.49 | 0.23 | 1.20 | 1.10 | 1 |
| 16EL 16 UN IC908 | 9.52 | 16.0 | 16.49 | 0.23 | 1.15 | 1.10 | 1 |
| 16ER 16 UN IC1007 | 9.52 | 16.0 | 16.49 | 0.23 | 1.15 | 1.00 | 1 |
| 16ER 16 UN IC228 | 9.52 | 16.0 | 16.49 | 0.23 | 1.15 | 1.10 | 1 |
| 16ER 16 UN IC250 | 9.52 | 16.0 | 16.49 | 0.23 | 1.15 | 1.10 | 1 |
| 16ER 16 UN IC908 | 9.52 | 16.0 | 16.49 | 0.23 | 1.15 | 1.00 | 1 |
| 16ER 16 UN 2M IC9082 | 9.52 | 16.0 | 16.49 | 0.09 | 2.30 | 1.50 | 2 |
| 16ERB 16 UN IC9081 | 9.52 | 16.0 | 16.49 | 0.23 | 1.10 | 1.15 | 1 |
| 16ERM 16 UN IC10071 | 9.52 | 16.0 | 16.49 | 0.23 | 1.10 | 1.00 | 1 |
| 16ERM 16 UN IC2501 | 9.52 | 16.0 | 16.49 | 0.23 | 1.10 | 1.00 | 1 |
| 16ERM 16 UN IC8081 | 9.52 | 16.0 | 16.49 | 0.23 | 1.10 | 1.00 | 1 |
| 16ERM 16 UN IC9081 | 9.52 | 16.0 | 16.49 | 0.23 | 1.10 | 1.00 | 1 |
| 16ER/L 14 UN IC250 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 |
| 16EL 14 UN IC508 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 |
| 16ER 14 UN IC1007 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 |
| 16ER 14 UN IC908 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 |
| 16ER 14 UN 2M IC9082 | 9.52 | 14.0 | 16.49 | 0.09 | 2.60 | 1.60 | 2 |
| 16ERB 14 UN IC9081 | 9.52 | 14.0 | 16.49 | 0.23 | 1.20 | 1.00 | 1 |
| 16ERM 14 UN IC10071 | 9.52 | 14.0 | 16.49 | 0.22 | 1.20 | 1.00 | 1 |
| 16ERM 14 UN IC2501 | 9.52 | 14.0 | 16.49 | 0.22 | 1.20 | 1.00 | 1 |
| 16ERM 14 UN IC8081 | 9.52 | 14.0 | 16.49 | 0.22 | 1.20 | 1.00 | 1 |
| 16ERM 14 UN IC9081 | 9.52 | 14.0 | 16.49 | 0.22 | 1.20 | 1.00 | 1 |
| 16EL 13 UN IC250 | 9.52 | 13.0 | 16.49 | 0.24 | 1.30 | 1.00 | 1 |
| 16ER/L 13 UN IC908 | 9.52 | 13.0 | 16.49 | 0.24 | 1.20 | 1.00 | 1 |
| 16ER 13 UN IC08 | 9.52 | 13.0 | 16.49 | 0.24 | 1.20 | 1.00 | 1 |
| 16ER 13 UN IC250 | 9.52 | 13.0 | 16.49 | 0.24 | 1.20 | 1.00 | 1 |
| 16ERB 13 UN IC9081 | 9.52 | 13.0 | 16.49 | 0.25 | 1.20 | 0.90 | 1 |
| 16ERM 13 UN IC9081 | 9.52 | 13.0 | 16.49 | 0.24 | 1.30 | 1.00 | 1 |
• Система идентификации пластин см. на странице 714 • Допуск: класс 2A • Для нарезания резьбы в ограниченном пространстве используйте пластины типа GRIP TIP-UN
• Техническую информацию и данные резания см. на страницах 809-825
(1) С прессованным формообразователем стружки
(2) Многозубая
(3) Витков на дюйм
(4) Количество зубьев на одном режущем углу
О инструментах см. страницы: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
