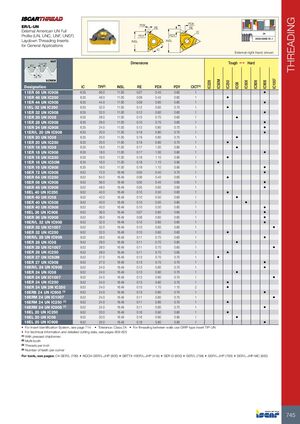

НАРЕЗАНИЕ РЕЗЬБЫ
ER/L-UN
Внешние американские резьбы UN полного профиля (UN, UNC, UNF, UNEF). Пластины для нарезания резьбы методом отвода для универсального применения
Размеры
| Обозначение | IC | Витков на дюйм3 | INSL | RE | PDX | PDY | CICT4 |
|---|---|---|---|---|---|---|---|
| 11ER 56 UN IC908 | 6.35 | 56.0 | 11.00 | 0.07 | 0.40 | 0.60 | 1 |
| 11ER 48 UN IC250 | 6.35 | 48.0 | 11.00 | 0.08 | 0.45 | 0.60 | 1 |
| 11ER 44 UN IC908 | 6.35 | 44.0 | 11.00 | 0.09 | 0.60 | 0.60 | 1 |
| 11EL 32 UN IC250 | 6.35 | 32.0 | 11.00 | 0.12 | 0.60 | 0.70 | 1 |
| 11ER 32 UN IC908 | 6.35 | 32.0 | 11.00 | 0.12 | 0.60 | 0.60 | 1 |
| 11ER 28 UN IC08 | 6.35 | 28.0 | 11.00 | 0.10 | 0.70 | 0.60 | 1 |
| 11ER 28 UN IC908 | 6.35 | 28.0 | 11.00 | 0.10 | 0.70 | 0.60 | 1 |
| 11ER 24 UN IC908 | 6.35 | 24.0 | 11.00 | 0.12 | 0.80 | 0.70 | 1 |
| 11ER/L 20 UN IC908 | 6.35 | 20.0 | 11.00 | 0.19 | 0.80 | 0.70 | 1 |
| 11ER 20 UN IC08 | 6.35 | 20.0 | 11.00 | 0.19 | 0.80 | 0.70 | 1 |
| 11ER 20 UN IC250 | 6.35 | 20.0 | 11.00 | 0.19 | 0.80 | 0.70 | 1 |
| 11ER 18 UN IC08 | 6.35 | 18.0 | 11.00 | 0.17 | 1.00 | 0.80 | 1 |
| 11ER 18 UN IC908 | 6.35 | 18.0 | 11.00 | 0.17 | 1.00 | 0.80 | 1 |
| 11ER 16 UN IC250 | 6.35 | 16.0 | 11.00 | 0.18 | 1.10 | 0.90 | 1 |
| 11ER 16 UN IC50M | 6.35 | 16.0 | 11.00 | 0.18 | 1.10 | 0.90 | 1 |
| 11ER 16 UN IC908 | 6.35 | 16.0 | 11.00 | 0.18 | 1.10 | 0.90 | 1 |
| 16ER 72 UN IC908 | 9.52 | 72.0 | 16.49 | 0.05 | 0.40 | 0.70 | 1 |
| 16ER 64 UN IC250 | 9.52 | 64.0 | 16.49 | 0.06 | 0.40 | 0.60 | 1 |
| 16ER 56 UN IC908 | 9.52 | 56.0 | 16.49 | 0.05 | 0.40 | 0.65 | 1 |
| 16ER 48 UN IC908 | 9.52 | 48.0 | 16.49 | 0.05 | 0.60 | 0.60 | 1 |
| 16EL 40 UN IC250 | 9.52 | 40.0 | 16.49 | 0.10 | 0.50 | 0.60 | 1 |
| 16ER 40 UN IC08 | 9.52 | 40.0 | 16.49 | 0.10 | 0.50 | 0.60 | 1 |
| 16ER 40 UN IC508 | 9.52 | 40.0 | 16.49 | 0.10 | 0.50 | 0.60 | 1 |
| 16ER 40 UN IC908 | 9.52 | 40.0 | 16.49 | 0.10 | 0.50 | 0.60 | 1 |
| 16EL 36 UN IC908 | 9.52 | 36.0 | 16.49 | 0.07 | 0.60 | 0.60 | 1 |
| 16ER 36 UN IC908 | 9.52 | 36.0 | 16.49 | 0.08 | 0.60 | 0.60 | 1 |
| 16ER/L 32 UN IC908 | 9.52 | 32.0 | 16.49 | 0.10 | 0.60 | 0.60 | 1 |
| 16ER 32 UN IC1007 | 9.52 | 32.0 | 16.49 | 0.10 | 0.60 | 0.60 | 1 |
| 16ER 32 UN IC250 | 9.52 | 32.0 | 16.49 | 0.10 | 0.60 | 0.60 | 1 |
| 16ER/L 28 UN IC908 | 9.52 | 28.0 | 16.49 | 0.11 | 0.70 | 0.60 | 1 |
| 16ER 28 UN IC08 | 9.52 | 28.0 | 16.49 | 0.11 | 0.70 | 0.60 | 1 |
| 16ER 28 UN IC1007 | 9.52 | 28.0 | 16.49 | 0.11 | 0.70 | 0.60 | 1 |
| 16ER 28 UN IC250 | 9.52 | 28.0 | 16.49 | 0.11 | 0.70 | 0.60 | 1 |
| 16ER 27 UN IC50M | 9.52 | 27.0 | 16.49 | 0.13 | 0.70 | 0.70 | 1 |
| 16ER 27 UN IC908 | 9.52 | 27.0 | 16.49 | 0.13 | 0.70 | 0.70 | 1 |
| 16ER/L 24 UN IC908 | 9.52 | 24.0 | 16.49 | 0.13 | 0.80 | 0.70 | 1 |
| 16ER 24 UN IC08 | 9.52 | 24.0 | 16.49 | 0.13 | 0.80 | 0.70 | 1 |
| 16ER 24 UN IC1007 | 9.52 | 24.0 | 16.49 | 0.13 | 0.80 | 0.70 | 1 |
| 16ER 24 UN IC250 | 9.52 | 24.0 | 16.49 | 0.13 | 0.80 | 0.70 | 1 |
| 16ER 24 UN 2M IC250 | 9.52 | 24.0 | 16.49 | 0.15 | 1.70 | 1.10 | 2 |
| 16ERB 24 UN IC9081 | 9.52 | 24.0 | 16.49 | 0.13 | 0.80 | 0.70 | 1 |
| 16ERM 24 UN IC1007 | 9.52 | 24.0 | 16.49 | 0.11 | 0.80 | 0.70 | 1 |
| 16ERM 24 UN IC2501 | 9.52 | 24.0 | 16.49 | 0.11 | 0.80 | 0.70 | 1 |
| 16ERM 24 UN IC9081 | 9.52 | 24.0 | 16.49 | 0.11 | 0.80 | 0.70 | 1 |
| 16EL 20 UN IC250 | 9.52 | 20.0 | 16.49 | 0.16 | 0.90 | 0.80 | 1 |
| 16EL 20 UN IC08 | 9.52 | 20.0 | 16.49 | 0.16 | 0.80 | 0.90 | 1 |
| 16EL 20 UN IC908 | 9.52 | 20.0 | 16.49 | 0.16 | 0.80 | 0.90 | 1 |
• Система идентификации пластин см. на странице 714 • Допуск: класс 2A • Для нарезания резьбы в ограниченном пространстве используйте пластины типа GRIP TIP-UN
• Техническую информацию и данные резания см. на страницах 809-825
(1) С прессованным формообразователем стружки
(2) Многозубая
(3) Витков на дюйм
(4) Количество зубьев на одном режущем углу
О инструментах см. страницы: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
