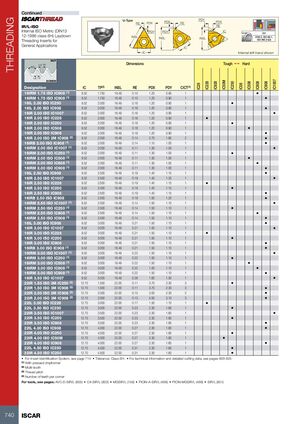

РЕЗЬБА (продолжение)
U-Type IR/L-ISO
Резьбовые пластины внутренней метрической резьбы ISO (DIN13 12-1986 класс 6H) с отводом для общего применения
| Обозначение | IC | Шаг резьбы(3) | INSL | RE | PDX | PDY | Кромок на углу(4) |
|---|---|---|---|---|---|---|---|
| 16IRM 1.75 ISO IC808 (1) | 9.52 | 1.750 | 16.49 | 0.10 | 1.20 | 0.90 | 1 |
| 16IRM 1.75 ISO IC908 (1) | 9.52 | 1.750 | 16.49 | 0.10 | 1.20 | 0.90 | 1 |
| 16IL 2.00 ISO IC250 | 9.52 | 2.000 | 16.49 | 0.16 | 1.20 | 0.90 | 1 |
| 16IL 2.00 ISO IC908 | 9.52 | 2.000 | 16.49 | 0.16 | 1.20 | 0.90 | 1 |
| 16IR 2.00 ISO IC1007 | 9.52 | 2.000 | 16.49 | 0.16 | 1.20 | 0.90 | 1 |
| 16IR 2.00 ISO IC228 | 9.52 | 2.000 | 16.49 | 0.16 | 1.20 | 0.90 | 1 |
| 16IR 2.00 ISO IC250 | 9.52 | 2.000 | 16.49 | 0.16 | 1.20 | 0.90 | 1 |
| 16IR 2.00 ISO IC508 | 9.52 | 2.000 | 16.49 | 0.16 | 1.20 | 0.90 | 1 |
| 16IR 2.00 ISO IC908 | 9.52 | 2.000 | 16.49 | 0.16 | 1.20 | 0.90 | 1 |
| 16IR 2.00 ISO 2M IC908 (2) | 9.52 | 2.000 | 16.49 | 0.14 | 2.70 | 1.60 | 2 |
| 16IRB 2.00 ISO IC908 (1) | 9.52 | 2.000 | 16.49 | 0.14 | 1.15 | 1.00 | 1 |
| 16IRM 2.00 ISO IC1007 (1) | 9.52 | 2.000 | 16.49 | 0.11 | 1.30 | 1.00 | 1 |
| 16IRM 2.00 ISO IC250 (1) | 9.52 | 2.000 | 16.49 | 0.11 | 1.30 | 1.00 | 1 |
| 16IRM 2.00 ISO IC508 (1) | 9.52 | 2.000 | 16.49 | 0.11 | 1.30 | 1.00 | 1 |
| 16IRM 2.00 ISO IC808 (1) | 9.52 | 2.000 | 16.49 | 0.11 | 1.30 | 1.00 | 1 |
| 16IRM 2.00 ISO IC908 (1) | 9.52 | 2.000 | 16.49 | 0.11 | 1.30 | 1.00 | 1 |
| 16IL 2.50 ISO IC908 | 9.52 | 2.500 | 16.49 | 0.19 | 1.40 | 1.15 | 1 |
| 16IR 2.50 ISO IC1007 | 9.52 | 2.500 | 16.49 | 0.19 | 1.40 | 1.20 | 1 |
| 16IR 2.50 ISO IC228 | 9.52 | 2.500 | 16.49 | 0.19 | 1.40 | 1.15 | 1 |
| 16IR 2.50 ISO IC250 | 9.52 | 2.500 | 16.49 | 0.19 | 1.40 | 1.15 | 1 |
| 16IR 2.50 ISO IC908 | 9.52 | 2.500 | 16.49 | 0.19 | 1.40 | 1.15 | 1 |
| 16IRB 2.50 ISO IC908 | 9.52 | 2.500 | 16.49 | 0.19 | 1.50 | 1.20 | 1 |
| 16IRM 2.50 ISO IC1007 (1) | 9.52 | 2.500 | 16.49 | 0.14 | 1.50 | 1.10 | 1 |
| 16IRM 2.50 ISO IC250 (1) | 9.52 | 2.500 | 16.49 | 0.14 | 1.50 | 1.10 | 1 |
| 16IRM 2.50 ISO IC808 (1) | 9.52 | 2.500 | 16.49 | 0.14 | 1.50 | 1.10 | 1 |
| 16IRM 2.50 ISO IC908 (1) | 9.52 | 2.500 | 16.49 | 0.14 | 1.50 | 1.10 | 1 |
| 16IL 3.00 ISO IC908 | 9.52 | 3.000 | 16.49 | 0.21 | 1.50 | 1.10 | 1 |
| 16IR 3.00 ISO IC1007 | 9.52 | 3.000 | 16.49 | 0.21 | 1.50 | 1.10 | 1 |
| 16IR 3.00 ISO IC228 | 9.52 | 3.000 | 16.49 | 0.21 | 1.50 | 1.10 | 1 |
| 16IR 3.00 ISO IC250 | 9.52 | 3.000 | 16.49 | 0.21 | 1.50 | 1.10 | 1 |
| 16IR 3.00 ISO IC908 | 9.52 | 3.000 | 16.49 | 0.21 | 1.50 | 1.10 | 1 |
| 16IRB 3.00 ISO IC908 (1) | 9.52 | 3.000 | 16.49 | 0.21 | 1.50 | 1.10 | 1 |
| 16IRM 3.00 ISO IC1007 (1) | 9.52 | 3.000 | 16.49 | 0.22 | 1.50 | 1.10 | 1 |
| 16IRM 3.00 ISO IC250 (1) | 9.52 | 3.000 | 16.49 | 0.22 | 1.50 | 1.10 | 1 |
| 16IRM 3.00 ISO IC508 (1) | 9.52 | 3.000 | 16.49 | 0.22 | 1.50 | 1.10 | 1 |
| 16IRM 3.00 ISO IC808 (1) | 9.52 | 3.000 | 16.49 | 0.22 | 1.50 | 1.10 | 1 |
| 16IRM 3.00 ISO IC908 (1) | 9.52 | 3.000 | 16.49 | 0.22 | 1.50 | 1.10 | 1 |
| 16IR 3.50 ISO IC1007 | 9.52 | 3.500 | 16.49 | 0.26 | 1.60 | 1.50 | 1 |
| 22IR 1.50 ISO 3M IC250 (2) | 12.70 | 1.500 | 22.00 | 0.11 | 3.70 | 2.30 | 3 |
| 22IR 1.50 ISO 3M IC908 (2) | 12.70 | 1.500 | 22.00 | 0.11 | 3.70 | 2.30 | 3 |
| 22IR 2.00 ISO 2M IC908 (2) | 12.70 | 2.000 | 22.00 | 0.15 | 3.00 | 2.30 | 2 |
| 22IR 2.00 ISO 3M IC908 (2) | 12.70 | 2.000 | 22.00 | 0.13 | 5.00 | 3.10 | 3 |
| 22IL 3.00 ISO IC228 | 12.70 | 3.000 | 22.00 | 0.17 | 1.50 | 1.10 | 1 |
| 22IL 3.50 ISO IC250 | 12.70 | 3.500 | 22.00 | 0.23 | 2.30 | 1.60 | 1 |
| 22IR 3.50 ISO IC1007 | 12.70 | 3.500 | 22.00 | 0.23 | 2.30 | 1.60 | 1 |
| 22IR 3.50 ISO IC250 | 12.70 | 3.500 | 22.00 | 0.23 | 2.30 | 1.60 | 1 |
| 22IR 3.50 ISO IC908 | 12.70 | 3.500 | 22.00 | 0.23 | 2.30 | 1.60 | 1 |
| 22IL 4.00 ISO IC908 | 12.70 | 4.000 | 22.00 | 0.27 | 2.30 | 1.60 | 1 |
| 22IR 4.00 ISO IC250 | 12.70 | 4.000 | 22.00 | 0.27 | 2.30 | 1.60 | 1 |
| 22IR 4.00 ISO IC50M | 12.70 | 4.000 | 22.00 | 0.27 | 2.30 | 1.60 | 1 |
| 22IR 4.00 ISO IC908 | 12.70 | 4.000 | 22.00 | 0.27 | 2.30 | 1.60 | 1 |
| 22IL 4.50 ISO IC250 | 12.70 | 4.500 | 22.00 | 0.31 | 2.30 | 1.60 | 1 |
| 22IR 4.50 ISO IC250 | 12.70 | 4.500 | 22.00 | 0.31 | 2.30 | 1.60 | 1 |
Примечания:
- Для системы идентификации пластин см. стр. 714
- Допуск: Класс 6H
- Для технической информации и детальных данных резания см. стр. 809-825
- (1) С прессованным отводчиком стружки
- (2) Многозубая
- (3) Шаг резьбы
- (4) Количество режущих кромок на углу
Державки см. на стр.: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
