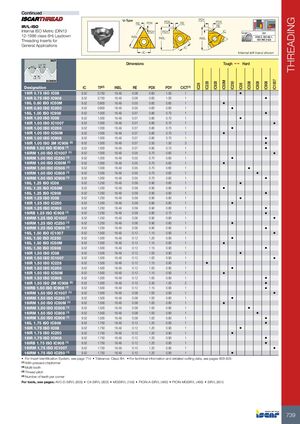

РЕЗЬБА
U-Type IR/L-ISO
Резьбовые пластины внутренней метрической резьбы ISO (DIN13 12-1986 класс 6H) с отводом для общего применения
Стандарты: DIN13, ISO 68-1, ISO 965 (1&2), класс 6H
| Обозначение | IC | Шаг резьбы(3) | INSL | RE | PDX | PDY | Кромок на углу(4) |
|---|---|---|---|---|---|---|---|
| 16IR 0.75 ISO IC08 | 9.52 | 0.750 | 16.49 | 0.06 | 0.60 | 1.00 | 1 |
| 16IR 0.75 ISO IC908 | 9.52 | 0.750 | 16.49 | 0.06 | 0.60 | 1.00 | 1 |
| 16IL 0.80 ISO IC50M | 9.52 | 0.800 | 16.49 | 0.05 | 0.60 | 0.60 | 1 |
| 16IR 0.80 ISO IC250 | 9.52 | 0.800 | 16.49 | 0.05 | 0.60 | 0.60 | 1 |
| 16IL 1.00 ISO IC908 | 9.52 | 1.000 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IR 1.00 ISO IC08 | 9.52 | 1.000 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IR 1.00 ISO IC1007 | 9.52 | 1.000 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IR 1.00 ISO IC250 | 9.52 | 1.000 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IR 1.00 ISO IC50M | 9.52 | 1.000 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IR 1.00 ISO IC908 | 9.52 | 1.000 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IR 1.00 ISO 3M IC908 (2) | 9.52 | 1.000 | 16.49 | 0.07 | 2.50 | 1.50 | 3 |
| 16IRB 1.00 ISO IC908 (1) | 9.52 | 1.000 | 16.49 | 0.07 | 0.80 | 0.70 | 1 |
| 16IRM 1.00 ISO IC1007 (1) | 9.52 | 1.000 | 16.49 | 0.05 | 0.70 | 0.60 | 1 |
| 16IRM 1.00 ISO IC250 (1) | 9.52 | 1.000 | 16.49 | 0.05 | 0.70 | 0.60 | 1 |
| 16IRM 1.00 ISO IC50M (1) | 9.52 | 1.000 | 16.49 | 0.05 | 0.70 | 0.60 | 1 |
| 16IRM 1.00 ISO IC508 (1) | 9.52 | 1.000 | 16.49 | 0.05 | 0.70 | 0.60 | 1 |
| 16IRM 1.00 ISO IC808 (1) | 9.52 | 1.000 | 16.49 | 0.05 | 0.70 | 0.60 | 1 |
| 16IRM 1.00 ISO IC908 (1) | 9.52 | 1.000 | 16.49 | 0.05 | 0.70 | 0.60 | 1 |
| 16IL 1.25 ISO IC08 | 9.52 | 1.250 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IL 1.25 ISO IC50M | 9.52 | 1.250 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IL 1.25 ISO IC908 | 9.52 | 1.250 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 1.25 ISO IC08 | 9.52 | 1.250 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 1.25 ISO IC250 | 9.52 | 1.250 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IR 1.25 ISO IC908 | 9.52 | 1.250 | 16.49 | 0.09 | 0.90 | 0.80 | 1 |
| 16IRB 1.25 ISO IC908 (1) | 9.52 | 1.250 | 16.49 | 0.09 | 0.80 | 0.70 | 1 |
| 16IRM 1.25 ISO IC1007 | 9.52 | 1.250 | 16.49 | 0.06 | 0.90 | 0.80 | 1 |
| 16IRM 1.25 ISO IC250 (1) | 9.52 | 1.250 | 16.49 | 0.06 | 0.90 | 0.80 | 1 |
| 16IRM 1.25 ISO IC908 (1) | 9.52 | 1.250 | 16.49 | 0.06 | 0.90 | 0.80 | 1 |
| 16IL 1.50 ISO IC1007 | 9.52 | 1.500 | 16.49 | 0.12 | 1.15 | 0.90 | 1 |
| 16IL 1.50 ISO IC250 | 9.52 | 1.500 | 16.49 | 0.12 | 1.20 | 0.90 | 1 |
| 16IL 1.50 ISO IC50M | 9.52 | 1.500 | 16.49 | 0.12 | 1.15 | 0.90 | 1 |
| 16IL 1.50 ISO IC908 | 9.52 | 1.500 | 16.49 | 0.12 | 1.15 | 0.90 | 1 |
| 16IR 1.50 ISO IC08 | 9.52 | 1.500 | 16.49 | 0.12 | 1.00 | 0.90 | 1 |
| 16IR 1.50 ISO IC1007 | 9.52 | 1.500 | 16.49 | 0.12 | 1.00 | 0.90 | 1 |
| 16IR 1.50 ISO IC228 | 9.52 | 1.500 | 16.49 | 0.12 | 1.15 | 0.90 | 1 |
| 16IR 1.50 ISO IC250 | 9.52 | 1.500 | 16.49 | 0.12 | 1.00 | 0.90 | 1 |
| 16IR 1.50 ISO IC50M | 9.52 | 1.500 | 16.49 | 0.12 | 1.15 | 0.90 | 1 |
| 16IR 1.50 ISO IC908 | 9.52 | 1.500 | 16.49 | 0.12 | 1.00 | 0.90 | 1 |
| 16IR 1.50 ISO 2M IC908 (2) | 9.52 | 1.500 | 16.49 | 0.10 | 2.30 | 1.50 | 2 |
| 16IRB 1.50 ISO IC908 (1) | 9.52 | 1.500 | 16.49 | 0.12 | 1.15 | 0.90 | 1 |
| 16IRM 1.50 ISO IC1007 (1) | 9.52 | 1.500 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IRM 1.50 ISO IC250 (1) | 9.52 | 1.500 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IRM 1.50 ISO IC50M (1) | 9.52 | 1.500 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IRM 1.50 ISO IC508 (1) | 9.52 | 1.500 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IRM 1.50 ISO IC808 (1) | 9.52 | 1.500 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IRM 1.50 ISO IC908 (1) | 9.52 | 1.500 | 16.49 | 0.08 | 1.00 | 0.80 | 1 |
| 16IL 1.75 ISO IC908 | 9.52 | 1.750 | 16.49 | 0.12 | 1.20 | 0.90 | 1 |
| 16IR 1.75 ISO IC08 | 9.52 | 1.750 | 16.49 | 0.12 | 1.20 | 0.90 | 1 |
| 16IR 1.75 ISO IC250 | 9.52 | 1.750 | 16.49 | 0.12 | 1.20 | 0.90 | 1 |
| 16IR 1.75 ISO IC908 | 9.52 | 1.750 | 16.49 | 0.12 | 1.20 | 0.90 | 1 |
| 16IRB 1.75 ISO IC908 (1) | 9.52 | 1.750 | 16.49 | 0.12 | 1.20 | 0.90 | 1 |
| 16IRM 1.75 ISO IC1007 | 9.52 | 1.750 | 16.49 | 0.10 | 1.20 | 0.90 | 1 |
| 16IRM 1.75 ISO IC250 (1) | 9.52 | 1.750 | 16.49 | 0.10 | 1.20 | 0.90 | 1 |
Примечания:
- Для системы идентификации пластин см. стр. 714
- Допуск: Класс 6H
- Для технической информации и детальных данных резания см. стр. 809-825
- (1) С прессованным отводчиком стружки
- (2) Многозубая
- (3) Шаг резьбы
- (4) Количество режущих кромок на углу
Державки см. на стр.: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
