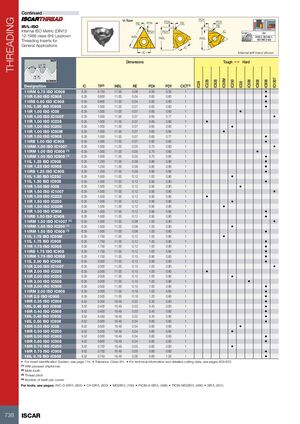

Резьба (продолжение)
| Обозначение | IC | TP(3) | INSL | RE | PDX | PDY | CICT(4) |
|---|---|---|---|---|---|---|---|
| 11IRM 0.75 ISO IC908 | 6.35 | 0.750 | 11.00 | 0.06 | 0.50 | 0.30 | 1 |
| 11IR 0.80 ISO IC908 | 6.35 | 0.800 | 11.00 | 0.04 | 0.60 | 0.60 | 1 |
| 11IRB 0.80 ISO IC908 | 6.35 | 0.800 | 11.00 | 0.04 | 0.60 | 0.60 | 1 |
| 11IL 1.00 ISO IC908 | 6.35 | 1.000 | 11.00 | 0.07 | 0.65 | 0.60 | 1 |
| 11IR 1.00 ISO IC08 | 6.35 | 1.000 | 11.00 | 0.07 | 0.65 | 0.60 | 1 |
| 11IR 1.00 ISO IC1007 | 6.35 | 1.000 | 11.00 | 0.07 | 0.65 | 0.77 | 1 |
| 11IR 1.00 ISO IC228 | 6.35 | 1.000 | 11.00 | 0.07 | 0.65 | 0.60 | 1 |
| 11IR 1.00 ISO IC250 | 6.35 | 1.000 | 11.00 | 0.07 | 0.65 | 0.60 | 1 |
| 11IR 1.00 ISO IC50M | 6.35 | 1.000 | 11.00 | 0.07 | 0.65 | 0.60 | 1 |
| 11IR 1.00 ISO IC908 | 6.35 | 1.000 | 11.00 | 0.07 | 0.65 | 0.77 | 1 |
| 11IRB 1.00 ISO IC908 | 6.35 | 1.000 | 11.00 | 0.07 | 0.60 | 0.60 | 1 |
| 11IRM 1.00 ISO IC1007 | 6.35 | 1.000 | 11.00 | 0.05 | 0.70 | 0.60 | 1 |
| 11IRM 1.00 ISO IC808 (1) | 6.35 | 1.000 | 11.00 | 0.05 | 0.70 | 0.60 | 1 |
| 11IRM 1.00 ISO IC908 (1) | 6.35 | 1.000 | 11.00 | 0.05 | 0.70 | 0.60 | 1 |
| 11IL 1.25 ISO IC908 | 6.35 | 1.250 | 11.00 | 0.09 | 0.80 | 0.80 | 1 |
| 11IR 1.25 ISO IC908 | 6.35 | 1.250 | 11.00 | 0.09 | 0.80 | 0.80 | 1 |
| 11IRB 1.25 ISO IC908 | 6.35 | 1.250 | 11.00 | 0.09 | 0.90 | 0.80 | 1 |
| 11IL 1.50 ISO IC250 | 6.35 | 1.500 | 11.00 | 0.12 | 1.00 | 0.80 | 1 |
| 11IL 1.50 ISO IC908 | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IR 1.50 ISO IC08 | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IR 1.50 ISO IC1007 | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IR 1.50 ISO IC228 | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IR 1.50 ISO IC250 | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IR 1.50 ISO IC50M | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IR 1.50 ISO IC908 | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IRB 1.50 ISO IC908 | 6.35 | 1.500 | 11.00 | 0.12 | 0.95 | 0.80 | 1 |
| 11IRM 1.50 ISO IC1007 (1) | 6.35 | 1.500 | 11.00 | 0.08 | 1.00 | 0.80 | 1 |
| 11IRM 1.50 ISO IC250 (1) | 6.35 | 1.500 | 11.00 | 0.08 | 1.00 | 0.80 | 1 |
| 11IRM 1.50 ISO IC908 (1) | 6.35 | 1.500 | 11.00 | 0.08 | 1.00 | 0.80 | 1 |
| 11IL 1.75 ISO IC50M | 6.35 | 1.750 | 11.00 | 0.12 | 1.00 | 0.80 | 1 |
| 11IL 1.75 ISO IC908 | 6.35 | 1.750 | 11.00 | 0.12 | 1.00 | 0.80 | 1 |
| 11IR 1.75 ISO IC908 | 6.35 | 1.750 | 11.00 | 0.12 | 1.00 | 0.80 | 1 |
| 11IRB 1.75 ISO IC908 | 6.35 | 1.750 | 11.00 | 0.12 | 1.00 | 0.80 | 1 |
| 11IRM 1.75 ISO IC908 | 6.35 | 1.750 | 11.00 | 0.15 | 0.90 | 0.60 | 1 |
| 11IL 2.00 ISO IC908 | 6.35 | 2.000 | 11.00 | 0.15 | 0.90 | 0.80 | 1 |
| 11IR 2.00 ISO IC1007 | 6.35 | 2.000 | 11.00 | 0.15 | 1.00 | 0.80 | 1 |
| 11IR 2.00 ISO IC228 | 6.35 | 2.000 | 11.00 | 0.15 | 1.00 | 0.80 | 1 |
| 11IR 2.00 ISO IC250 | 6.35 | 2.000 | 11.00 | 0.15 | 1.00 | 0.80 | 1 |
| 11IR 2.00 ISO IC508 | 6.35 | 2.000 | 11.00 | 0.15 | 1.00 | 0.80 | 1 |
| 11IR 2.00 ISO IC908 | 6.35 | 2.000 | 11.00 | 0.15 | 1.00 | 0.80 | 1 |
| 11IRM 2.00 ISO IC908 | 6.35 | 2.000 | 11.00 | 0.16 | 1.00 | 0.60 | 1 |
| 11IR 2.5 ISO IC908 | 6.35 | 2.500 | 11.00 | 0.18 | 1.20 | 0.80 | 1 |
| 16IR 0.35 ISO IC908 | 9.52 | 0.350 | 16.49 | 0.02 | 0.30 | 0.60 | 1 |
| 16IL 0.40 ISO IC908 | 9.52 | 0.400 | 16.49 | 0.03 | 0.40 | 0.60 | 1 |
| 16IR 0.40 ISO IC908 | 9.52 | 0.400 | 16.49 | 0.03 | 0.40 | 0.60 | 1 |
| 16IL 0.45 ISO IC908 | 9.52 | 0.450 | 16.49 | 0.02 | 0.40 | 0.80 | 1 |
| 16IL 0.50 ISO IC908 | 9.52 | 0.500 | 16.49 | 0.04 | 0.60 | 0.60 | 1 |
| 16IR 0.50 ISO IC08 | 9.52 | 0.500 | 16.49 | 0.04 | 0.60 | 0.60 | 1 |
| 16IR 0.50 ISO IC250 | 9.52 | 0.500 | 16.49 | 0.04 | 0.60 | 0.60 | 1 |
| 16IR 0.50 ISO IC908 | 9.52 | 0.500 | 16.49 | 0.04 | 0.60 | 0.60 | 1 |
| 16IR 0.60 ISO IC908 | 9.52 | 0.600 | 16.49 | 0.04 | 0.60 | 0.60 | 1 |
| 16IR 0.70 ISO IC250 | 9.52 | 0.700 | 16.49 | 0.05 | 0.60 | 0.60 | 1 |
| 16IR 0.70 ISO IC908 | 9.52 | 0.700 | 16.49 | 0.05 | 0.60 | 0.60 | 1 |
| 16IL 0.75 ISO IC908 | 9.52 | 0.750 | 16.49 | 0.06 | 0.60 | 1.00 | 1 |
Примечания:
- Система идентификации пластин — см. стр. 714
- Допуск: класс 6H
- Техническая информация и подробные данные резания — см. стр. 809-825
- (1) С прессованным ломателем стружки
- (2) Многозубая
- (3) Шаг резьбы
- (4) Количество зубьев на углу
Информацию об инструментах см. на стр.: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
