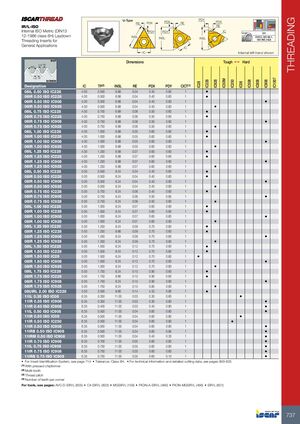

Резьба
Резьбовые пластины внутреннего профиля ISO (U-типа)
Резьбовые пластины для нарезания метрической внутренней резьбы ISO (DIN 13 12-1986 класс 6H) для общего применения
Стандарты: DIN 13, ISO 68-1, ISO 965 (1&2)
| Обозначение | IC | TP(3) | INSL | RE | PDX | PDY | CICT(4) |
|---|---|---|---|---|---|---|---|
| 06IL 0.50 ISO IC228 | 4.00 | 0.500 | 6.88 | 0.04 | 0.40 | 0.60 | 1 |
| 06IR 0.50 ISO IC228 | 4.00 | 0.500 | 6.88 | 0.04 | 0.40 | 0.60 | 1 |
| 06IR 0.50 ISO IC908 | 4.00 | 0.500 | 6.88 | 0.04 | 0.40 | 0.60 | 1 |
| 06IR 0.50 ISO IC928 | 4.00 | 0.500 | 6.88 | 0.04 | 0.40 | 0.60 | 1 |
| 06IL 0.75 ISO IC228 | 4.00 | 0.750 | 6.88 | 0.06 | 0.50 | 0.60 | 1 |
| 06IR 0.75 ISO IC228 | 4.00 | 0.750 | 6.88 | 0.06 | 0.50 | 0.60 | 1 |
| 06IR 0.75 ISO IC908 | 4.00 | 0.750 | 6.88 | 0.06 | 0.50 | 0.60 | 1 |
| 06IR 0.75 ISO IC928 | 4.00 | 0.750 | 6.88 | 0.06 | 0.50 | 0.60 | 1 |
| 06IL 1.00 ISO IC228 | 4.00 | 1.000 | 6.88 | 0.05 | 0.60 | 0.60 | 1 |
| 06IR 1.00 ISO IC228 | 4.00 | 1.000 | 6.88 | 0.05 | 0.60 | 0.60 | 1 |
| 06IR 1.00 ISO IC908 | 4.00 | 1.000 | 6.88 | 0.05 | 0.60 | 0.60 | 1 |
| 06IR 1.00 ISO IC928 | 4.00 | 1.000 | 6.88 | 0.05 | 0.60 | 0.60 | 1 |
| 06IL 1.25 ISO IC228 | 4.00 | 1.250 | 6.88 | 0.07 | 0.60 | 0.60 | 1 |
| 06IR 1.25 ISO IC228 | 4.00 | 1.250 | 6.88 | 0.07 | 0.60 | 0.60 | 1 |
| 06IR 1.25 ISO IC908 | 4.00 | 1.250 | 6.88 | 0.07 | 0.60 | 0.60 | 1 |
| 06IR 1.25 ISO IC928 | 4.00 | 1.250 | 6.88 | 0.07 | 0.60 | 0.60 | 1 |
| 08IL 0.50 ISO IC228 | 5.00 | 0.500 | 8.24 | 0.04 | 0.40 | 0.60 | 1 |
| 08IR 0.50 ISO IC228 | 5.00 | 0.500 | 8.24 | 0.04 | 0.40 | 0.60 | 1 |
| 08IR 0.50 ISO IC908 | 5.00 | 0.500 | 8.24 | 0.04 | 0.40 | 0.60 | 1 |
| 08IR 0.50 ISO IC928 | 5.00 | 0.500 | 8.24 | 0.04 | 0.40 | 0.60 | 1 |
| 08IR 0.75 ISO IC228 | 5.00 | 0.750 | 8.24 | 0.06 | 0.45 | 0.60 | 1 |
| 08IR 0.75 ISO IC908 | 5.00 | 0.750 | 8.24 | 0.06 | 0.50 | 0.60 | 1 |
| 08IR 0.75 ISO IC928 | 5.00 | 0.750 | 8.24 | 0.06 | 0.50 | 0.60 | 1 |
| 08IL 1.00 ISO IC228 | 5.00 | 1.000 | 8.24 | 0.07 | 0.60 | 0.60 | 1 |
| 08IR 1.00 ISO IC228 | 5.00 | 1.000 | 8.24 | 0.07 | 0.60 | 0.60 | 1 |
| 08IR 1.00 ISO IC908 | 5.00 | 1.000 | 8.24 | 0.07 | 0.60 | 0.60 | 1 |
| 08IR 1.00 ISO IC928 | 5.00 | 1.000 | 8.24 | 0.07 | 0.60 | 0.60 | 1 |
| 08IL 1.25 ISO IC228 | 5.00 | 1.250 | 8.24 | 0.09 | 0.70 | 0.60 | 1 |
| 08IR 1.25 ISO IC228 | 5.00 | 1.250 | 8.66 | 0.09 | 0.70 | 0.60 | 1 |
| 08IR 1.25 ISO IC908 | 5.00 | 1.250 | 8.24 | 0.09 | 0.70 | 0.60 | 1 |
| 08IR 1.25 ISO IC928 | 5.00 | 1.250 | 8.24 | 0.09 | 0.70 | 0.60 | 1 |
| 08IL 1.50 ISO IC228 | 5.00 | 1.500 | 8.24 | 0.12 | 0.70 | 0.60 | 1 |
| 08IR 1.50 ISO IC228 | 5.00 | 1.500 | 8.24 | 0.12 | 0.70 | 0.60 | 1 |
| 08IR 1.50 ISO IC28 | 5.00 | 1.500 | 8.24 | 0.12 | 0.70 | 0.60 | 1 |
| 08IR 1.50 ISO IC908 | 5.00 | 1.500 | 8.24 | 0.12 | 0.70 | 0.60 | 1 |
| 08IR 1.50 ISO IC928 | 5.00 | 1.500 | 8.24 | 0.12 | 0.70 | 0.60 | 1 |
| 08IL 1.75 ISO IC228 | 5.00 | 1.750 | 8.24 | 0.15 | 0.90 | 0.60 | 1 |
| 08IR 1.75 ISO IC228 | 5.00 | 1.750 | 8.66 | 0.15 | 0.90 | 0.60 | 1 |
| 08IR 1.75 ISO IC908 | 5.00 | 1.750 | 8.24 | 0.15 | 0.90 | 0.60 | 1 |
| 08IR 1.75 ISO IC928 | 5.00 | 1.750 | 8.24 | 0.15 | 0.85 | 0.60 | 1 |
| 08UIRL 2.00 ISO IC228 | 5.00 | 2.000 | 8.66 | 0.14 | 4.33 | 0.80 | 1 |
| 11IL 0.35 ISO IC08 | 6.35 | 0.350 | 11.00 | 0.03 | 0.30 | 0.60 | 1 |
| 11IR 0.35 ISO IC908 | 6.35 | 0.350 | 11.00 | 0.03 | 0.30 | 0.60 | 1 |
| 11IR 0.40 ISO IC908 | 6.35 | 0.400 | 11.00 | 0.03 | 0.40 | 0.80 | 1 |
| 11IL 0.50 ISO IC908 | 6.35 | 0.500 | 11.00 | 0.04 | 0.60 | 0.80 | 1 |
| 11IR 0.50 ISO IC08 | 6.35 | 0.500 | 11.00 | 0.04 | 0.60 | 0.80 | 1 |
| 11IR 0.50 ISO IC250 | 6.35 | 0.500 | 11.00 | 0.04 | 0.60 | 0.80 | 1 |
| 11IR 0.50 ISO IC908 | 6.35 | 0.500 | 11.00 | 0.04 | 0.60 | 0.80 | 1 |
| 11IRB 0.50 ISO IC908 | 6.35 | 0.500 | 11.00 | 0.04 | 0.60 | 0.80 | 1 |
| 11IRM 0.50 ISO IC908 | 6.35 | 0.500 | 11.00 | 0.04 | 0.40 | 0.30 | 1 |
| 11IR 0.70 ISO IC908 | 6.35 | 0.700 | 11.00 | 0.05 | 0.60 | 0.60 | 1 |
| 11IL 0.75 ISO IC908 | 6.35 | 0.750 | 11.00 | 0.05 | 0.60 | 0.60 | 1 |
| 11IR 0.75 ISO IC908 | 6.35 | 0.750 | 11.00 | 0.05 | 0.60 | 0.60 | 1 |
| 11IRB 0.75 ISO IC908 | 6.35 | 0.750 | 11.00 | 0.05 | 0.60 | 0.10 | 1 |
Примечания:
- Система идентификации пластин — см. стр. 714
- Допуск: класс 6H
- Техническая информация и подробные данные резания — см. стр. 809-825
- (1) С прессованным ломателем стружки
- (2) Многозубая
- (3) Шаг резьбы
- (4) Количество зубьев на углу
Информацию об инструментах см. на стр.: AVC-D-SIR/L (805) • C#-SIR/L (803) • MGSIR/L (156) • PICIN-A-SIR/L (466) • PICIN-MGSIR/L (466) • SIR/L (801)
