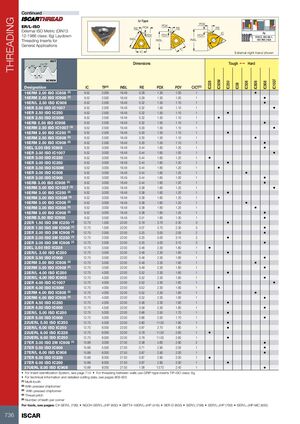

РЕЗЬБОНАРЕЗАНИЕ
ER/L-ISO (продолжение)
Резьбовые пластины для наружной метрической резьбы ISO (DIN13 12-1986 класс: 6g) с укладкой для общего применения
| Обозначение | IC | TP(4) | INSL | RE | PDX | PDY | CICT(5) |
|---|---|---|---|---|---|---|---|
| 16ERM 2.00 ISO IC808 (2) | 9.52 | 2.000 | 16.49 | 0.28 | 1.30 | 1.00 | 1 |
| 16ERM 2.00 ISO IC908 (3) | 9.52 | 2.000 | 16.49 | 0.28 | 1.30 | 1.00 | 1 |
| 16ER/L 2.50 ISO IC908 | 9.52 | 2.500 | 16.49 | 0.32 | 1.50 | 1.10 | 1 |
| 16ER 2.50 ISO IC1007 | 9.52 | 2.500 | 16.49 | 0.32 | 1.50 | 1.10 | 1 |
| 16ER 2.50 ISO IC250 | 9.52 | 2.500 | 16.49 | 0.32 | 1.50 | 1.10 | 1 |
| 16ER 2.50 ISO IC50M | 9.52 | 2.500 | 16.49 | 0.32 | 1.50 | 1.10 | 1 |
| 16ERB 2.50 ISO IC908 | 9.52 | 2.500 | 16.49 | 0.32 | 1.50 | 1.10 | 1 |
| 16ERM 2.50 ISO IC1007 (2) | 9.52 | 2.500 | 16.49 | 0.30 | 1.50 | 1.10 | 1 |
| 16ERM 2.50 ISO IC250 (2) | 9.52 | 2.500 | 16.49 | 0.30 | 1.50 | 1.10 | 1 |
| 16ERM 2.50 ISO IC808 (2) | 9.52 | 2.500 | 16.49 | 0.30 | 1.50 | 1.10 | 1 |
| 16ERM 2.50 ISO IC908 (2) | 9.52 | 2.500 | 16.49 | 0.30 | 1.50 | 1.10 | 1 |
| 16EL 3.00 ISO IC908 | 9.52 | 3.000 | 16.49 | 0.44 | 1.60 | 1.20 | 1 |
| 16ER 3.00 ISO IC1007 | 9.52 | 3.000 | 16.49 | 0.44 | 1.65 | 1.00 | 1 |
| 16ER 3.00 ISO IC228 | 9.52 | 3.000 | 16.49 | 0.44 | 1.60 | 1.20 | 1 |
| 16ER 3.00 ISO IC250 | 9.52 | 3.000 | 16.49 | 0.44 | 1.60 | 1.20 | 1 |
| 16ER 3.00 ISO IC50M | 9.52 | 3.000 | 16.49 | 0.44 | 1.60 | 1.20 | 1 |
| 16ER 3.00 ISO IC508 | 9.52 | 3.000 | 16.49 | 0.44 | 1.60 | 1.20 | 1 |
| 16ER 3.00 ISO IC908 | 9.52 | 3.000 | 16.49 | 0.44 | 1.65 | 1.00 | 1 |
| 16ERB 3.00 ISO IC908 (2) | 9.52 | 3.000 | 16.49 | 0.44 | 1.60 | 1.20 | 1 |
| 16ERM 3.00 ISO IC1007 (2) | 9.52 | 3.000 | 16.49 | 0.38 | 1.60 | 1.20 | 1 |
| 16ERM 3.00 ISO IC250 (2) | 9.52 | 3.000 | 16.49 | 0.38 | 1.60 | 1.20 | 1 |
| 16ERM 3.00 ISO IC50M (2) | 9.52 | 3.000 | 16.49 | 0.38 | 1.60 | 1.20 | 1 |
| 16ERM 3.00 ISO IC508 (2) | 9.52 | 3.000 | 16.49 | 0.38 | 1.60 | 1.20 | 1 |
| 16ERM 3.00 ISO IC808 (2) | 9.52 | 3.000 | 16.49 | 0.38 | 1.60 | 1.20 | 1 |
| 16ERM 3.00 ISO IC908 (2) | 9.52 | 3.000 | 16.49 | 0.38 | 1.60 | 1.20 | 1 |
| 16ERB 3.50 ISO IC908 | 9.52 | 3.500 | 16.49 | 0.51 | 1.60 | 1.30 | 1 |
| 22ER 1.50 ISO 3M IC250 (1) | 12.70 | 1.500 | 22.00 | 0.18 | 3.70 | 2.30 | 3 |
| 22ER 1.50 ISO 3M IC908 (1) | 12.70 | 1.500 | 22.00 | 0.07 | 3.70 | 2.30 | 3 |
| 22ER 2.00 ISO 2M IC908 (1) | 12.70 | 2.000 | 22.00 | 0.25 | 3.00 | 2.00 | 2 |
| 22ER 2.00 ISO 3M IC250 (1) | 12.70 | 2.000 | 22.00 | 0.25 | 5.00 | 3.10 | 3 |
| 22ER 2.00 ISO 3M IC908 (1) | 12.70 | 2.000 | 22.00 | 0.25 | 5.00 | 3.10 | 3 |
| 22EL 3.50 ISO IC228 | 12.70 | 3.500 | 22.00 | 0.46 | 2.30 | 1.60 | 1 |
| 22ER/L 3.50 ISO IC250 | 12.70 | 3.500 | 22.00 | 0.46 | 2.30 | 1.60 | 1 |
| 22ER 3.50 ISO IC908 | 12.70 | 3.500 | 22.00 | 0.46 | 2.30 | 1.60 | 1 |
| 22ERM 3.50 ISO IC808 (2) | 12.70 | 3.500 | 22.00 | 0.48 | 2.30 | 1.60 | 1 |
| 22ERM 3.50 ISO IC908 (2) | 12.70 | 3.500 | 22.00 | 0.48 | 2.30 | 1.60 | 1 |
| 22ER/L 4.00 ISO IC250 | 12.70 | 4.000 | 22.00 | 0.52 | 2.30 | 1.60 | 1 |
| 22ER/L 4.00 ISO IC908 | 12.70 | 4.000 | 22.00 | 0.52 | 2.30 | 1.60 | 1 |
| 22ER 4.00 ISO IC1007 | 12.70 | 4.000 | 22.00 | 0.52 | 2.30 | 1.60 | 1 |
| 22ER 4.00 ISO IC50M | 12.70 | 4.000 | 22.00 | 0.52 | 2.30 | 1.60 | 1 |
| 22ERM 4.00 ISO IC808 (2) | 12.70 | 4.000 | 22.00 | 0.52 | 2.30 | 1.60 | 1 |
| 22ERM 4.00 ISO IC908 (2) | 12.70 | 4.000 | 22.00 | 0.52 | 2.30 | 1.60 | 1 |
| 22ER 4.50 ISO IC250 | 12.70 | 4.500 | 22.00 | 0.58 | 2.30 | 1.60 | 1 |
| 22ER 4.50 ISO IC908 | 12.70 | 4.500 | 22.00 | 0.58 | 2.30 | 1.60 | 1 |
| 22ER/L 5.00 ISO IC250 | 12.70 | 5.000 | 22.00 | 0.66 | 2.50 | 1.70 | 1 |
| 22ER 5.00 ISO IC908 | 12.70 | 5.000 | 22.00 | 0.66 | 2.50 | 1.70 | 1 |
| 22UERL 5.50 ISO IC250 | 12.70 | 5.500 | 22.00 | 0.80 | 11.00 | 1.90 | 1 |
| 22ER/L 6.00 ISO IC250 | 12.70 | 6.000 | 22.00 | 0.87 | 2.70 | 1.80 | 1 |
| 22UERL 6.00 ISO IC228 | 12.70 | 6.000 | 22.00 | 0.78 | 11.00 | 2.60 | 1 |
| 22UERL 6.00 ISO IC250 | 12.70 | 6.000 | 22.00 | 0.78 | 11.00 | 2.60 | 1 |
| 27ER 3.00 ISO 2M IC908 (1) | 15.88 | 3.000 | 27.50 | 0.38 | 4.60 | 2.90 | 2 |
| 27ER 5.50 ISO IC908 | 15.88 | 5.500 | 27.50 | 0.71 | 2.90 | 2.00 | 1 |
| 27ER/L 6.00 ISO IC908 | 15.88 | 6.000 | 27.50 | 0.87 | 2.90 | 2.00 | 1 |
| 27ER 6.00 ISO IC228 | 15.88 | 6.000 | 27.50 | 0.87 | 2.90 | 2.00 | 1 |
| 27ER 6.00 ISO IC250 | 15.88 | 6.000 | 27.50 | 0.87 | 2.90 | 2.00 | 1 |
| 27UERL 8.00 ISO IC908 | 15.88 | 8.000 | 27.50 | 1.08 | 13.70 | 2.40 | 1 |
Система идентификации пластин см. на странице 714. Для нарезания резьбы в стеснённых условиях используйте пластины типа GRIP. Класс TIP-ISO: 6g
Техническая информация и данные резания см. на страницах 809-825
(1) Многозубая
(2) С прессованной лункообразователем
(3) С прессованной лункообразователем
(4) Шаг резьбы
(5) Количество зубьев в углу
Инструменты см. на страницах: C#-SER/L (799) • NQCH-SER/L-JHP (800) • SBTT#-16ER/L-JHP (418) • SER-D (800) • SER/L (798) • SER/L-JHP (799) • SER/L-JHP-MC (800)
